S2-Y1540
101
4
Chapter 4 2 Paper Feed Section

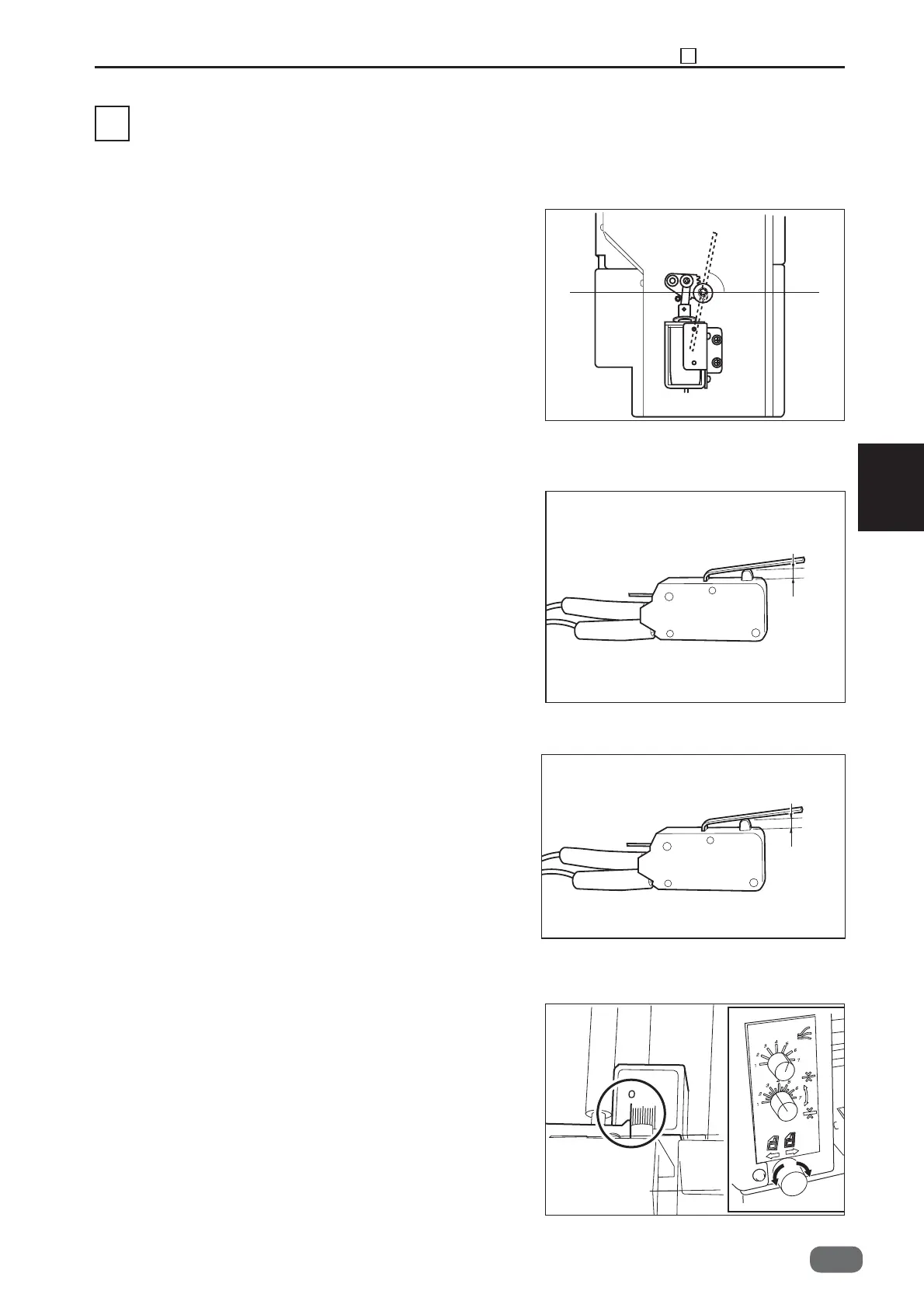

(1)Shutter solenoid adjustment
(2)Elevator upper limit switch adjustment
-0
2 Paper Feed Section
1. Adjust the bracket installation position, so that the
throttle opening “a” is at 80-90 degrees when the
solenoid is turned ON.
2. Install the bracket parallel so that the actuator moves
smoothly.
3. After the adjustment, perform the operation check in
HELP Mode: 19.
D
"a"
"a"
1. Adjust “a” to be 0.5 mm while the switch is turned ON.
(3)Elevator lower limit switch
1. Make an adjustment so that the switch is turned ON
when the distance between paper feed plate and MAX
comes to 100 mm or more.
2. Adjust “a” to be 0.5 mm while the switch is turned ON.
3. After the adjustment, perform the operation check in
HELP Mode:11, 17.
(4)Paper Feed Unit 0 Adjustment
1. Adjust the indicator to “0”.
2. After the adjustment, check the parallel of the right
margin.
(HELP Mode : 19→P.143)
(HELP Mode : 11→P.137)
(HELP Mode : 17→P.141)
