Duplo DC-616 Service Manual

171

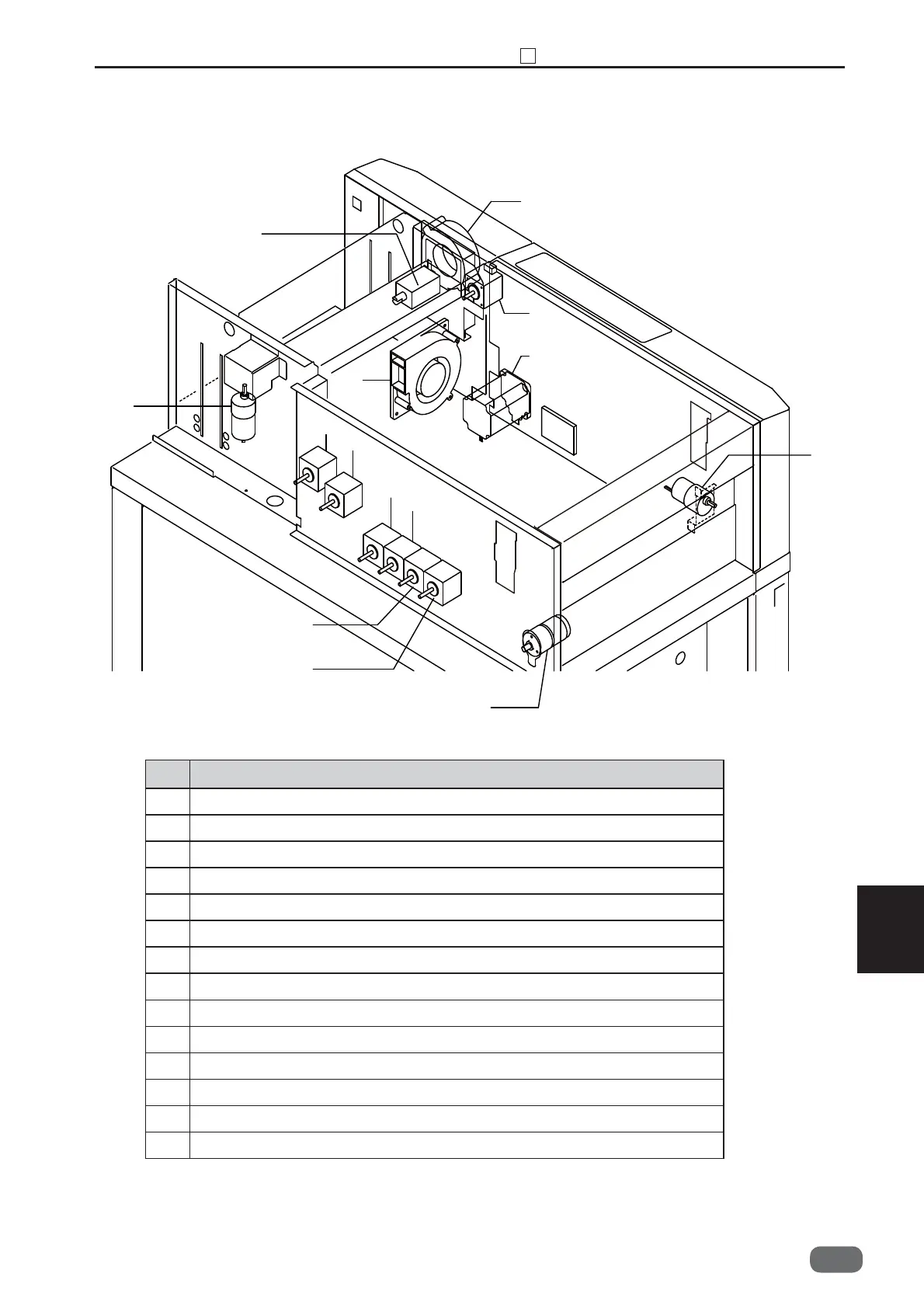

Chapter 8 1 Position and Function of Electronic Parts
8
S2-Y1540
No. Part Name
1 Main Motor Driver
2 Feed Motor
3 Suction fan
4 Shutter Solenoid
5 Blow out fan
6 Elevator Motor
7 Margin Slitter 1 Position Motor
8 Margin Slitter 2 Position Motor
9 Center Slitter 3 Position Motor
10 Center Slitter 4 Position Motor
11 Center Slitter 5 Position Motor
12 Center Slitter 6 Position Motor
13 Creaser Motor
14 Creaser Lower Blade Motor
4. Motors, Fan,Solenoid
-0
3
2
14
1
7
6
5
13
8
9
10
11
12
4
