Chapter 3 1 Exterior

S2-Y1540

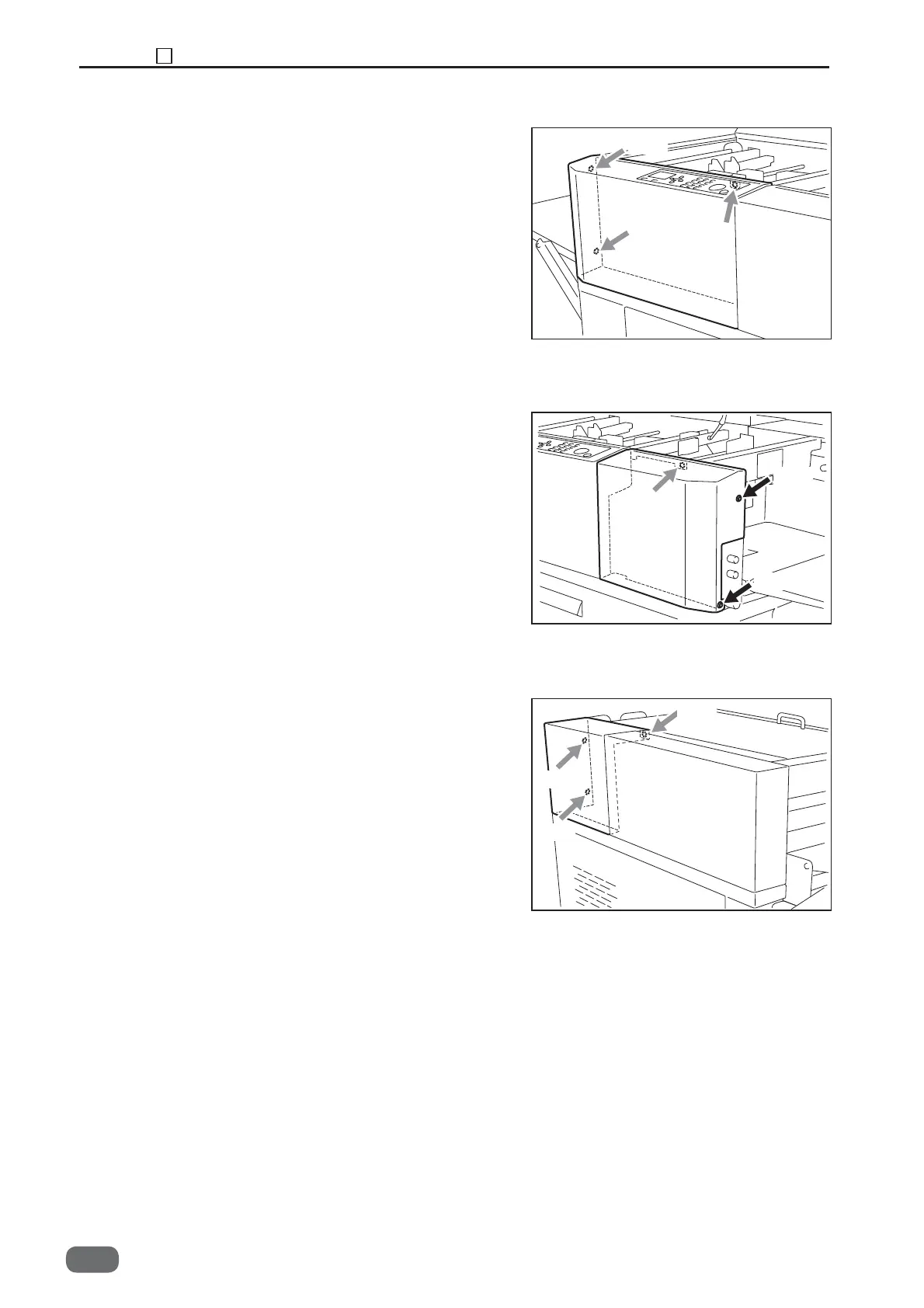

(1) Removing the Cover F (on control panel side)

(2) Removing the Cover F2 Unit (on control panel side)

(3) Removing the Cover R2

1. Open the top cover.

2. Take out the three screws, and remove the cover F.

1. Open the top cover.

2. Remove the cover F.

3. Take out the three screws, and remove the cover

F2 unit.

1. Open the top cover.

2. Take out the three screws, and remove the cover R2

unit.

Screw

-0
