Duplo DC-616 - Removing the Elevator Lower Limit Switch; Removing the Elevator Upper Limit Switch

62
Chapter 3 2 Paper Feed Section
S2-Y1540

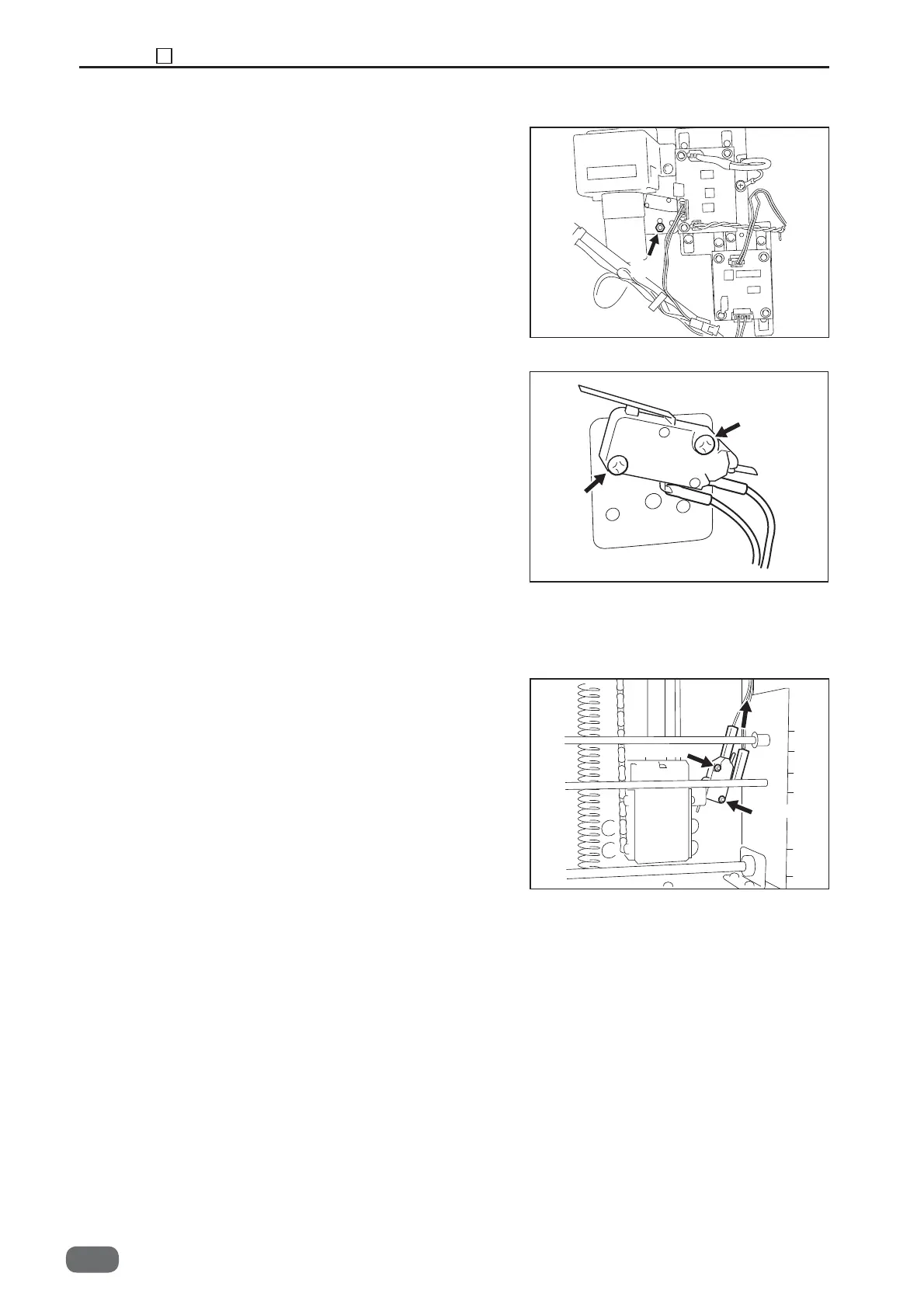

(8) Removing the Elevator Upper Limit Switch
4. Take out the two screws, and remove the elevator
upper limit switch.
* Adjustment required at the time of installation
1. Remove the cover R2.
2. Disconnect the connector.
3. Take out the nut, and remove the elevator upper
limit switch with the bracket.
(See→P.52)
(9) Removing the Elevator Lower Limit Switch
1. Remove the cover F2 unit.
2. Disconnect the two faston terminals.
3. Take out the two screws, and remove the elevator
lower limit switch.
* Adjustment required at the time of installation
(See→P.52)
Screw
Screw
Nut
Screw
Screw
-0
(See→P.100)
(See→P.100)
