Chapter 3 8 Creaser Section
3

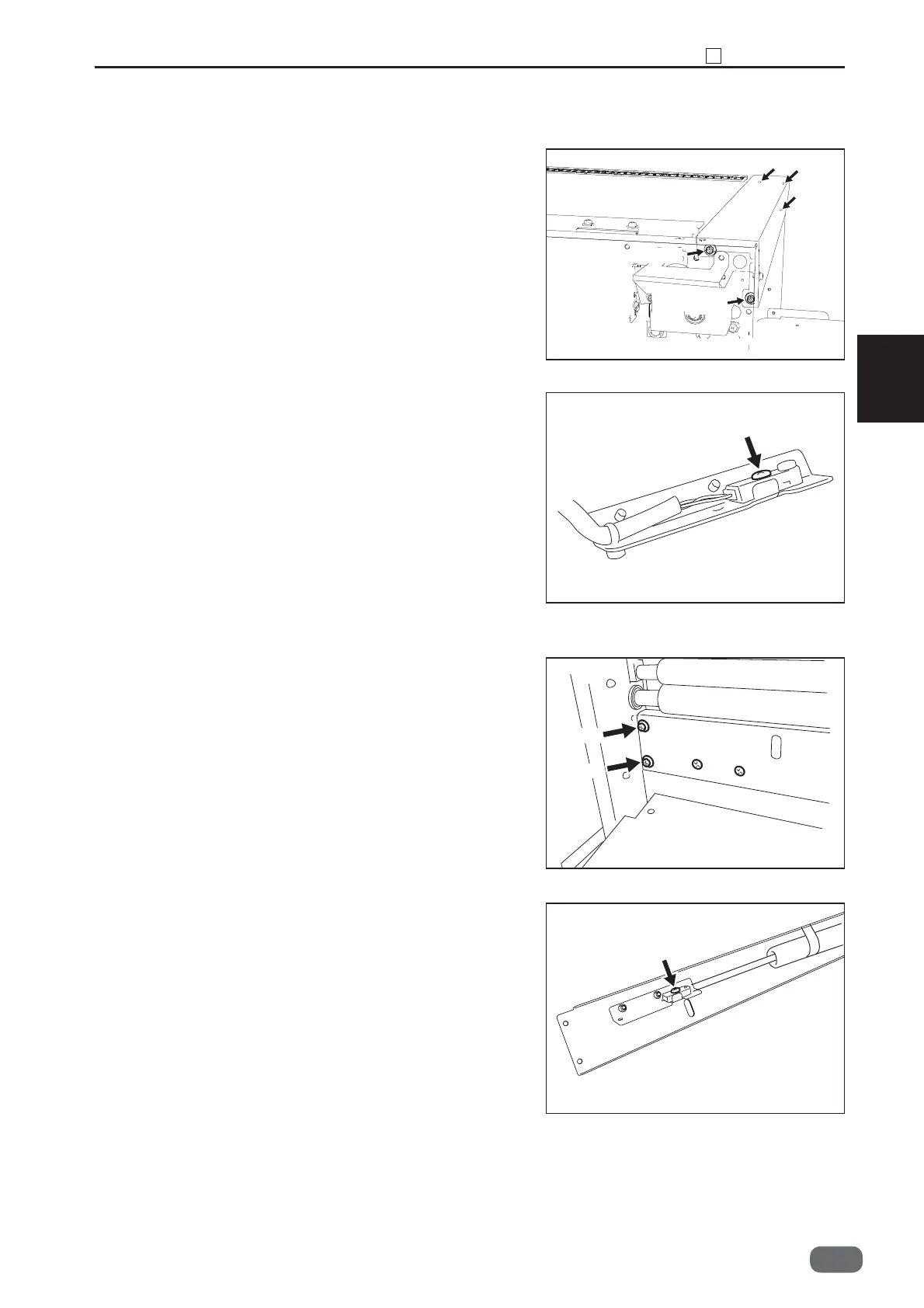

S2-Y1540
● Photo-emission sensor
(7) Removing the PPS4
1. Remove the covers F, R.
2. Take out the fi ve screws, and remove the
reinforcing plate.
3. Take out one screw, and remove the sensor.
* After the installation, perform the sensor operation
check in HELP Mode: 11.
1. Take out the four screws, and remove the plate.
2. Take out one screw, and remove the sensor.
* After the installation, perform the sensor operation
check in HELP Mode: 11.
• Photo-detecting sensor
(See→P.53)
(See→P.52)
(HELP Mode : 11→P.137)
(HELP Mode : 11→P.137)
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
-0
To Next Page
