85

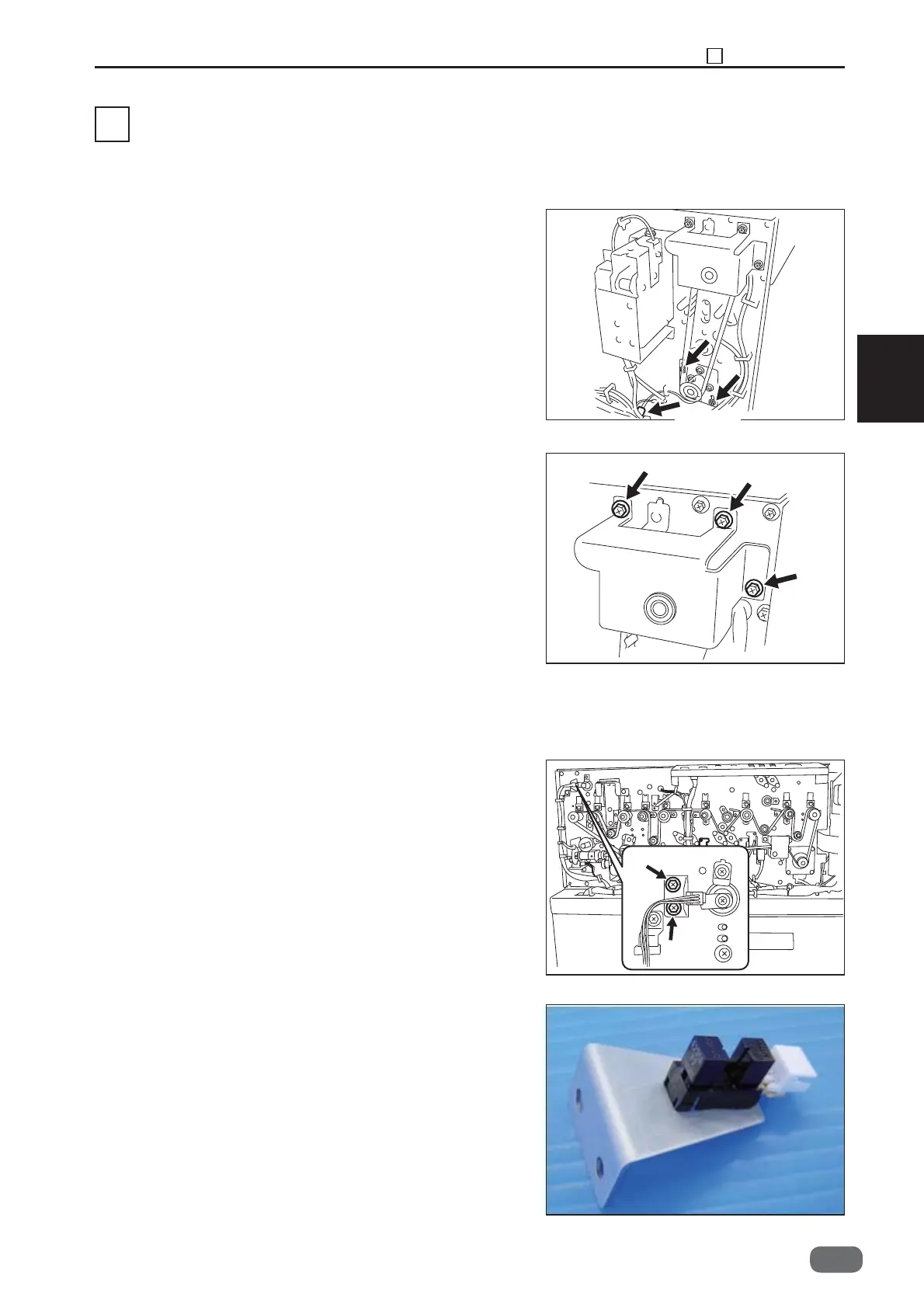

Chapter 3 8 Creaser Section
3
S2-Y1540
1. Remove the covers F, R.
2. Disconnect the motor connector.
3. Loosen the motor fi xing screws, and remove the
timing belt.
8 Creaser Section
(1) Removing the Creaser Motor and the Belt
(2) Removing the Creaser Home Position Sensor
4. Take out the two screws, and draw out the motor
with the bracket.
5. Take out the three screws, and remove the gear
cover and timing belt.
* Adjustment required at the time of installation
1. Remove the cover F.
2. Take out the two screws, and remove the photo
micro sensor with the bracket.
(See→P.53)
(See→P.52)
3. Remove the sensor from the bracket.
* Adjustment required at the time of installation
(See→P.107)
(See→P.52)
(See→P.106)
Connector
Screw
Screw
Screw
Screw
-0
To Next Page
