Duplo DC-616 - Center Slitter Section Adjustments

S2-Y1540
104
Chapter 4 5 Center Slitter Section
-0
5 Center Slitter Section
1. Check the sensor operation in HELP Mode:11, 26.
2. Feed the test paper through the machine applying the
Service person JOB.
3. Adjust the home position setting in HELP Mode: 49.

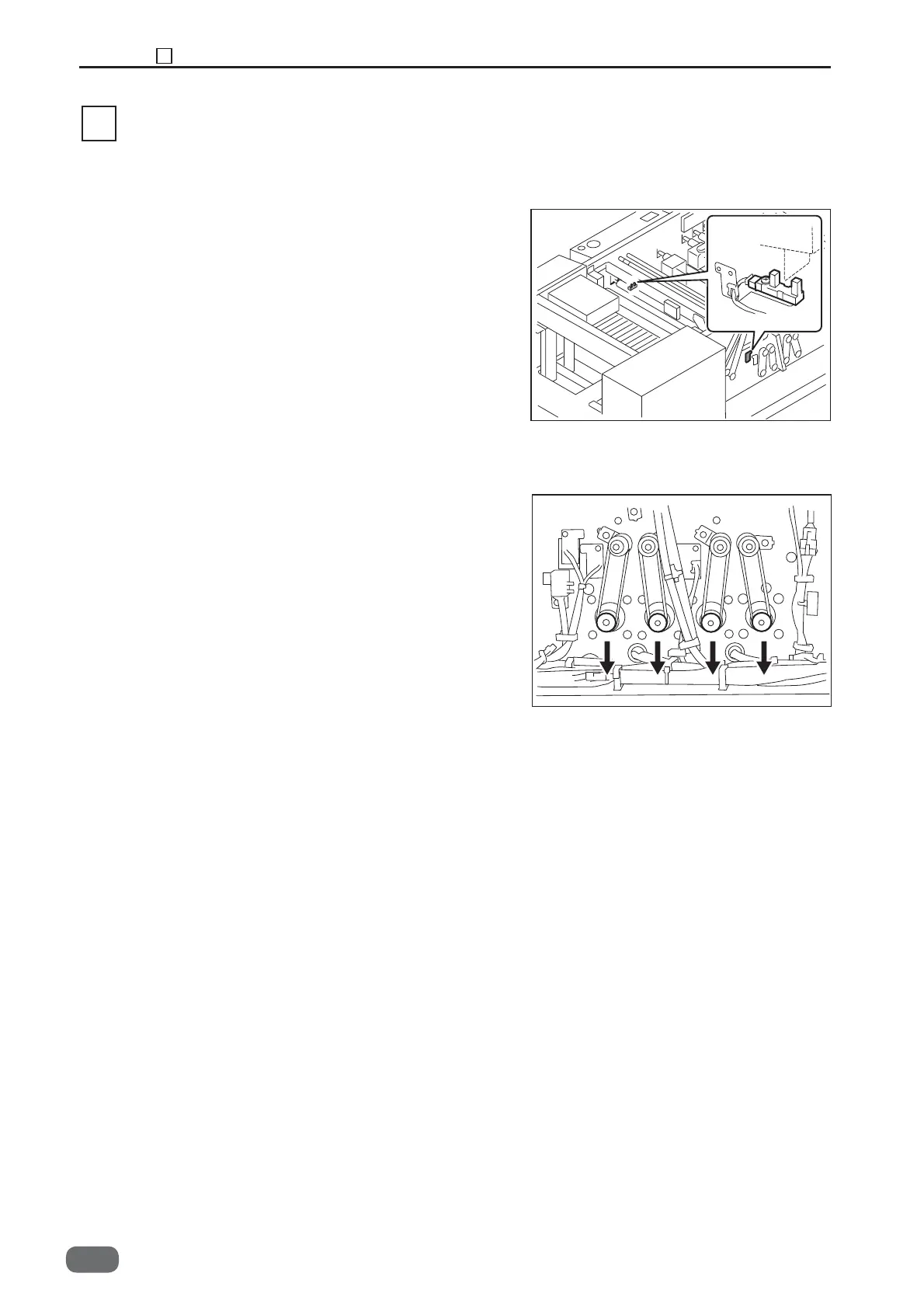

(1)Center slitter home position sensor adjustment
1. Adjust the belt tension to 3 mm/10N by moving the
motor installation position.
2. Check the operation in HELP Mode: 26.
(2)Slitter position motor and belt adjustment
(HELP Mode : 26→P.145)
(HELP Mode : 49→P.156)
(HELP Mode : 11→P.137)
(HELP Mode : 26→P.145)
