Duplo DC-616 Service Manual

170

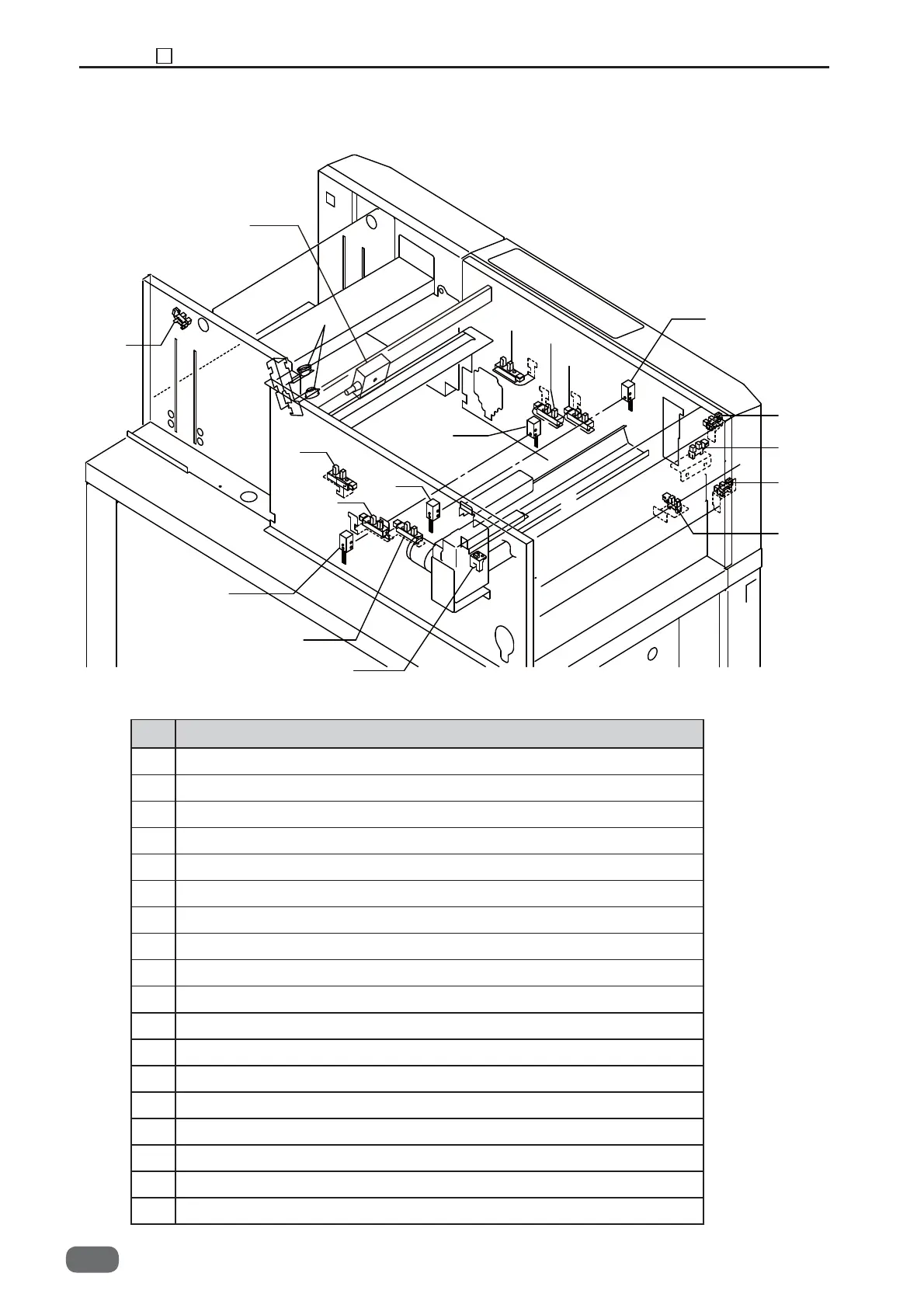

Chapter 8 1 Position and Function of Electronic Parts
S2-Y1540
3. Sensors
No. Part Name
1 CCD
2 Ultrasonic Sensor
3 Paper Level Sensor
4 Margin Slitter 1 Home Position Sensor
5 Margin Slitter 2 Home Position Sensor
6 Margin Jam Detecting Sensor
7 Gutter ON / OFF sensor
8 Center Slitter 5 Home Position Sensor
9 Cutter Home Position Sensor
10 Creaser Lower Blade Encoder Sensor
11 Creaser Lower Blade Home Position Sensor
12 Creaser Upper Blade Home Position Sensor
13 Gutter ON / OFF sensor
14 Margin Jam Detecting Sensor
15 Center Slitter 6 Home Position Sensor
16 Center Slitter 4 Home Position Sensor
17 Center Slitter 2 Home Position Sensor
18 Perforation Unit Detecting Sensor
-0
3
8
2
13
5
7
11
10
9
14
15
12
18
6
4
16
17
1
