65
Chapter 3 2 Paper Feed Section
3
S2-Y1540

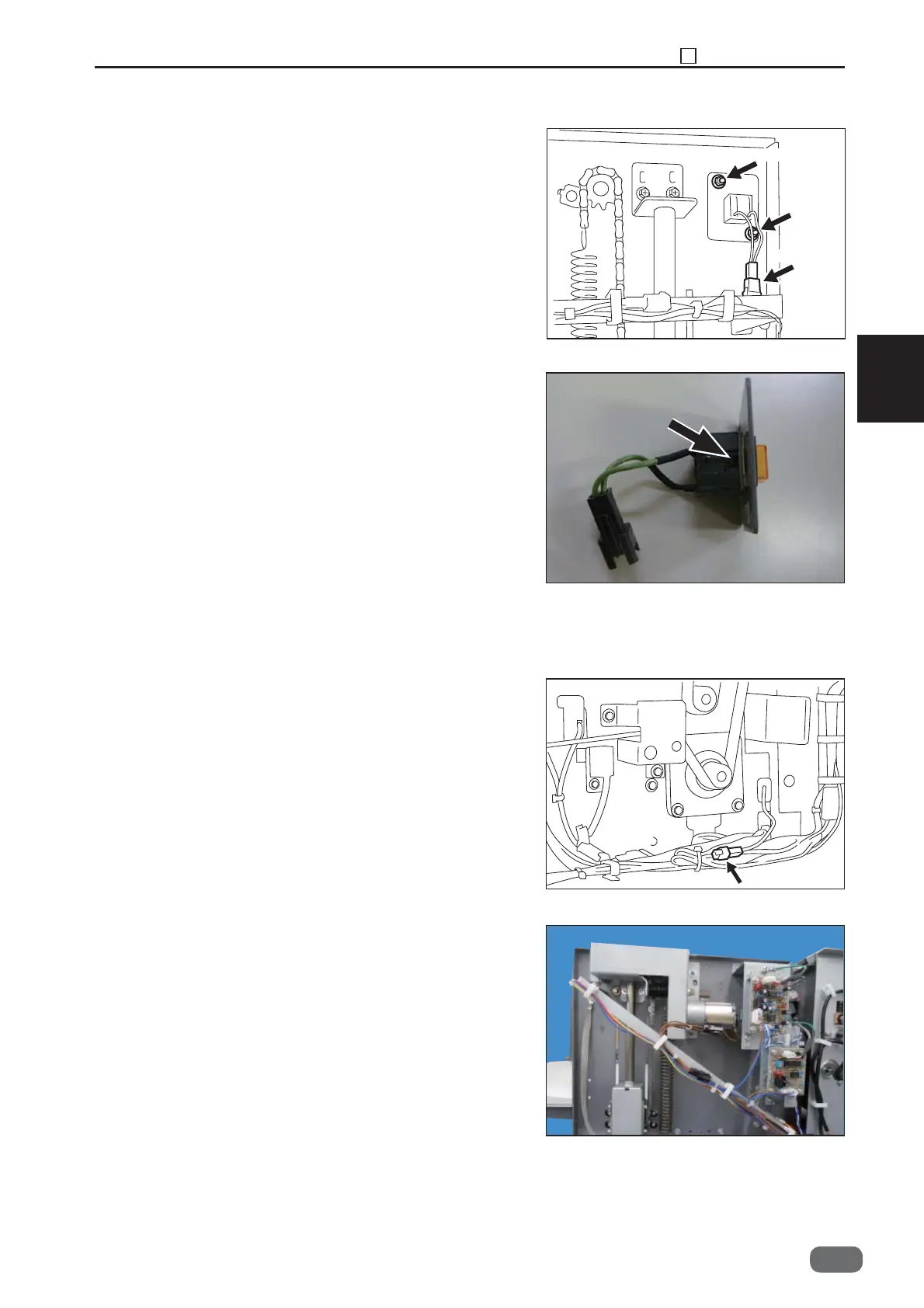

(12) Removing the Elevator Down Switch
1. Remove the cover F2 unit.
2. Disconnect the switch connector.
3. Take out the two screws, and remove the elevator
down switch with the angle.
(SeeP.52)
4. Push the part indicated by the arrow, and remove
the elevator down switch.
(13) Removing the Paper Feed Unit
1. Open the top cover.
2. Remove the cover F2 unit and cover R2.
3. Disconnect the following connectors.
• Elevator down switch
• Elevator lower limit switch
• Suction fan
• Feed motor
• Shutter solenoid
• Blow fan
• Paper level sensor
• Elevator motor
• Optional ultrasonic sensor
* After the installation, perform the sensor and motor
operation check in HELP Mode: 11, 15, 17, 18, 19.
(SeeP.52)
(SeeP.65)
(SeeP.62)
(SeeP.58)
(SeeP.58)
(SeeP.57)
(SeeP.66)
(SeeP.61)
(SeeP.63)
(SeeP.67)
Screw
Screw
Connector
-0
(HELP Mode : 11P.137)
(HELP Mode : 15P.139)
(HELP Mode : 17P.141)
(HELP Mode : 18P.142)
(HELP Mode : 19P.143)
