86
Chapter 3 8 Creaser Section
S2-Y1540

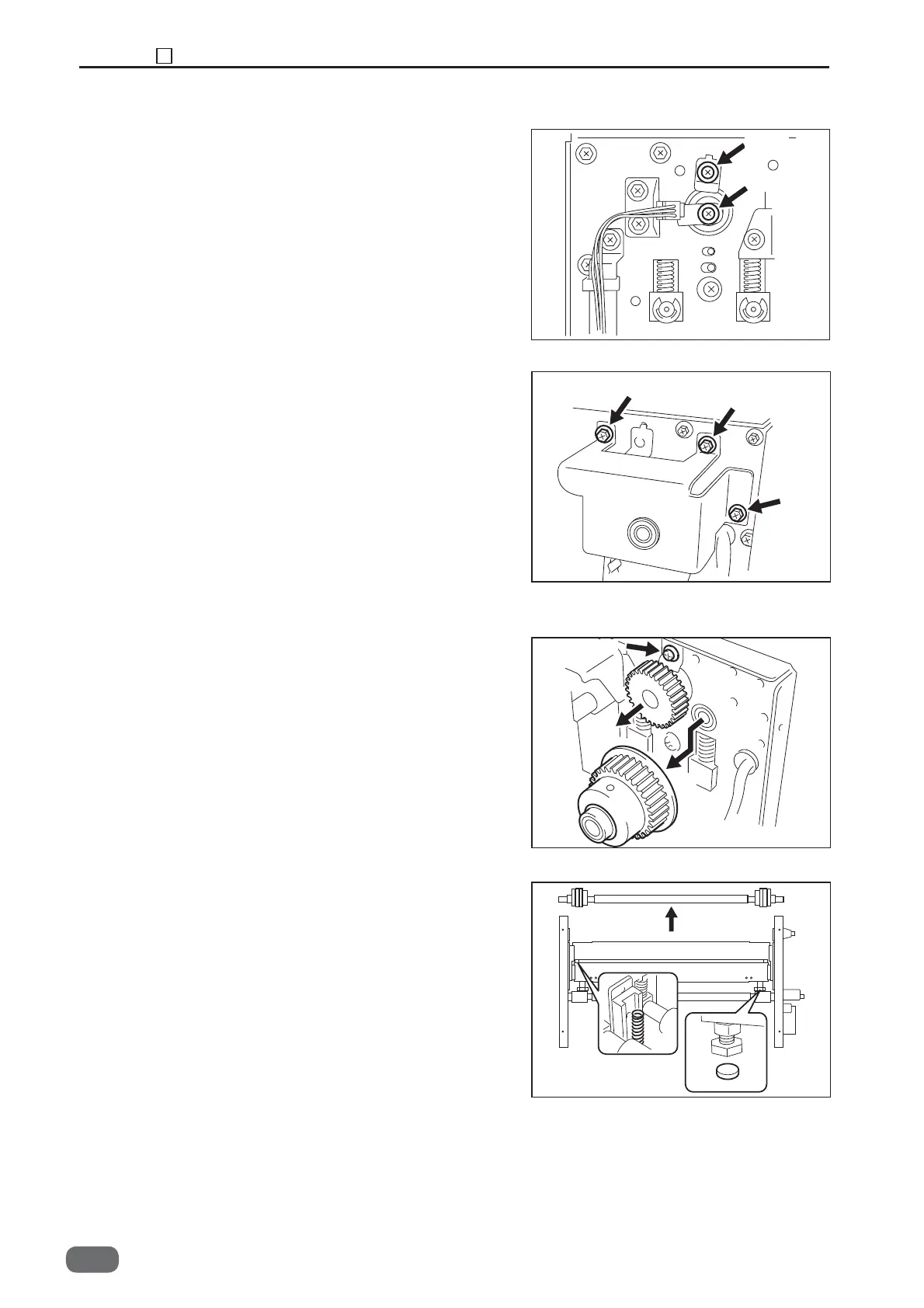

1. Remove the covers F, R.
2. Take out one screw, and remove the sensor plate.
3. Take out one screw, and remove the bearing presser.
(3) Removing the Crease Blade
4. Take out the three screws, and remove the gear
cover.
5. Remove the belt and the pulley unit.
6. Take out one screw, and remove the eccentric gear.
7. Take out one screw, and remove the bearing presser.
8. Draw out the eccentric shaft and the two bearings.
9. Draw out the upper blade.
10. Draw out the two springs and the lower blade.
* Apply the grease to the slider metal at the time of
installation.
* Adjustment required at the time of installation
(See→P.52)
(See→P.53)
(See→P.104)
Screw
Screw
Screw
Screw
Screw
Screw
-0
To Next Page
