76
Chapter 3 6 Center Slitter Section
S2-Y1540

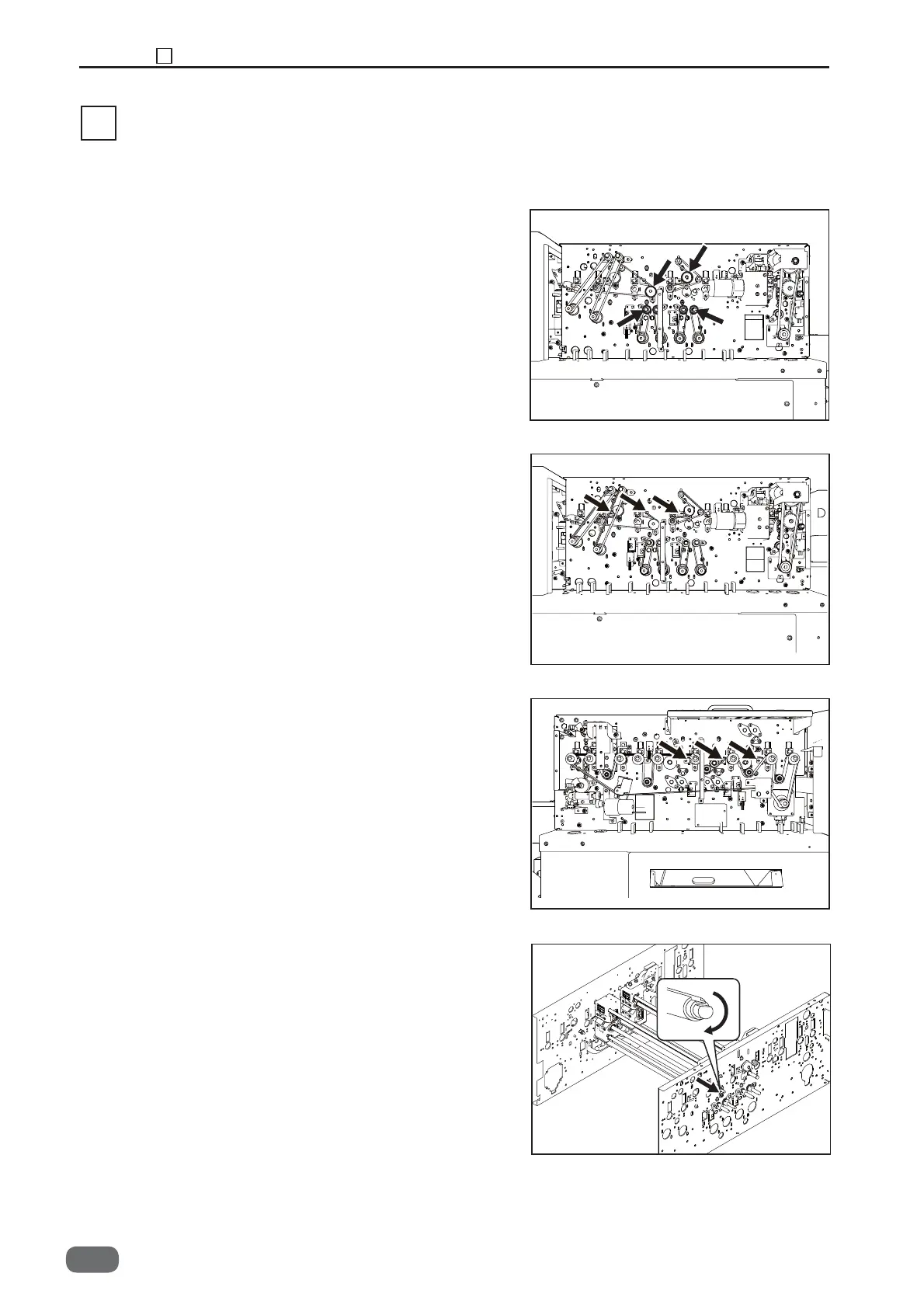

(1) Removing the Center Slitter Module
1. Open the top cover.
2. Remove the cover R and cover F.
3. Remove the two slitter driving shafts and the timing
belts.
* Do not drop the key placed in the groove.
(See→P.53)
(See→P.52)
6. Take out the screw, and remove the bearing
presser.
7. Pull out the slitter driving shaft with its groove
facing down.
6 Center Slitter Section
4. Take out the screw, and remove the upper guide
plate. (three places)
5. Take out the screw, and remove the lower guide
plate. (three places)
-0
To Next Page
