Chapter 6 4 Slitter Blade Intersection Correction
S2-Y1540
4 Slitter Blade Intersection Correction
REFERENCE
REFERENCE
-0
When a heavy weight document is jammed in the margin slitter area and the center slitter area, if
you pull out the document by force, the slitter upper blade and the lower blade may intersect each
other. Also, when the document cannot be slit or conveyed, the blades may have intersected.
In this case, follow the procedures below to correct the upper blade or lower blade position.

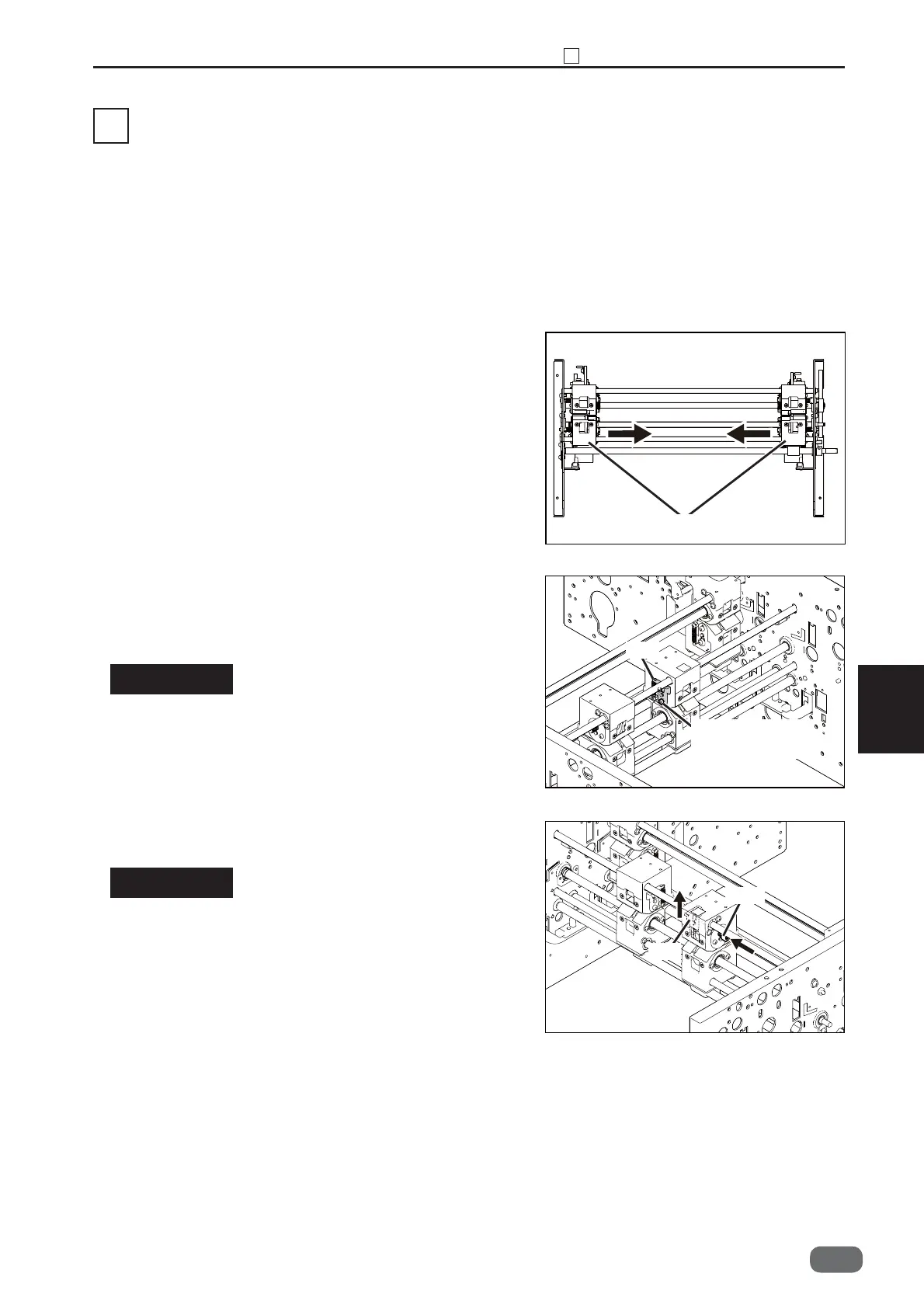

● In Case of Center Slitter 3 (Example)
1. Move the center slitters to the center of the module.
2. Loosen the hexagon socket head cap screw
securing the lid of the slitter with the intersecting
blade. (The right fi gure shows the slitter 3.)
• Do not remove the screw of the lid securing the
eccentric pin.
• Do not loosen the hexagon socket head cap screw
excessively. The screw will drop off.
• Margin slitters 1 and 2:
Slide the lid of the lower blade downward.
• Center slitters 3 and 4:
Slide the lid of the upper blade upward.
• Center slitters 5 and 6:
Slide the lid of the lower blade downward.
3. Insert the shaft into the hole of the lid while sliding
the lid upward.
Slitter
Hexagon socket
head cap screw
Shaft
Lid
Lid
