68
Chapter 3 4 CCD Section
S2-Y1540

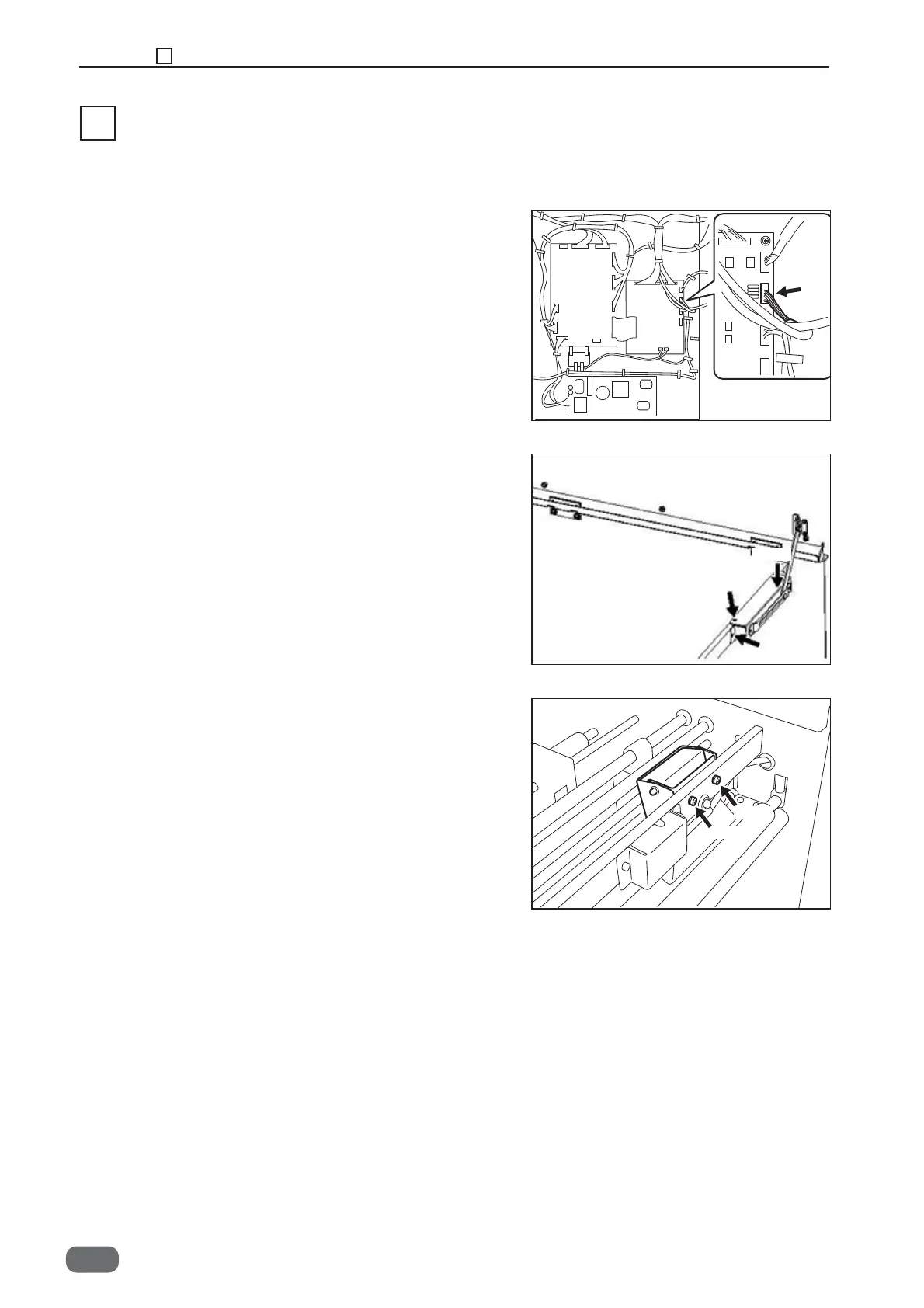

(1) Removing the CCD
3. Open the top cover.
4. Take out the three screws, and remove the hinge of
the top cover.
* Adjustment required at the time of installation
1. Remove the cover (power supply) and cover R.
* Be sure to work with the power cord removed.
2. Disconnect the connector (CN8).
* Make sure that the terminals do not interfere each
other at the time of installation.
(SeeP.53)
5. Take out the two screws, and remove the CCD unit.
(SeeP.102)
4 CCD Section (Option)
CN8
Screw
Screw
Screw
Screw
Screw
-0
