Chapter 3 2 Paper Feed Section
S2-Y1540

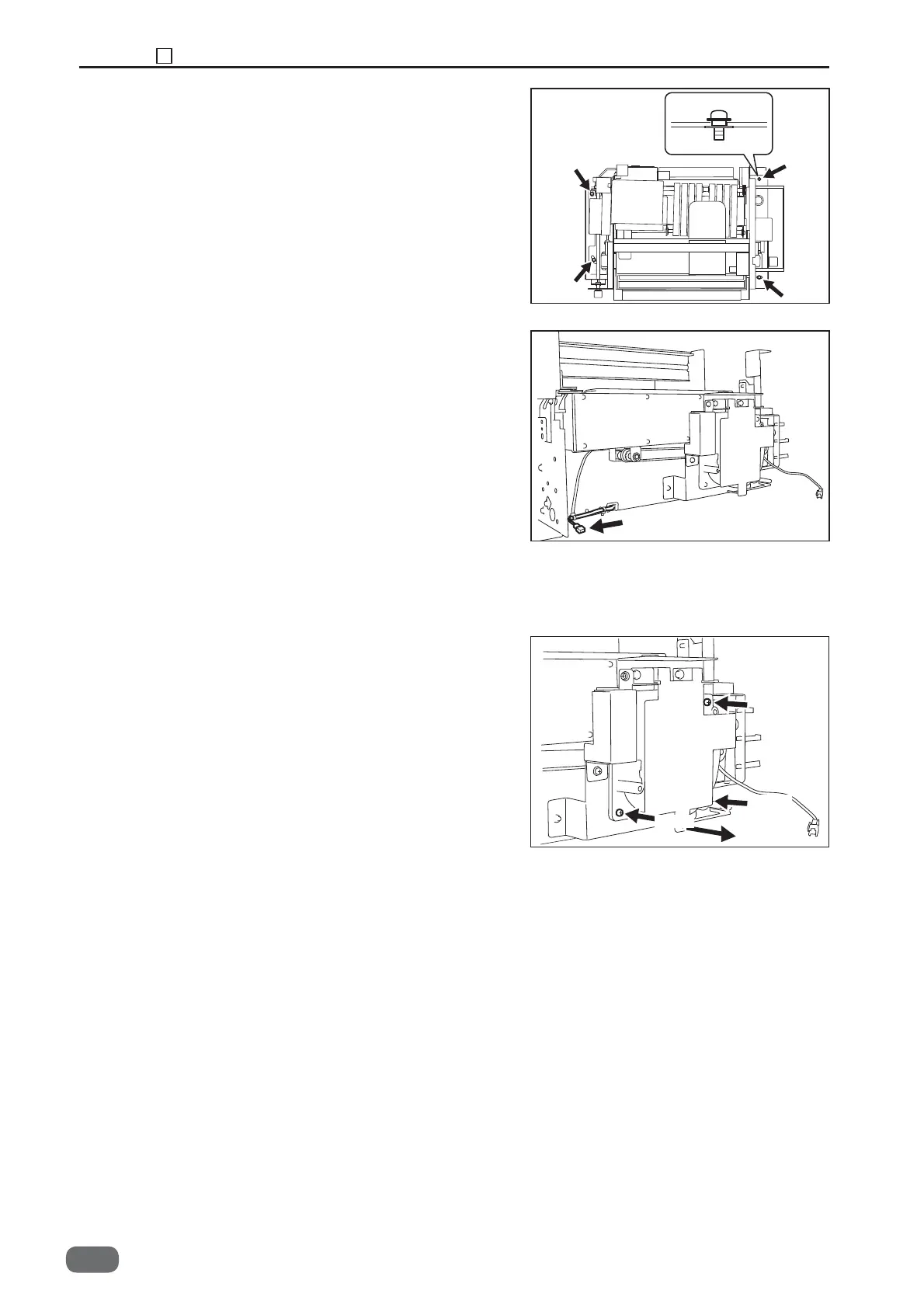

(14) Removing the Blow Fan
4. Take out the four screws securing the paper feed
unit.
* Do not loose the collars and washers.
5. Disconnect the PPS1 connector, and remove the
paper feed unit.
* Adjust the indicator to "0" at the time of installation
1. Remove the paper feed unit.
* Be sure to work with the power cord removed.
2. Take out the three screws, and remove the fan
motor.
* After the installation, perform the fan motor
operation check in HELP Mode: 18.
Screw
Connector
Screw
Screw
Screw
Screw
Screw
Screw
-0
(See→P.101)
(See→P.65)
(HELP Mode : 18→P.142)
