Chapter 1 2 Part Names and Their Functions
S2-Y1540
17

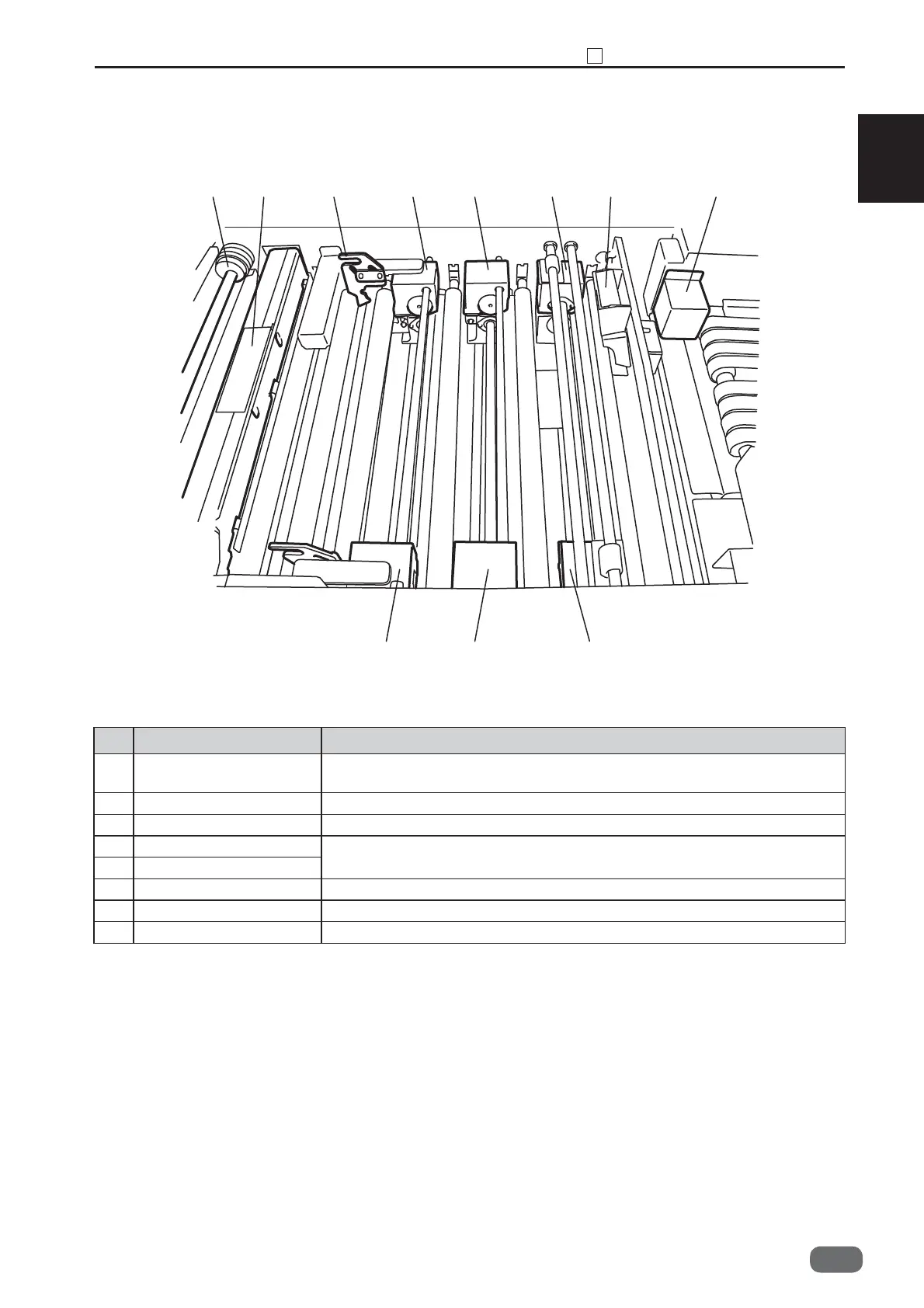

4. Inside
No. Name Function
1 Double feed detection
section
Detects double feed by the ultrasonic sensor. (Option)
2 CCD section Reads out REG Mark/Barcode. (Option)
3 Slitter module 1,2 Cuts side margins parallel to the document feed direction
.
4 Slitter module 3,4
Cuts parallel to the document feed direction
.
5 Slitter module 5,6
6 Gutter defl ector Drops the margin cut off by the slitters into the waste box.
7 Cutter module Cuts perpendicularly to the document feed direction.
8 Creaser module Creases perpendicularly to the document feed direction.
1
8
7
6
5
4
3
2
5
4
3
-0
