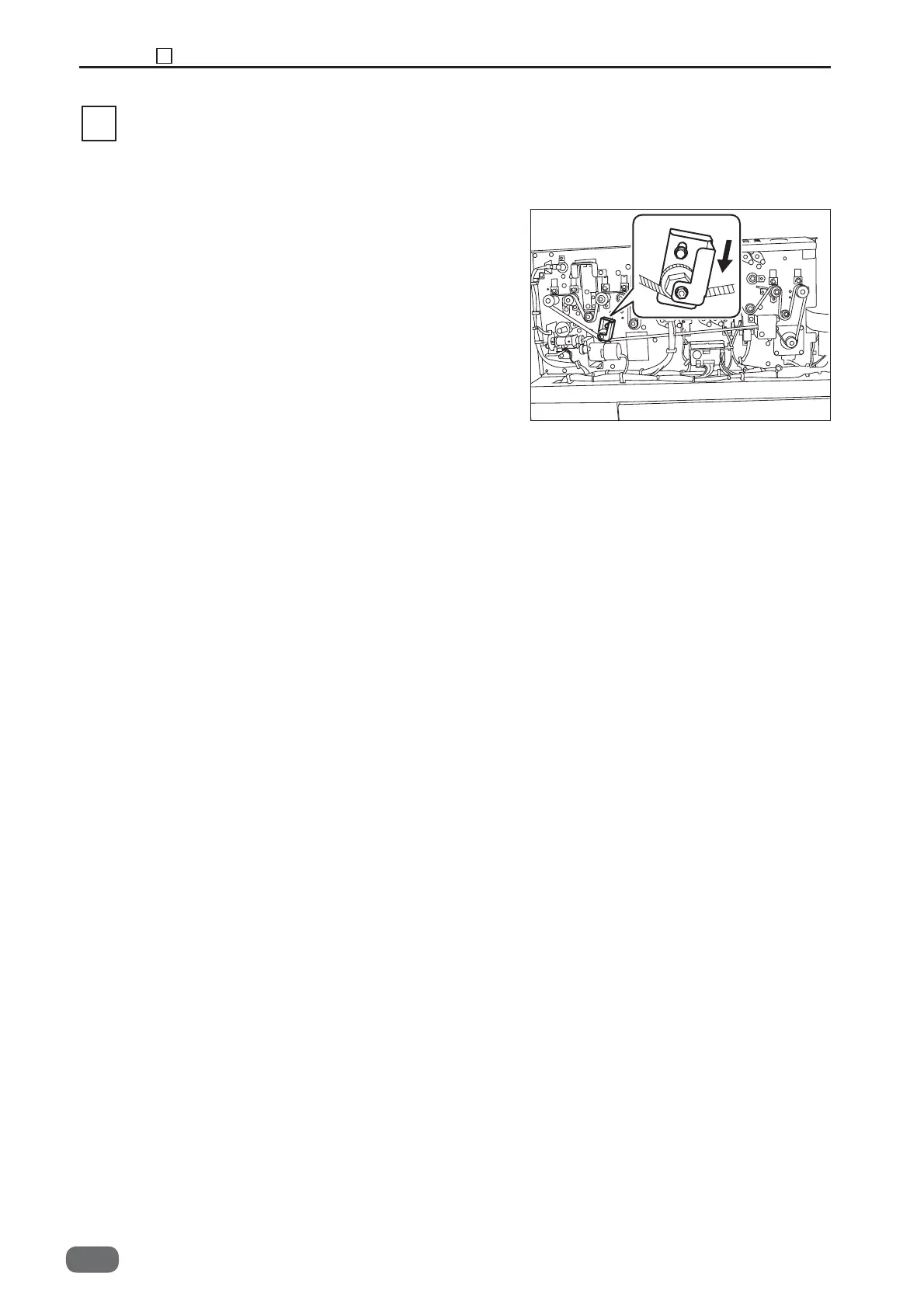

S2-Y1540
108
Chapter 4 8 Main Drive Section
-0
8 Main Drive Section
(1)Main motor drive belt
adjustment
1. Move the pulley bracket installation position, and adjust
the belt tension to 10 mm/10N.
2.
After the adjustment, perform the operation check in
HELP Mode: 41.
(HELP Mode : 41
→
P
.150)
