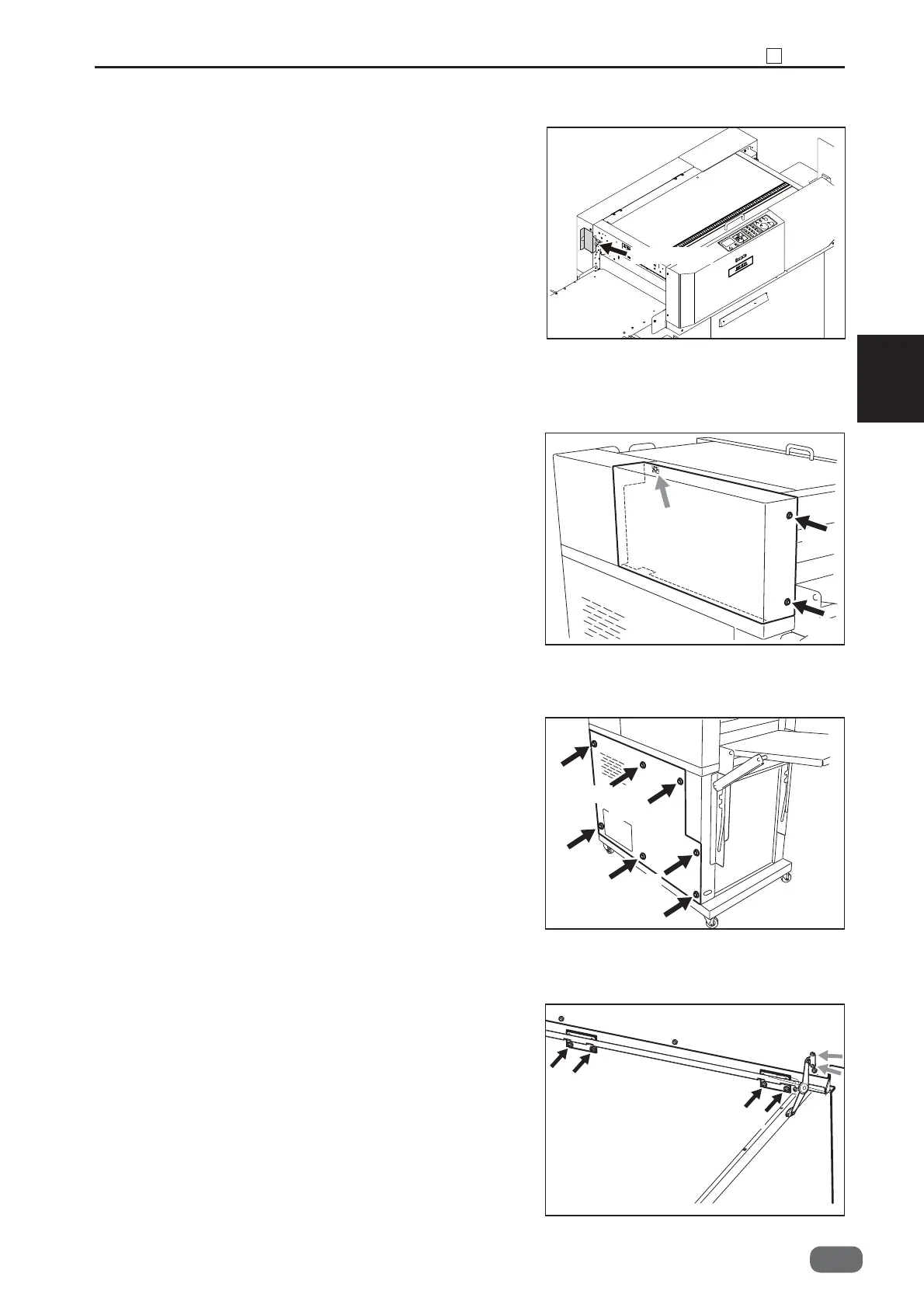

Chapter 3 1 Exterior

S2-Y1540

(5) Removing the Cover R

(6) Removing the Plate

(7) Removing the Top Cover

1. Open the top cover.

2. Take out the three screws, and remove the cover R.

1. Take out the seven screws, and remove the plate.

1. Open the top cover.

2. Take out the two screws and the screw plate, and

remove the hinge.

3. Take out the two screws (each), and remove the

top cover with the hinges (two places).

(4) Removing the Cover

1. Loosen the thumbscrew, and remove the cover.

Screw

-0

Thumbscrew
