Duplo DC-616 Service Manual

63
Chapter 3 2 Paper Feed Section
3
S2-Y1540

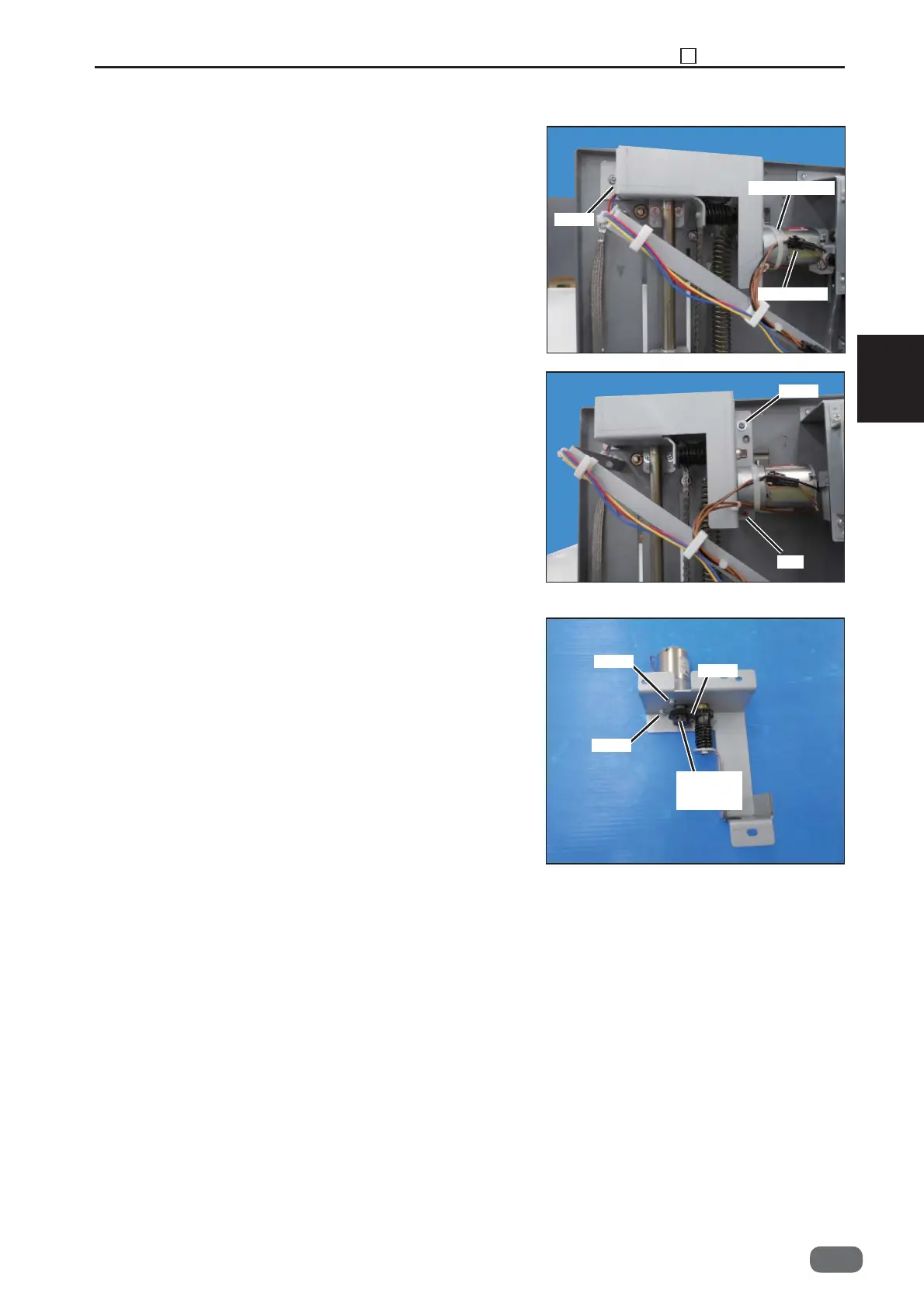

(10) Removing the Elevator Motor
Screw
1. Move the elevator to the upper limit, and turn off the
power.
2. Remove the cover R2.
3. Disconnect the motor connector.
4. Remove the banding band.
(See→P.52)
6. Loosen the hexagon socket set screw, and remove
the gear.
7. Take out the three screws, and remove the motor.
* After the installation, perform the paper feed
elevator operation check in HELP Mode: 17.
Screw
Banding band
Screw
Screw
Screw
5. Take out the two screws and nut, and remove the
motor with the bracket.
Connector
Nut
Hexagon
socket set
screw
-0
(HELP Mode : 17→P.141)
