Chapter 3 2 Paper Feed Section
3
S2-Y1540

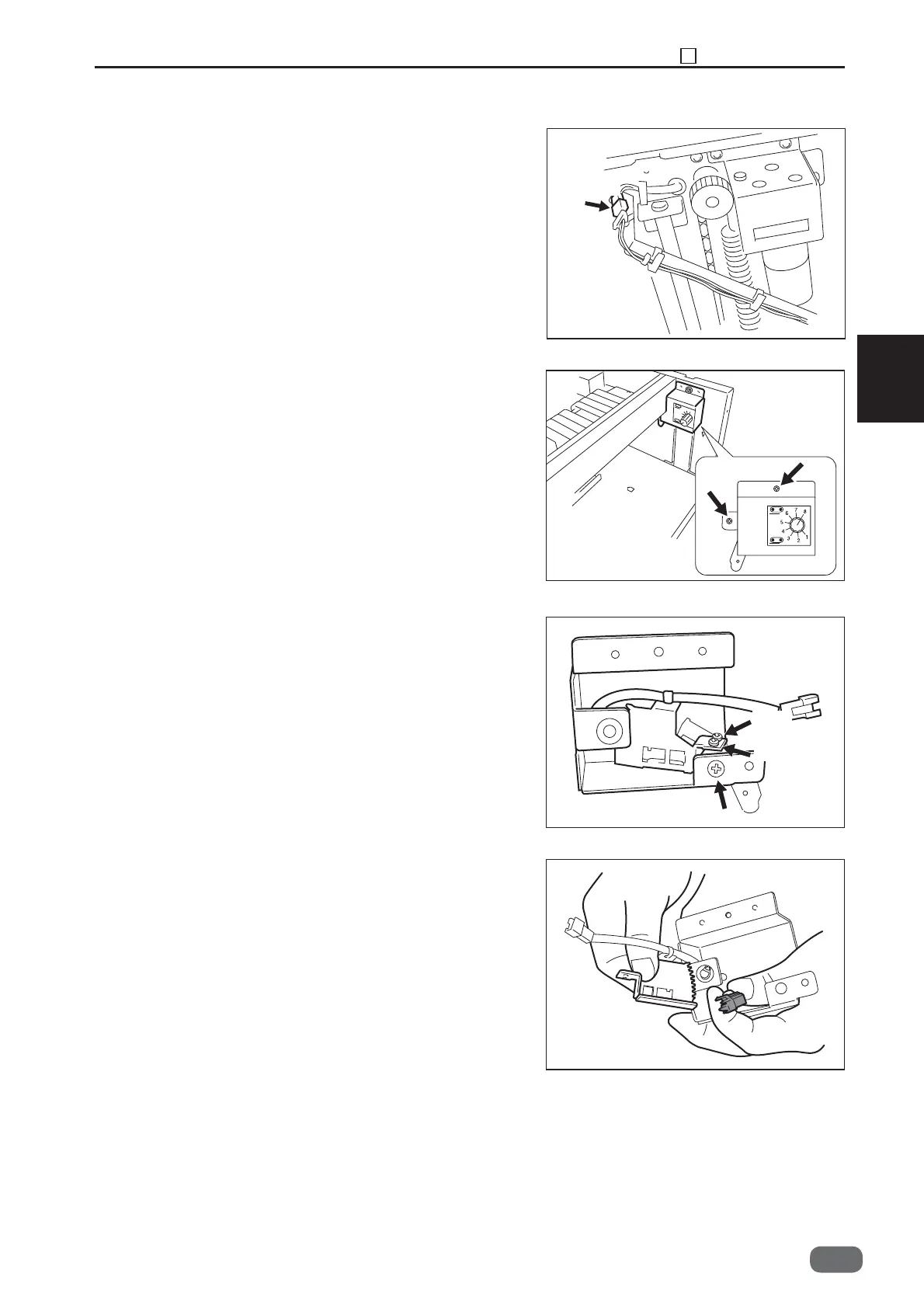

(7) Removing the Paper Level Sensor
1. Remove the cover R2.
2. Disconnect the sensor connector.
(See→P.52)
3. Take out the two screws, and remove the paper
level sensor.
4. Take out one screw, and remove the shaft ASSY.
5. Take out the two screws, and remove the sensor
with the bracket.
6. Remove the sensor from the bracket.
* After the installation, perform the sensor
operation check in HELP Mode: 11.
* Make sure that the pinion shaft and the cable
tube do not interfere with other at the time of
installation.
* Install the sensor bracket at the lowest point
aligned with volume 1.
Connector
Screw
Screw
Screw
Screw
Screw
-0
(HELP Mode : 11→P.137)
