S2-Y1540
106
Chapter 4 7 Creaser Section
-0

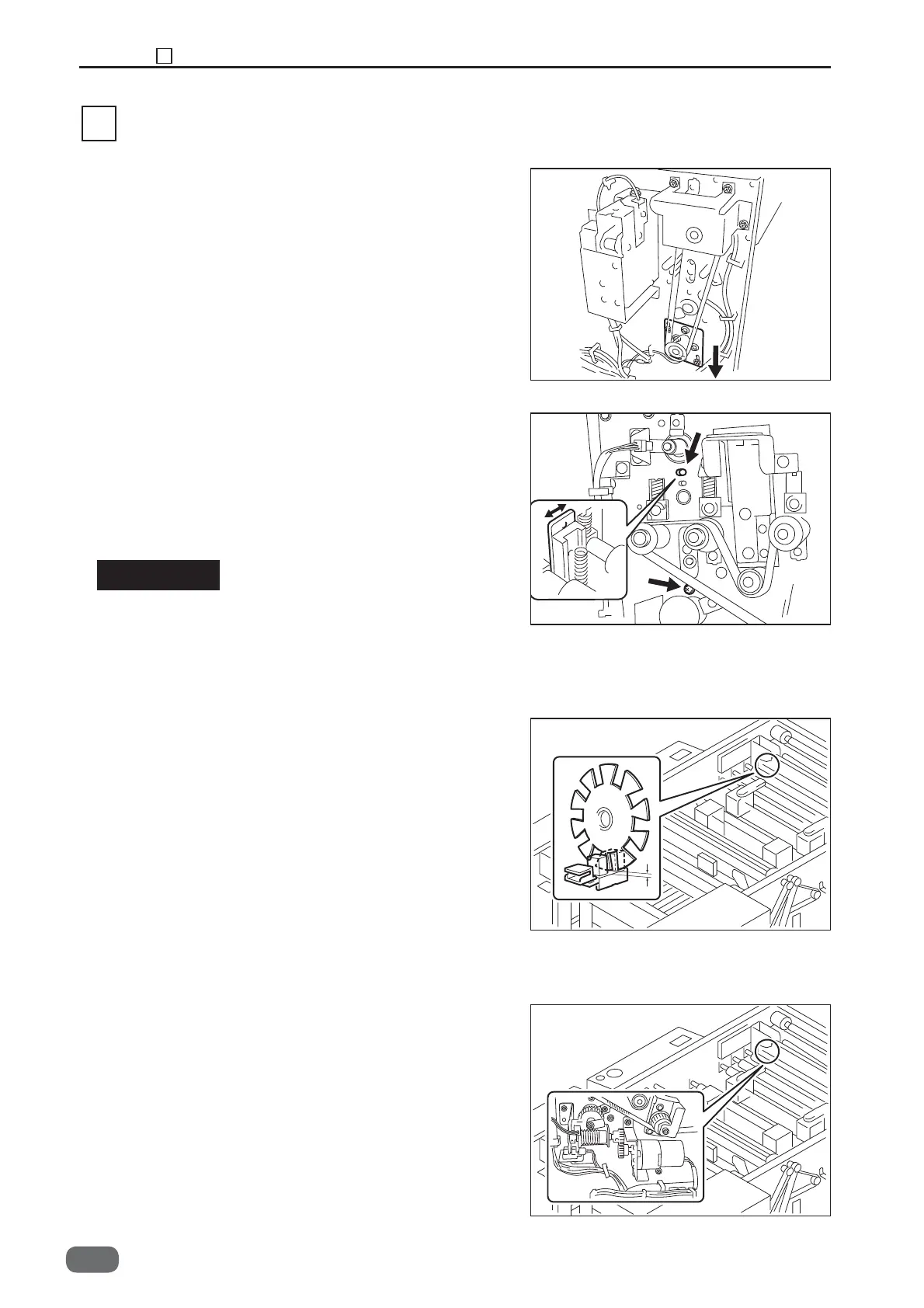

7 Creaser Section
(1)Creaser motor and belt
adjustment
1. Move the motor installation position, and adjust the belt
tension to 6 mm/10N.
2. Perform the operation check in HELP Mode: 27.
3. Feed the test paper through the machine applying the
Service person JOB.
4. Adjust the crease position and depth in HELP Mode: 47,
48.
When the creaser depth is in MAX setting, creaser height
is within 0.4 - 0.45 mm.
REFERENCE
(2)Creaser lower blade encoder sensor adjustment
1. Adjust the distance between the encoder and the sensor
“a” to 2.5 mm.
2. Perform the operation check in HELP Mode: 28.
3. Feed the test paper through the machine applying the
Service person JOB.
4. Adjust the crease position and depth in HELP Mode: 47,
48.
(3)Creaser lower blade home position sensor
1. Perform the operation check in HELP Mode: 28.
2. Feed the test paper through the machine applying the
Service person JOB.
3. Adjust the crease position and depth in HELP Mode: 47,
48.
D
(HELP Mode : 27→P.146)
(HELP Mode : 47→P.154)
(HELP Mode : 28→P.147)
(HELP Mode : 47→P.154)
(HELP Mode : 47→P.154)
(HELP Mode : 48→P.155)
(HELP Mode : 48→P.155)
(HELP Mode : 48→P.155)
(HELP Mode : 28→P.147)
