Duplo DC-616 Service Manual

58
Chapter 3 2 Paper Feed Section
S2-Y1540

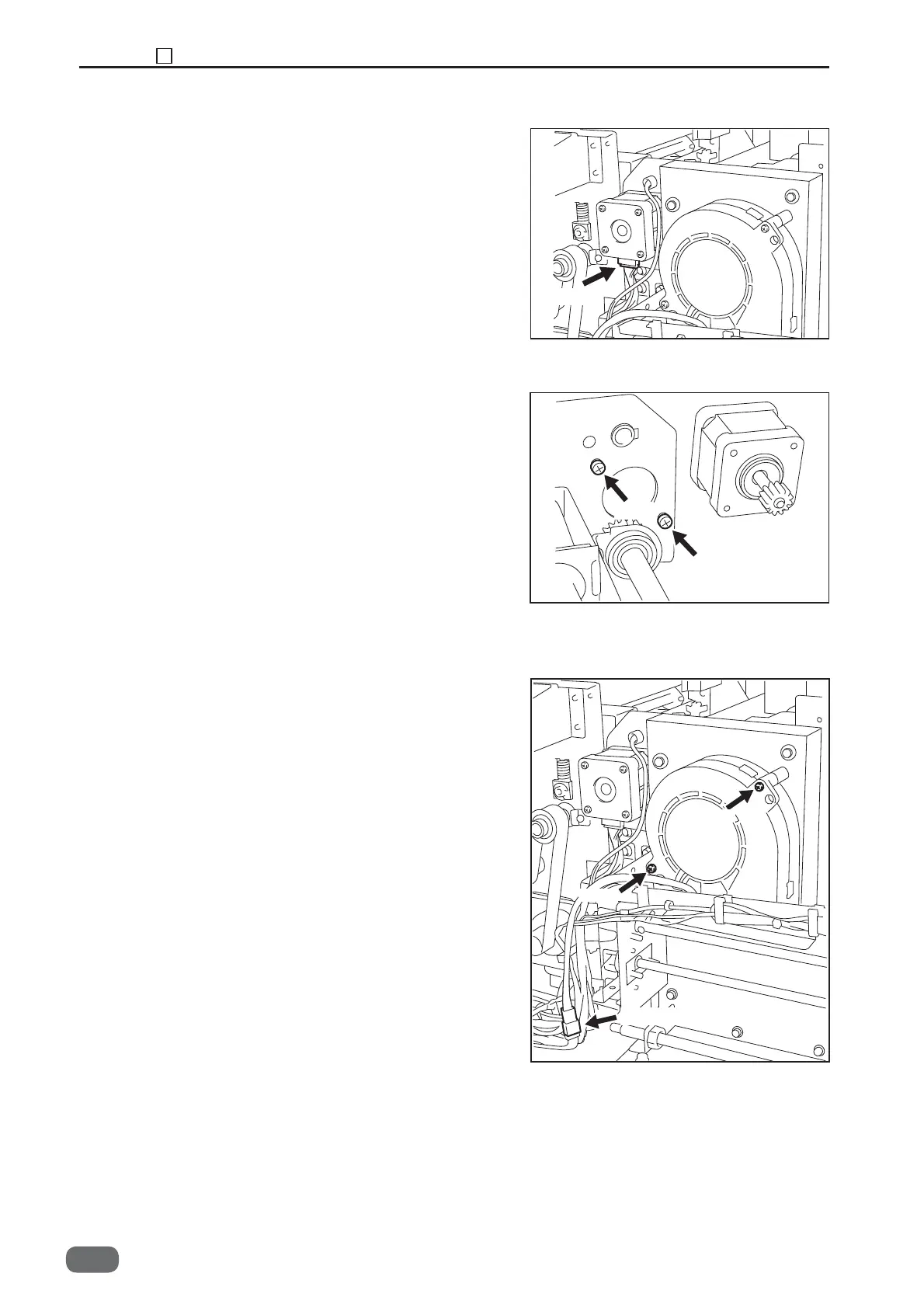

(3) Removing the Feed Motor
1. Open the top cover.
2. Remove the cover F2 unit.
3. Disconnect the connector from the motor.
4. Remove the belt suction unit.
(See→P.56)
5. Take out the two screws, and remove the feed
motor.
* After the installation, perform the motor operation
check in HELP Mode: 19.
(4) Removing the Suction Fan
1. Remove the cover F2 unit.
2. Disconnect the fan motor connector.
3. Take out the two screws, and remove the suction
fan.
* After the installation, perform the fan motor
operation check in HELP Mode: 18.
(See→P.52)
Connector
Screw
Screw
Screw
Screw
Connector
-0
(See→P.52)
(HELP Mode : 19→P.143)
(HELP Mode : 18→P.142)
