Duplo DC-616 Service Manual

S2-Y1540
103
4
Chapter 4 4 Margin Slitter Section
-0

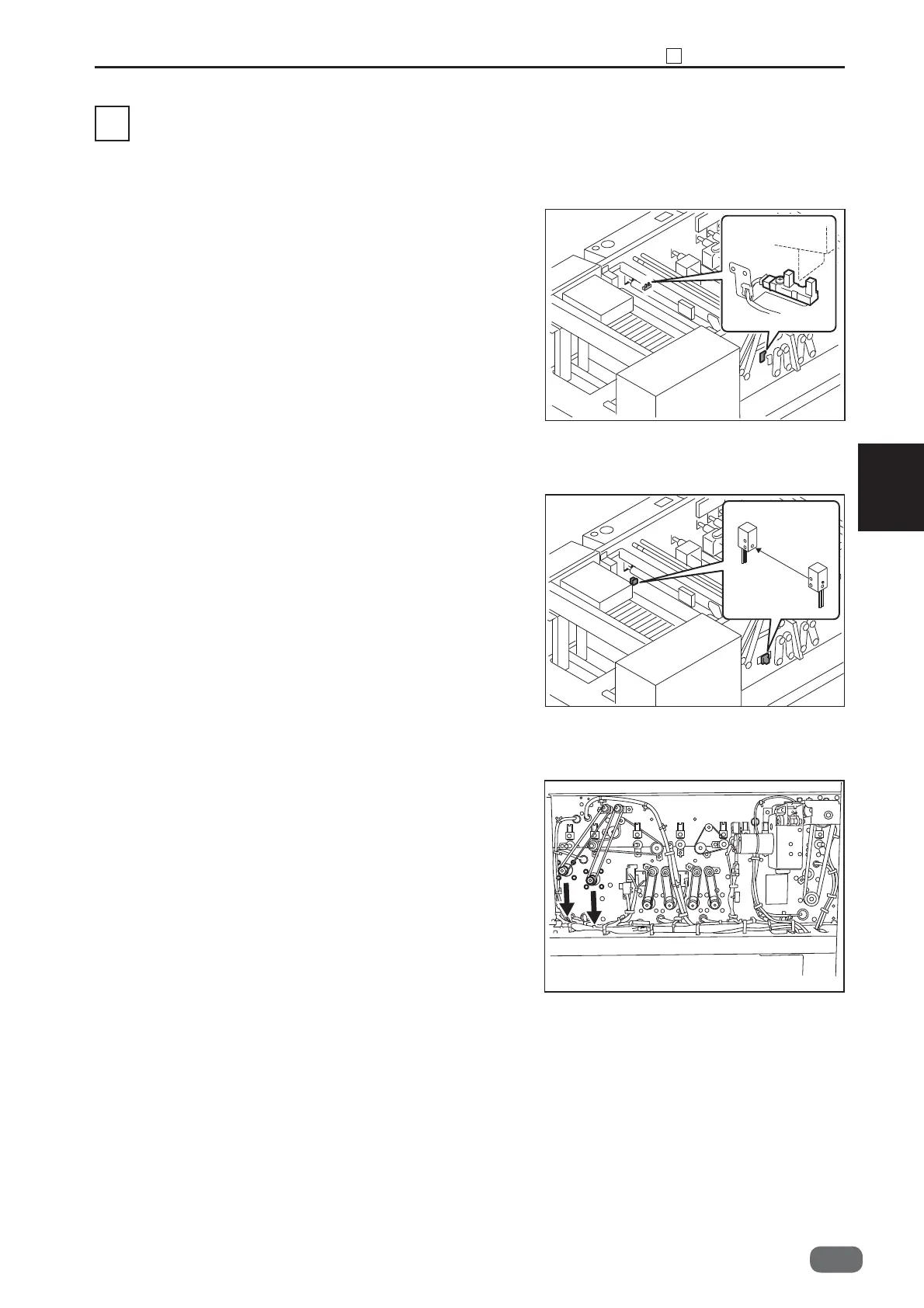

4 Margin Slitter Section
1. Check the sensor operation in HELP Mode:11,26.
2. Feed the test paper through the machine applying the
Service person JOB.
3. Adjust the home position setting in HELP Mode: 49.
(1)Margin slitter home position sensor adjustment
(2) Margin jam detecting sensor adjustment
1. Adjust the sensor detecting time in HELP Mode: 59.
2. Check the sensor operation in HELP Mode:11.
(3) Slitter position motor and belt adjustment
1. Adjust the belt tension to 6 mm/10N by moving the
motor installation position.
2. Check the operation in HELP Mode: 26.
(HELP Mode : 49→P.156)
(HELP Mode : 26→P.145)
(HELP Mode : 11→P.137)
(HELP Mode : 11→P.137)
(HELP Mode : 26→P.145)
(HELP Mode : 59→P.161)
