Chapter 3 6 Center Slitter Section
3

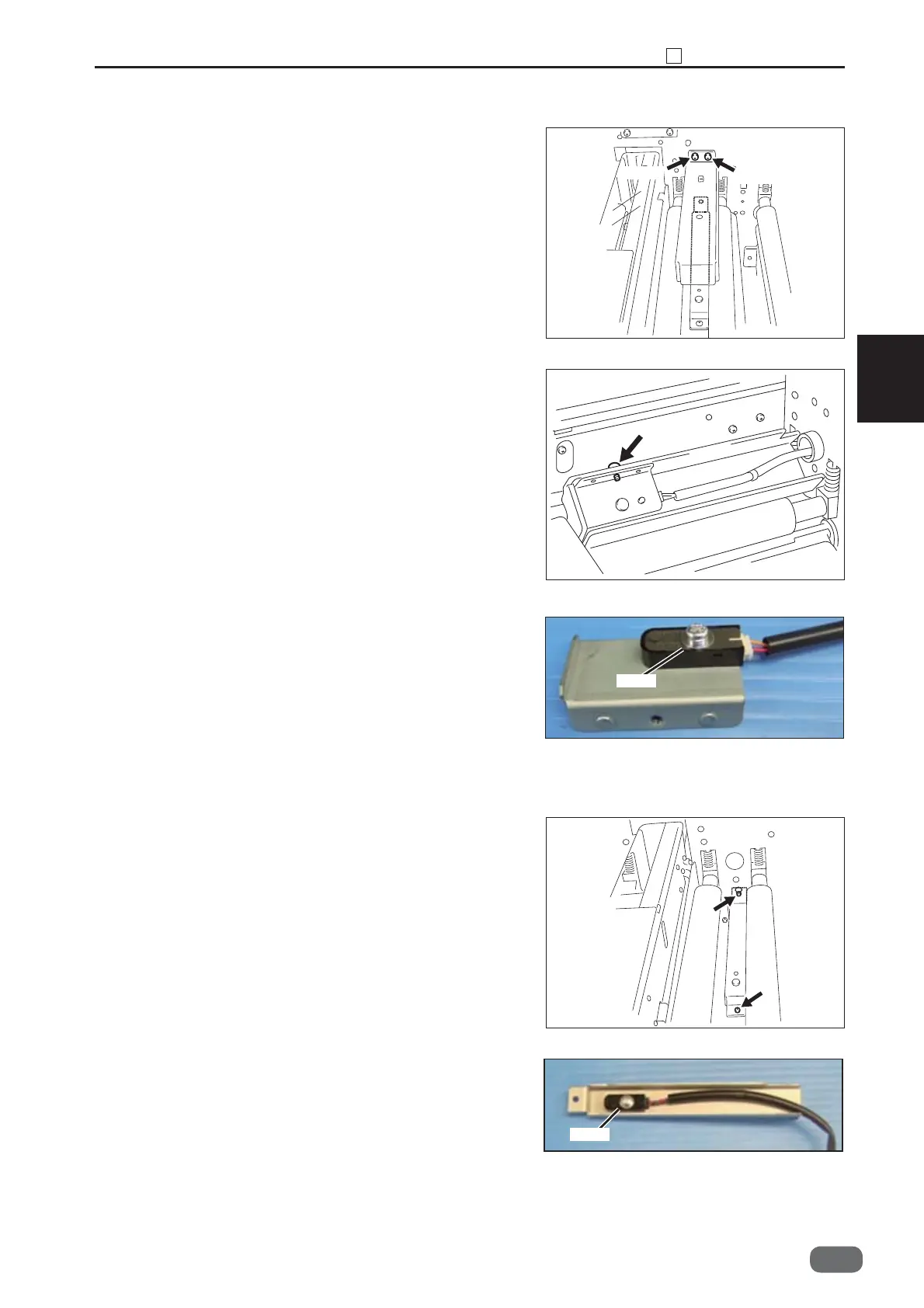

S2-Y1540
● Photo-emission sensor
(4) Removing the PPS3
1. Open the top cover.
2. Remove the cover R.
3. Take out the two screws, and remove the sensor
cover.
4. Take out the two screws, and remove the sensor
with the bracket.
5. Take out the screw, and remove the sensor from the
bracket.
* After installation, perform the sensor operation check
in HELP Mode: 11.
● Photo-detecting sensor
1. Take out the two screws, and remove the sensor
with the bracket.
2. Take out the screw, and remove the sensor from
the bracket.
* After installation, perform the sensor operation
check in HELP Mode: 11.
(HELP Mode : 11→P.137)
(HELP Mode : 11→P.137)
Screw
Screw
-0
Screw
Screw
