80
Chapter 3 6 Center Slitter Section
S2-Y1540

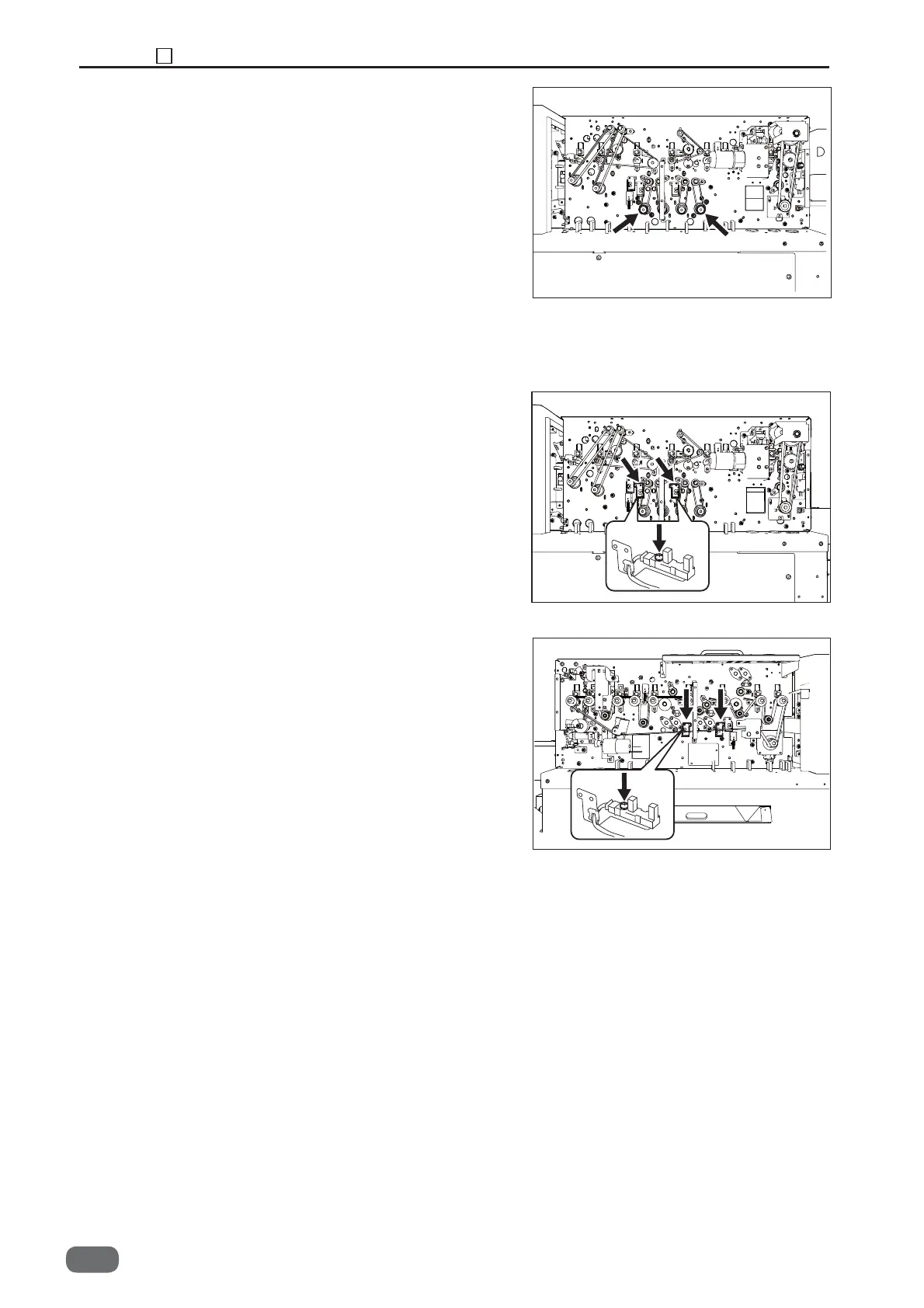

3. Remove the cover R.
4. Remove the timing belt.
5. Take out the four screws, and remove the motor.
* After the installation, perform the motor operation
check in HELP Mode: 31.
1. Remove the cover F.
(3) Removing the Center Slitter Home Position Sensor
2. Remove the cover R.
3. Take out one screw (each), and remove the
photointerrupter with the bracket.
4. Take out one screw (each), and remove the
photointerrupter from the bracket .
* Adjustment required at the time of installation
(See→P.104)
(See→P.53)
(See→P.52)
(See→P.53)
(HELP Mode : 31→P.149)
