Duplo DC-616 Service Manual

79
Chapter 3 6 Center Slitter Section
3
S2-Y1540

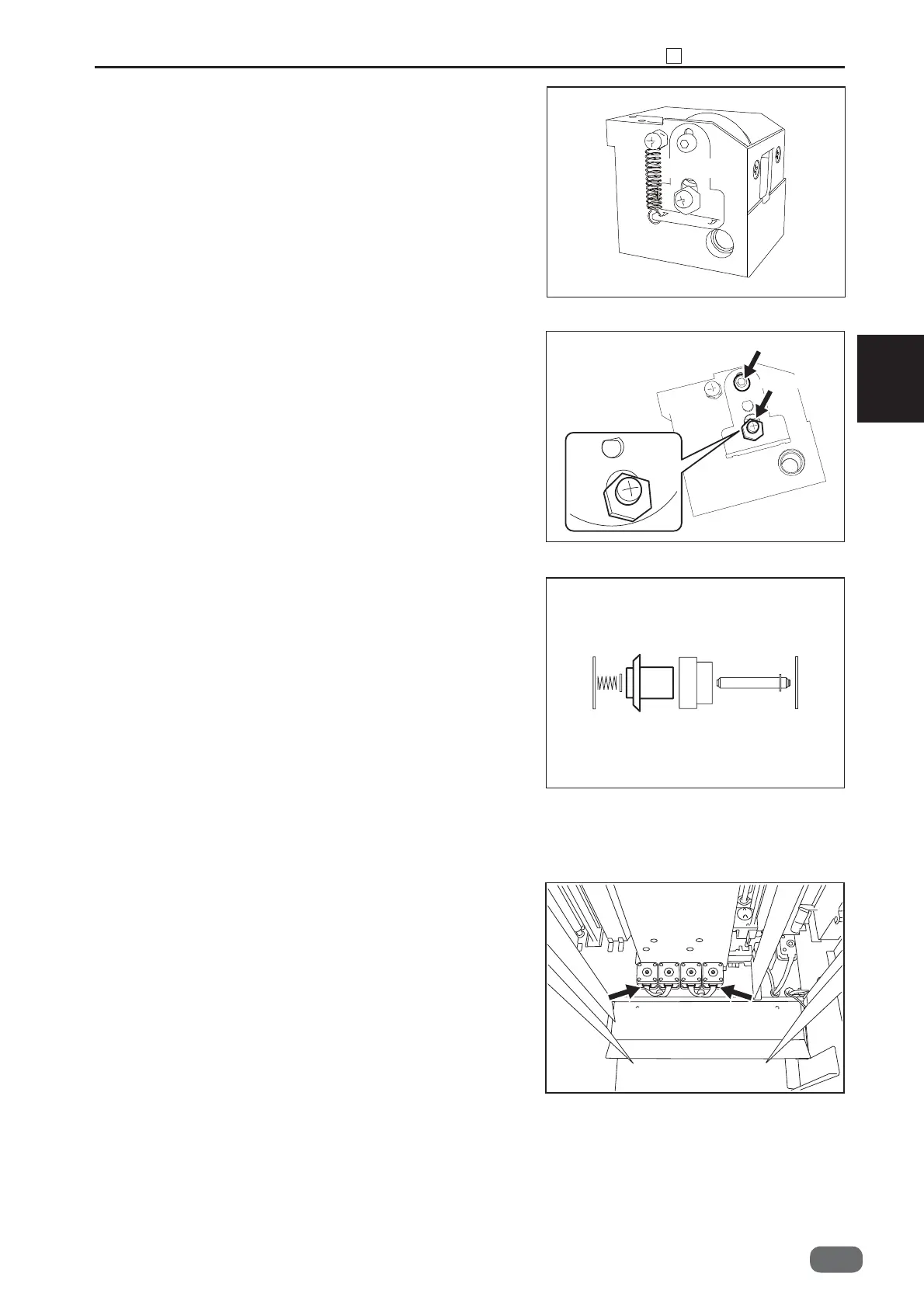

9. Take out the two screw (each), and remove the lids
(two places).
* Take note of the correct orientation of the
eccentric shaft at the time of installation.
10. Draw out the lower blade unit with the shaft.
(2) Removing the Center Slitter Position Motor
1. Open the font cover.
2. Disconnect the motor connector.
8. Remove the spring T.
Screw
Screw
Spring T
-0
