Duplo DC-616 Service Manual

82
Chapter 3 6 Center Slitter Section
S2-Y1540
1. Remove the cover F.

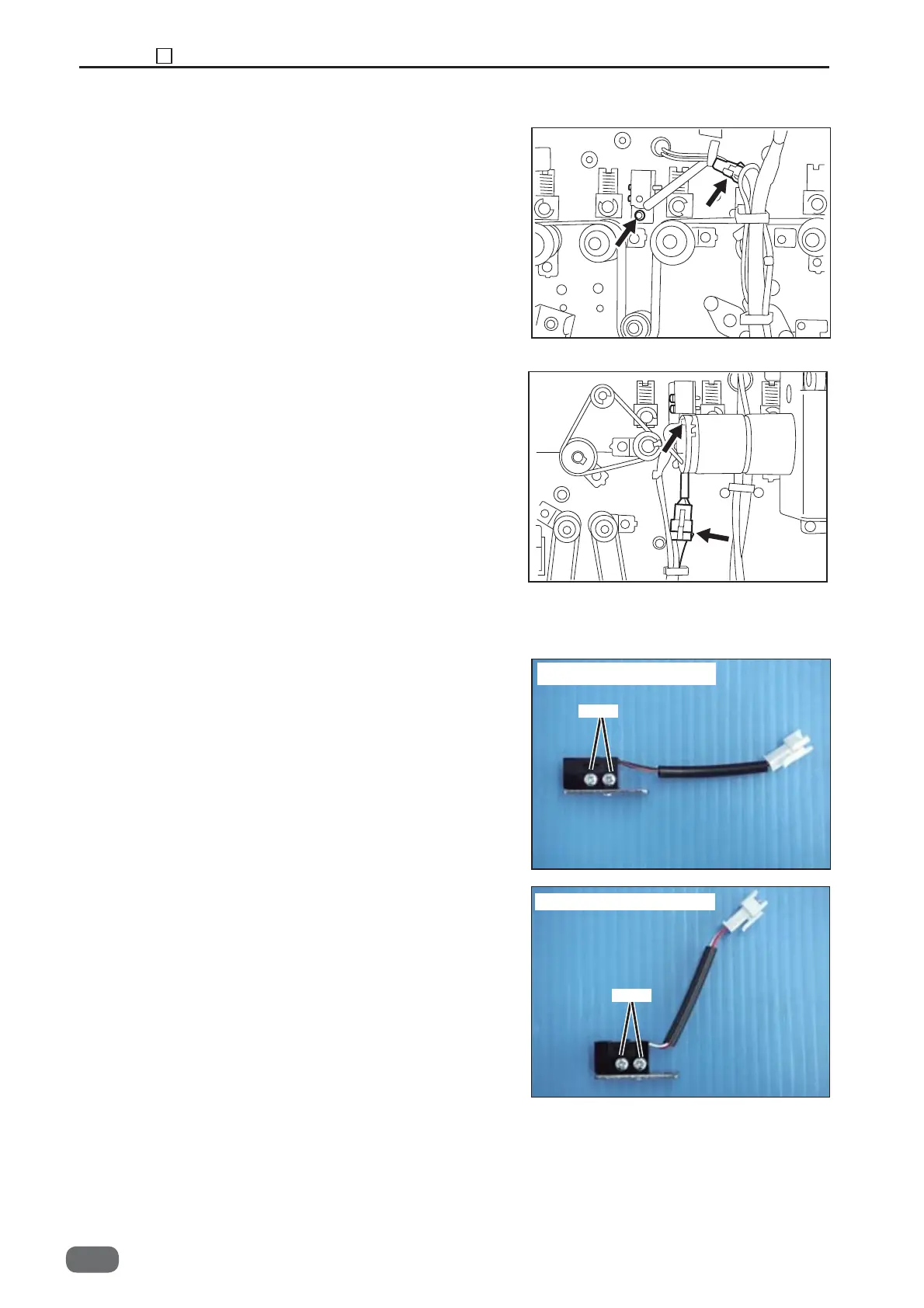

(5) Removing the Gutter ON/OFF Sensor
2. Remove the cover R.
3. Disconnect the sensor connector.
4.
Take out the screw, and remove the sensor with the
bracket.
(See→P.52)
(See→P.53)
(HELP Mode : 11→P.137)
5. Take out the two screws , and remove the sensor.
* After the installation, perform the sensor operation
check in HELP Mode: 11.
Photo-emission sensor
Photo-detecting sensor
Screw
Screw
-0
