78
Chapter 3 6 Center Slitter Section
S2-Y1540

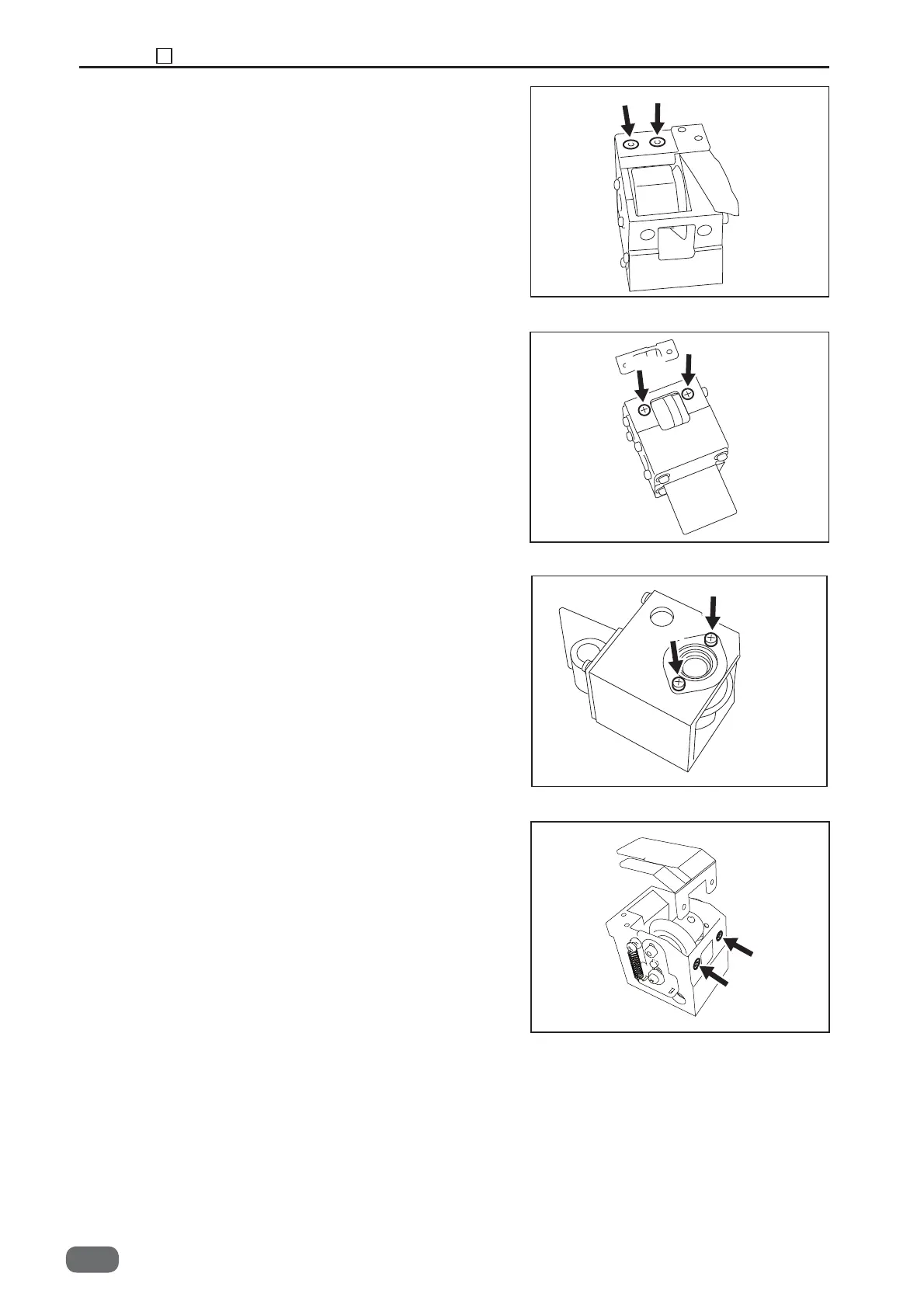

2. Take out the two screw, and separate the housing.
3. Take out the two screw, and remove the plate.
6. Draw out the upper blade unit.
(Slitter 3 and slitter 4: upper blade unit
Slitter 5 and slitter 6: lower blade unit)
7. Take out the two screws, and remove the guide.
4. Take out the two screw, and remove the guide.
5.
Take out the two screws, and remove the lids (2 places,
right and left) .
Screw Screw
Screw
Screw
Screw
Screw
Screw
Screw
-0
To Next Page
