Chapter 3 6 Center Slitter Section
3
S2-Y1540

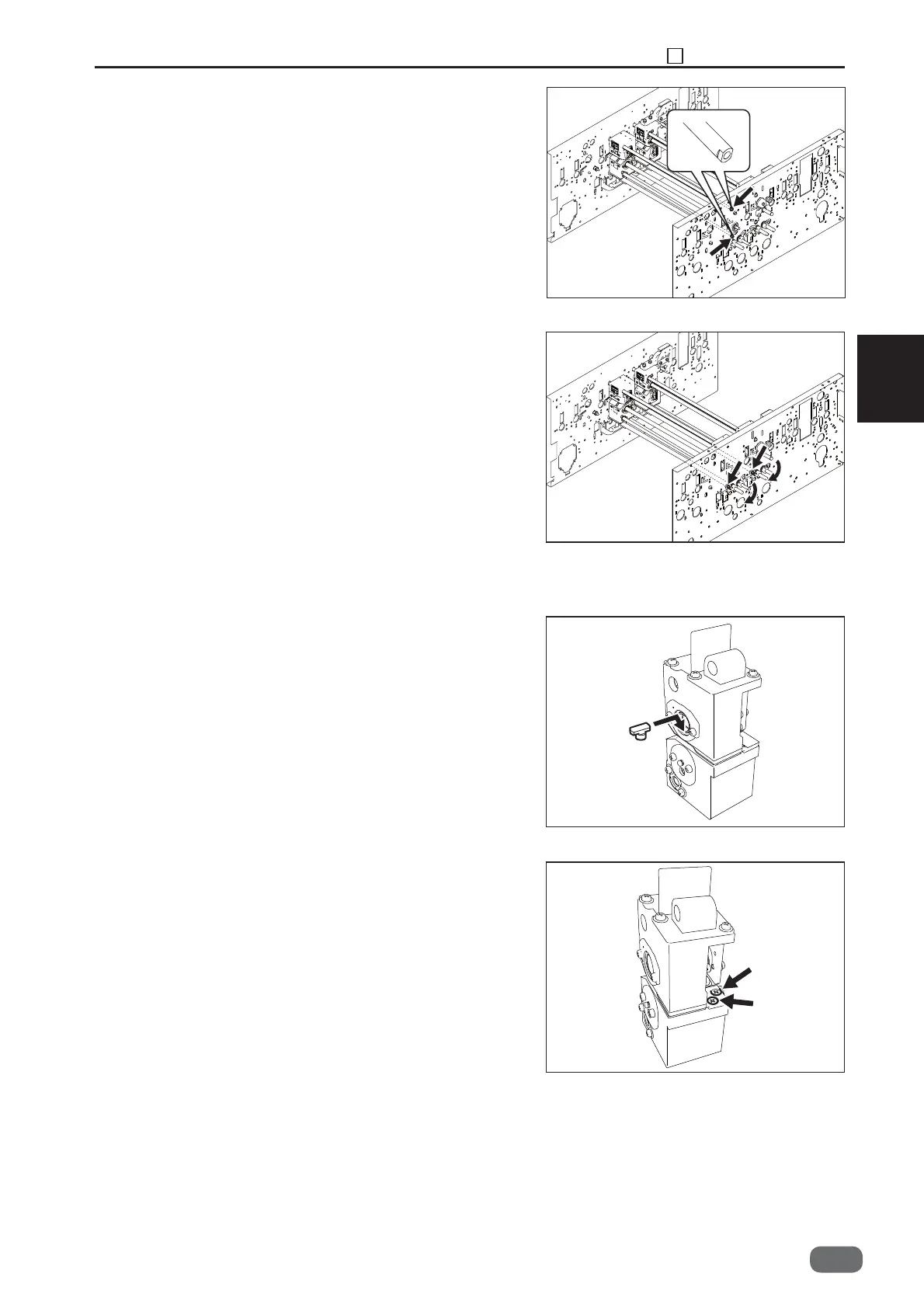

8. Take out the screw, and pull out the two slide
shafts.
* Do not damage the ball bearings at the time of
installation.
* Take note of the orientation of the D cutting in the
shaft point at the time of installation.
* Before installation, be careful that there are two
kinds of shaft with different depth of D cutting.
9. Take out the screw, and remove the bearing
pressers. (two places)
10. Pull out the two driving shafts while turning them
around.
● Removing the Slitter Blade
* When removing the slitter blade of center slitters
(5 and 6), remove the gutter guide.
* To install the upper and lower blade housing, the
jig for parallel is necessary.
* Do not lose the key.
1. Remove the tape and expose the two screws.
Screw
Screw
-0
