Chapter 3 1 Exterior
S2-Y1540

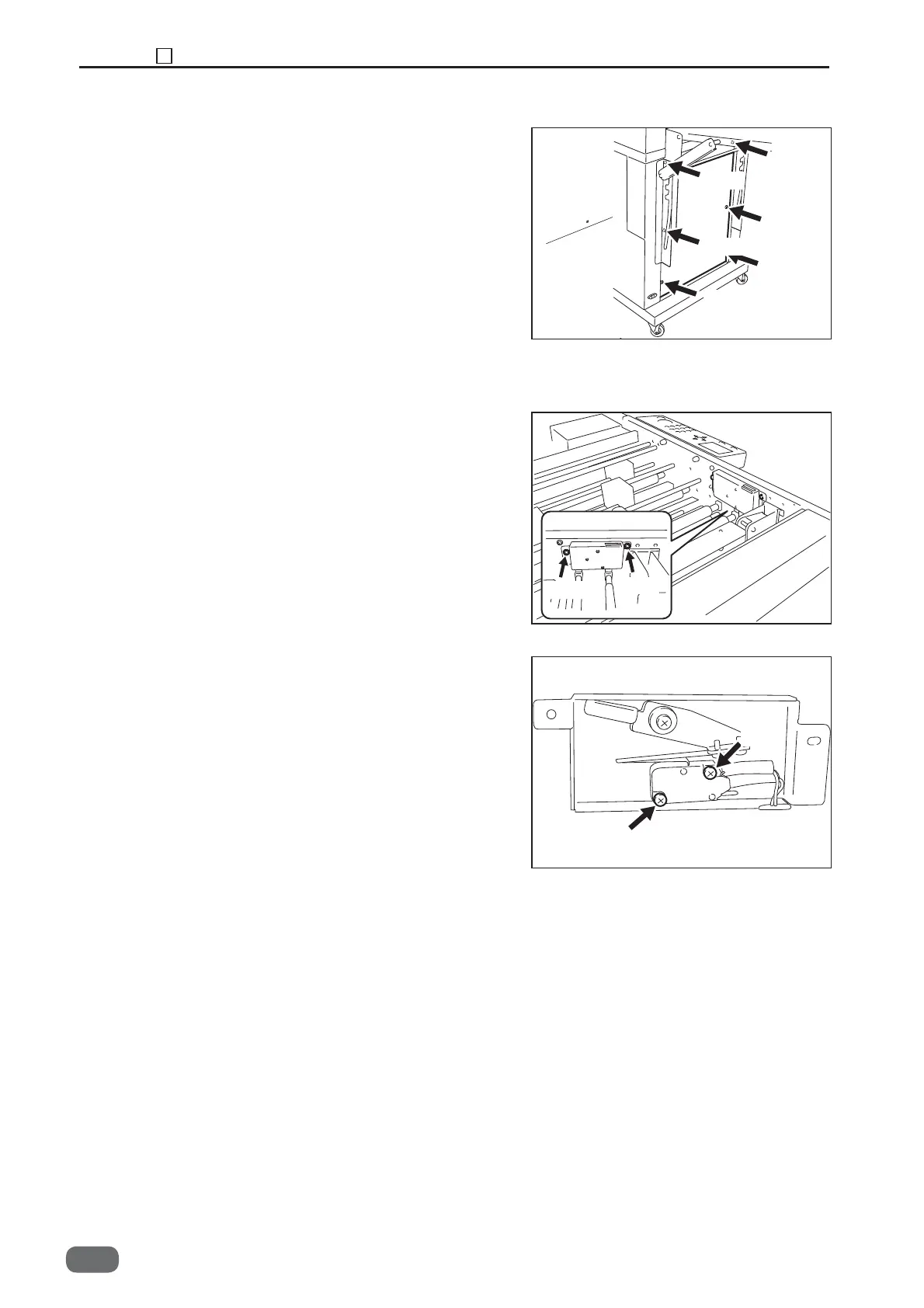

(8) Removing the Cover (Power supply)
(9) Removing the Top Cover Interlock Switch
1. Take out the six screws, and pull out the cover.
* Be sure to work with thepower cord removed.
1. Open the top cover.
2. Take out the two screws, and remove the micro
switch with the bracket.
3. Disconnect the connector.
4. Take out the two screws, and remove the micro
switch.
* After the installation, adjust the interlock switch.
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
-0
(See→P.103)
