126

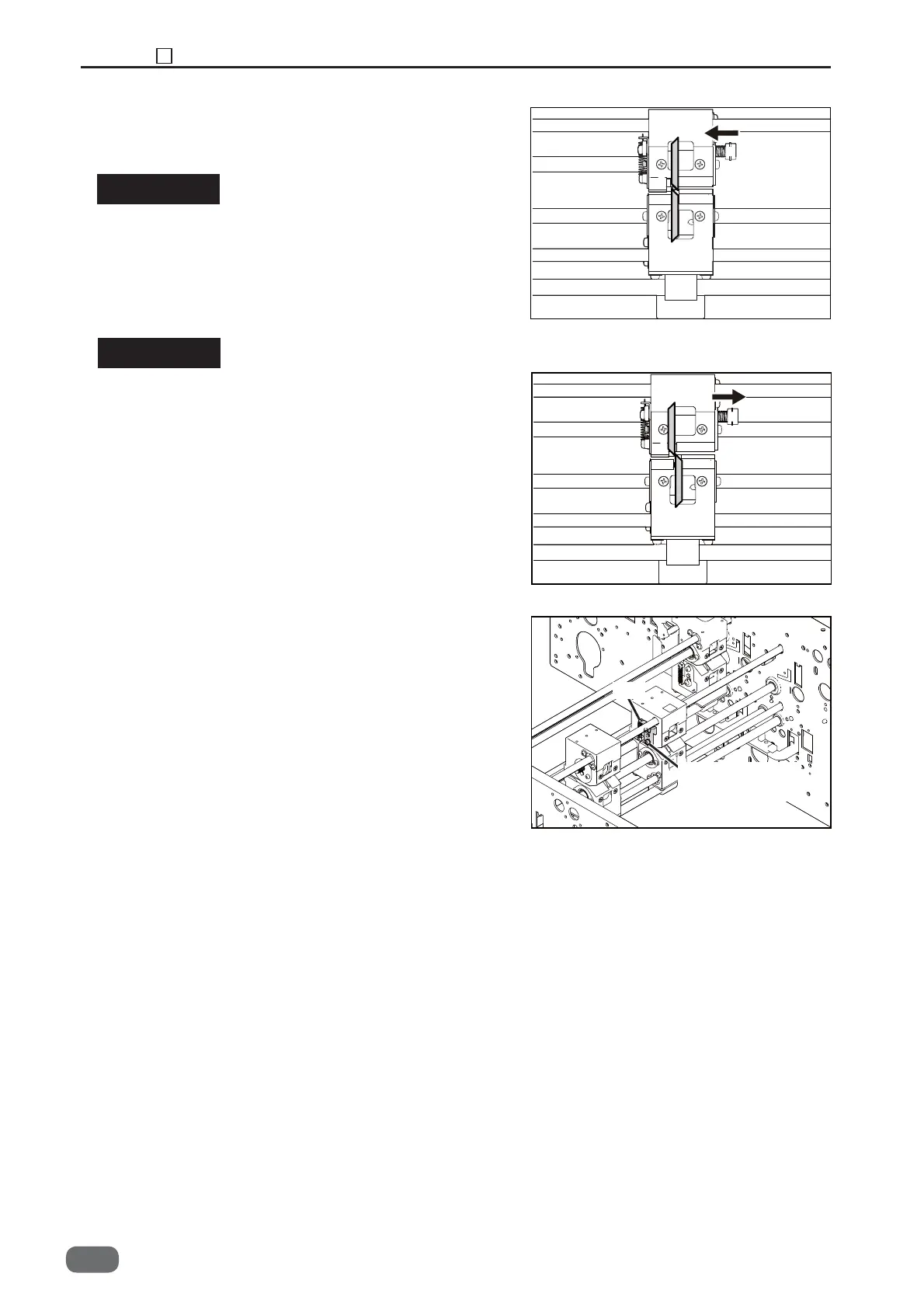

Chapter 6 4 Slitter Blade Intersection Correction
S2-Y1540
REFERENCE
REFERENCE
-0
4. Push the shaft in the direction of the arrow to
correct the intersecting upper blade.
The right figure shows that the upper blade and the
lower blade intersect.
Pushing the shaft in without sliding the lid may
damage the upper blade and the lower blade.
The right figure shows that the blade intersection is
corrected and the blades are in the normal position.
5. Tighten the hexagon socket head cap screw to
secure the lid.
6. Move the slitter which blade intersection has been
corrected to its home position in HELP mode: 31.
7. Check that the slitter home position is detected
correctly in HELP mode: 11.
Lid
Hexagon socket
head cap screw
To Next Page
