2. Position of barcode

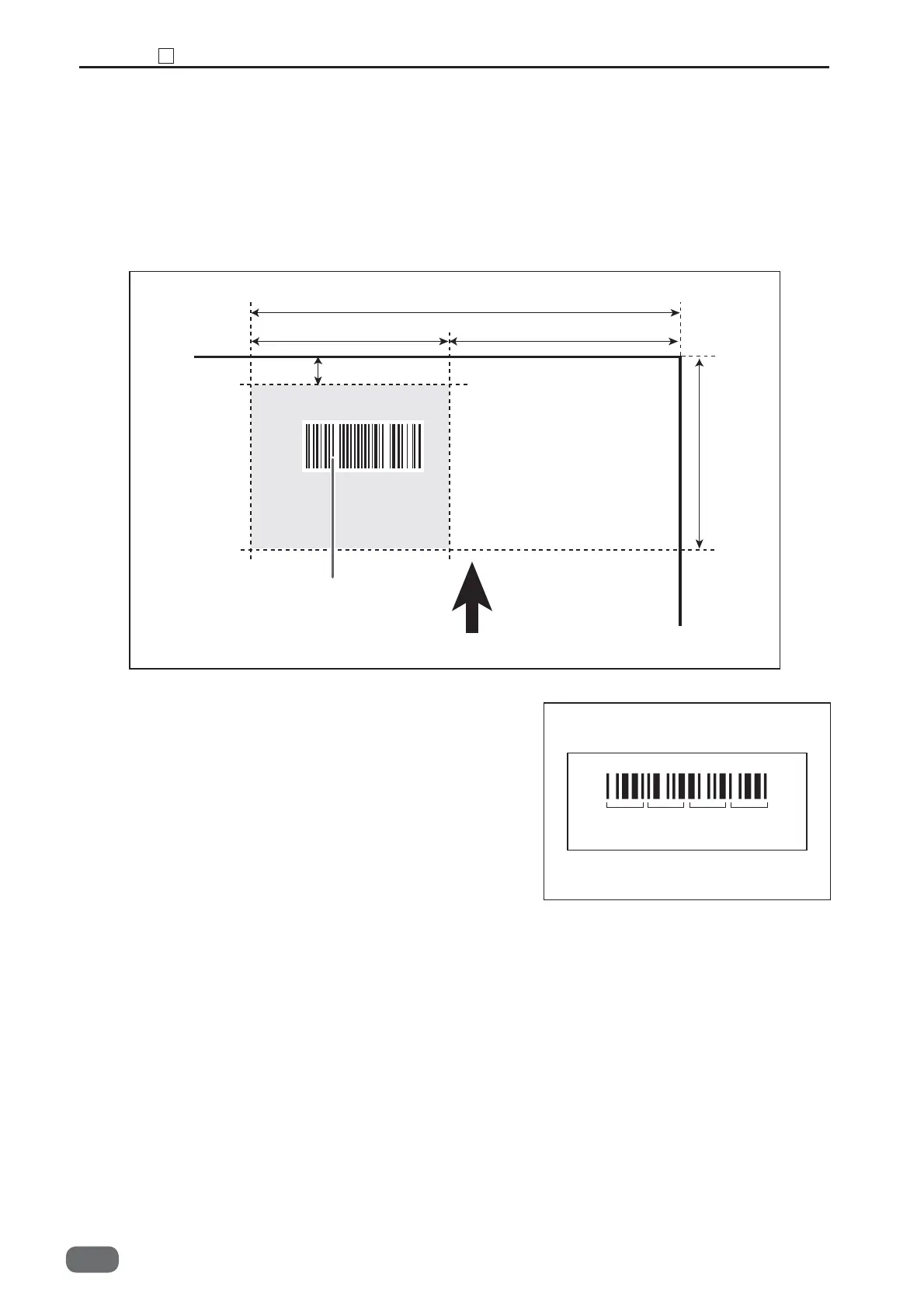

Paper feed direction: The whole BARCODE should be within
3 to 20 mm from the lead edge.
Paper width direction: The whole BARCODE should be
within 25 to 60 mm from the right edge.
* Here is the example barcode: CODE39 (*21*).
(See below)
1 2 3 4
60 mm or less
35 mm
25 mm
3 mm
20 mm
Paper feed direction
Barcode
Barcode
Position Range
1. is the start code designator for CODE-39. (*)
2. is the 10’s digit data of the JOB number.
(Example: When the JOB number is 21, the data is “2”.)
3. is the 1’s digit data of the JOB number.
(Example: When the JOB number is 21, the data is “1”.)
4. is stop code of CODE-39. (*)
