47
Chapter 2 12 REG Mark
2
S2-Y1540

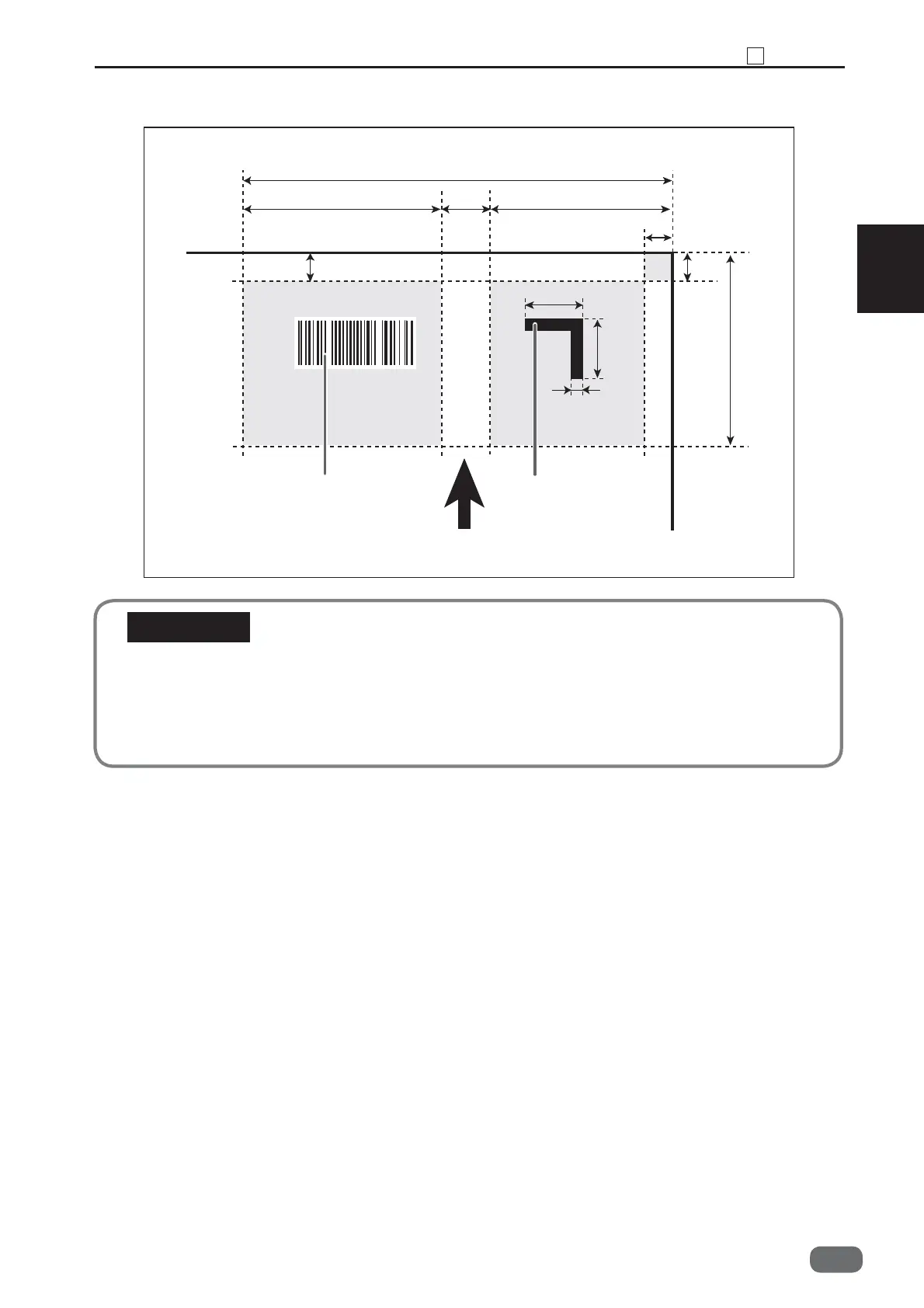

3. Printing both REG mark and barcode
REG marks or barcodes located out of the speci
fi
ed printing area cannot be detected
properly by DC-616.
T
ake account of the possible variation in the printed position of REG marks and barcodes
when they are arranged on the paper
.
IMPORT
ANT
60 mm or shorter
20 mm
35 mm
5 mm
3 mm
3 mm
20 mm
REG Mark
Barcode
Paper feed direction
5 mm or more
5 mm
or more
0.4 mm or more
3mm
