91
Chapter 3 9 Main Drive Section
3
S2-Y1540

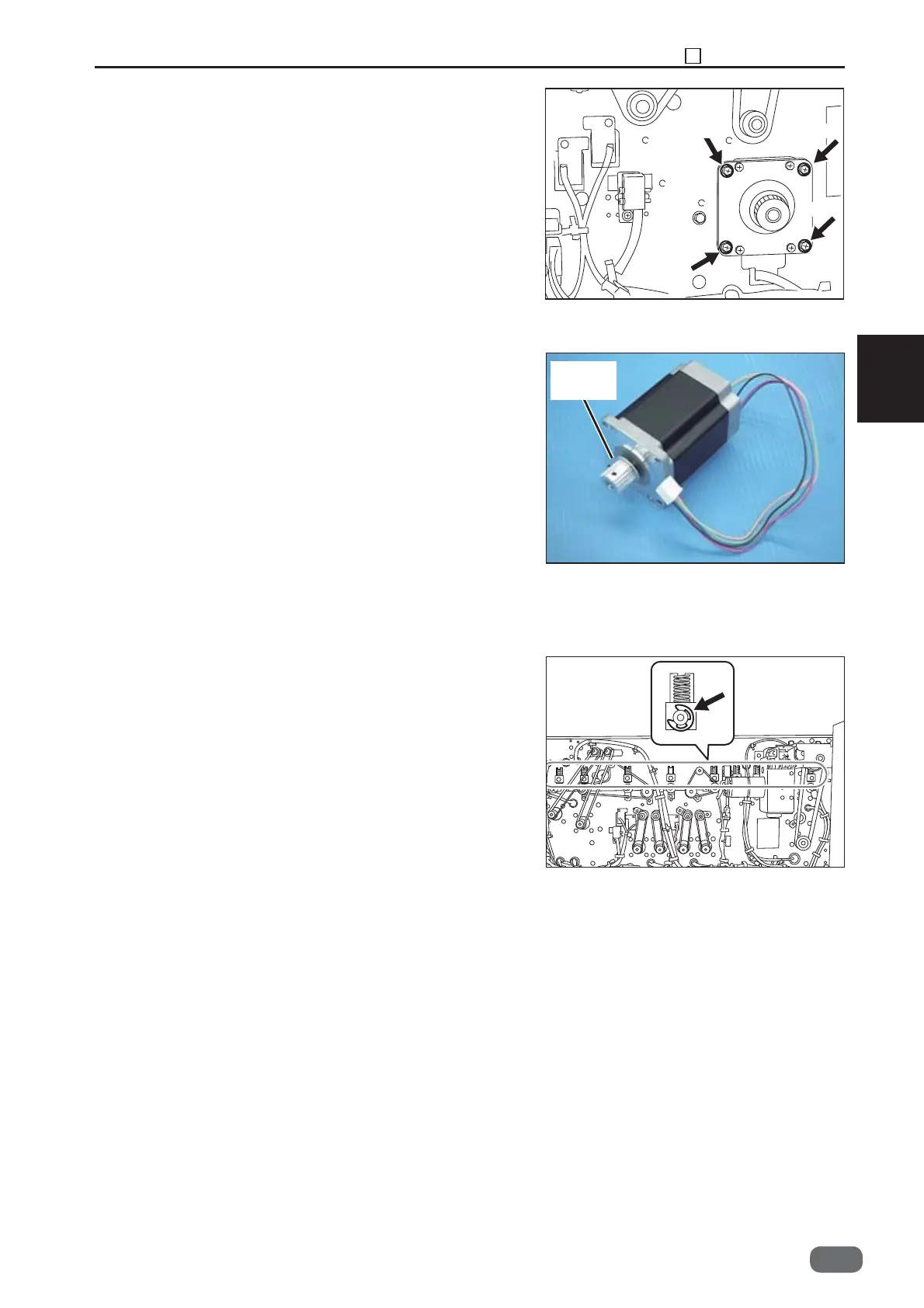

7. Loosen the hexagon socket set screw, and remove
the gear.
* Adjustment required at the time of installation
(2) Removing the Driving Roller (Upper)
6. Take out the four screws, and remove the motor with
bracket.
1. Remove the covers F, R.
2. Remove the bush presser spring.
3. Take out the E-ring, and remove the bush.
4. Draw out the roller from the control panel side.
(See→P.52)
(See→P.53)
(See→P.108)
Hexagon
socket set
screw
Screw
Screw
Screw
Screw
-0
To Next Page
