Marking lamps
Service Instructions 745-35-10 S/745-35-10 A - 02.0 - 04/2017 109
7Marking lamps
7.1 Aligning the laser modules (745-35-10 S)
The 745-35-10 S comes standard with 3 laser modules for marking the
positioning points.
An adjustment template is available under part number 0745 290050.

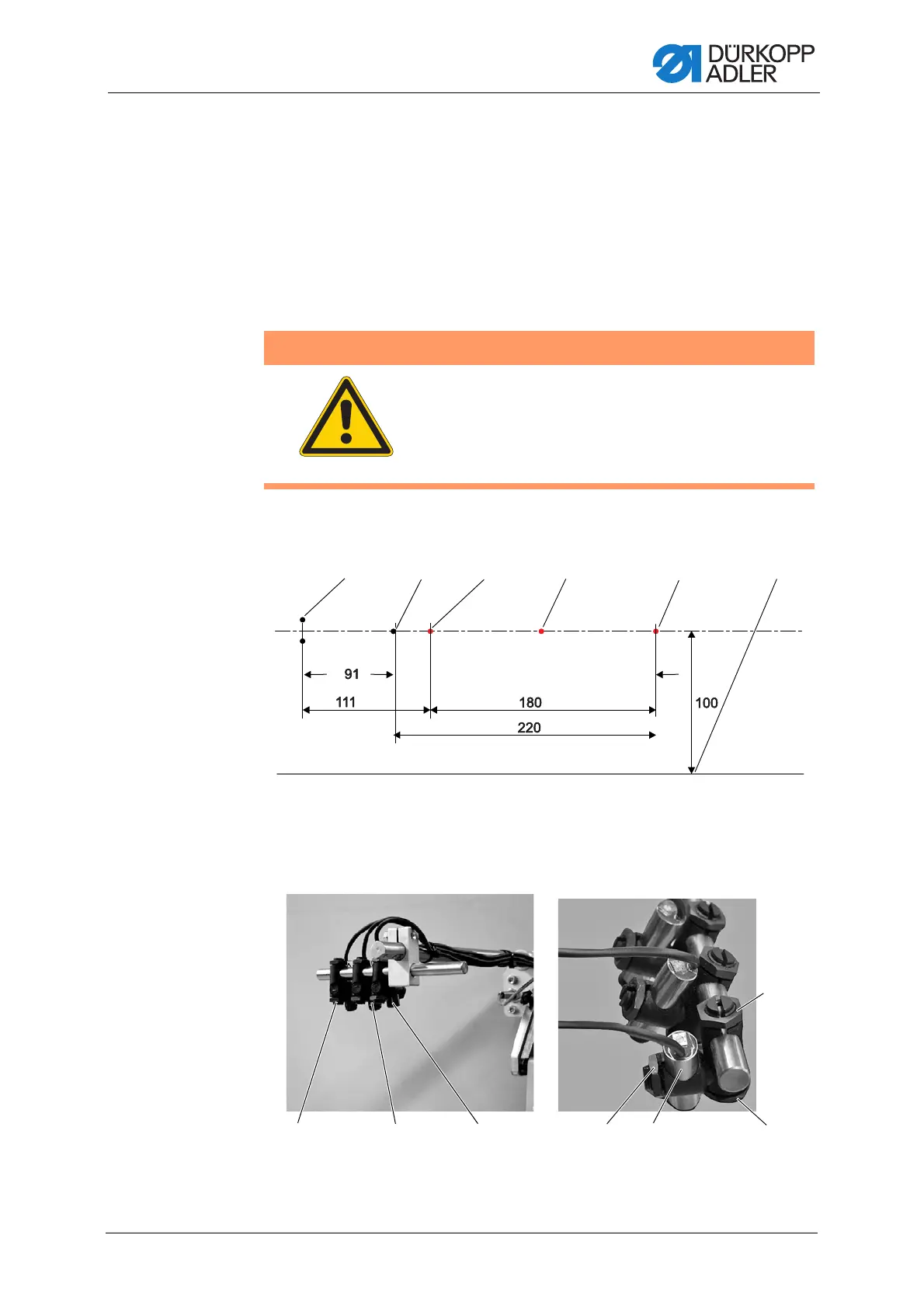

Fig. 92: Aligning the laser modules (1)
Fig. 93: Aligning the laser modules (2)
WARNING
Risk of injury from laser light!
Risk of sustaining eye damage and going blind.
NEVER look into the laser light source.
(1) - Needles
(2) - Cutting line
(3) - Marking of the front positioning point
(4) - Middle of pocket opening
(5) - Marking of the rear positioning point
(6) - Edge of the sliding plate
(measuring line)
(7) - Laser module seam end
(8) - Laser module middle of the pocket opening
(9) - Laser module seam beginning
(10) - Clamping nut
(11) - Laser
(12) - Clamping nut
(13) - Clamping nut
①②③ ④ ⑤ ⑥
⑦⑧⑨ ⑩⑪ ⑫
⑬
