Stacker
Service Instructions 745-35-10 S/745-35-10 A - 02.0 - 04/2017 155
14 Stacker
The basic stacker settings described below have been set at the factory.
They only have to be adjusted in exceptional cases.
14.1 Pincer stacker
14.1.1 Setting the position of the stacker tongs relative to the tabletop

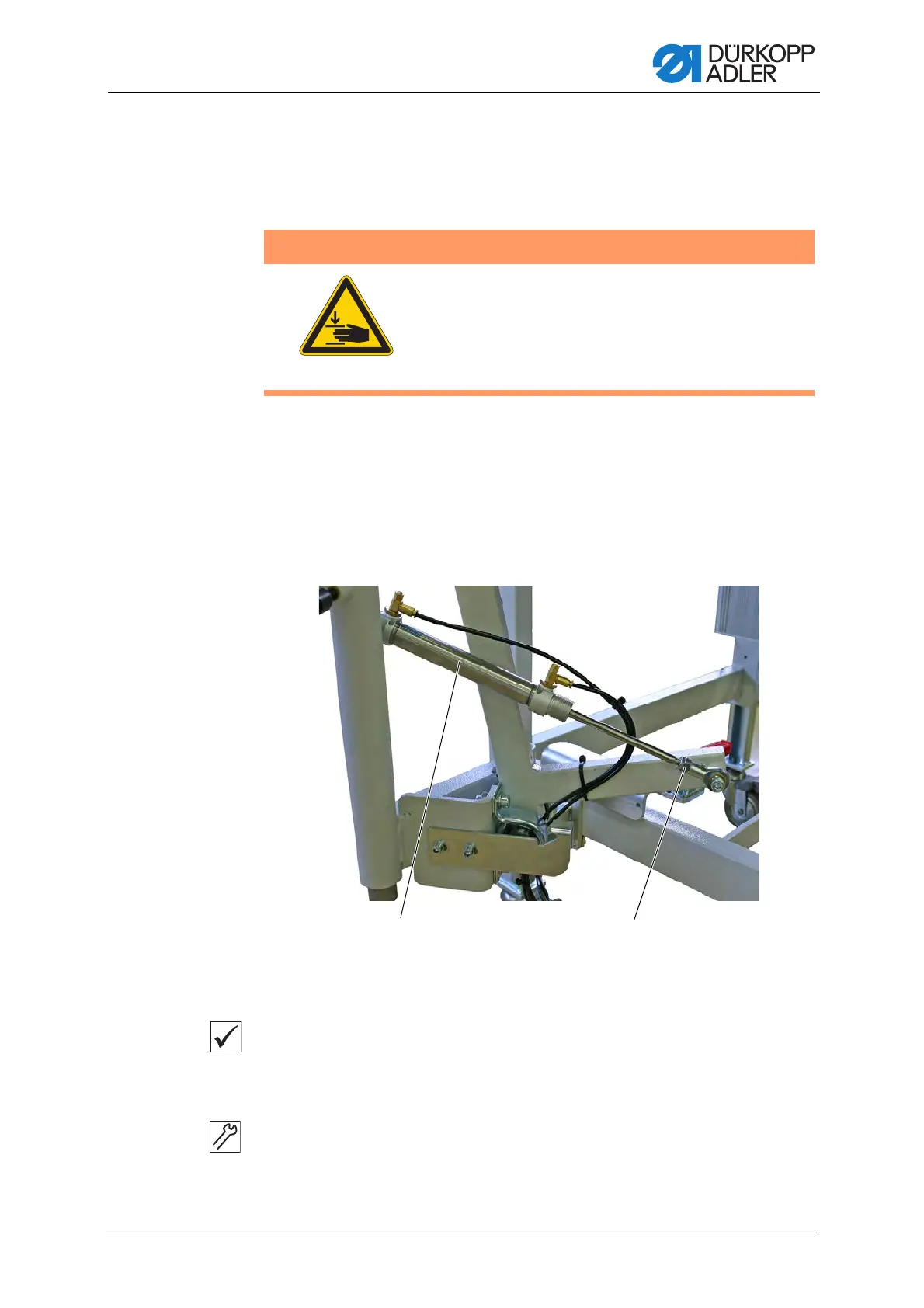

Fig. 134: Setting the position of the stacker tongs relative to the tabletop
Proper setting
The open stacker tongs should be positioned relative to the tabletop so
that the workpiece can be transported without hindrance.
To set the position of the stacker tongs relative to the tabletop:
1. Loosen the counternut (2).
WARNING
Risk of injury from moving parts!
Crushing possible.
Before all setting operations, turn off the main
switch and disconnect the stacker from the
compressed air supply.
(1) - Cylinder (2) - Counternut
