Corner knives
100 Service Instructions 745-35-10 S/745-35-10 A - 02.0 - 04/2017
4. Prepare a workpiece and sew:
• Create a seam program for testing and set all corrections for the
corner knives and the middle knife to 0.
• Iron a piece of Vlieseline onto the workpiece.
This makes the corner knife cuts more visible.
• Sew a test seam.
• Check seam and cutting pattern.
• Repeat the process until the desired result has been achieved.
• To quit the test program, press the button or .
6.3 Checking the corner knife station
(745-35-10 A only, slanted pocket)

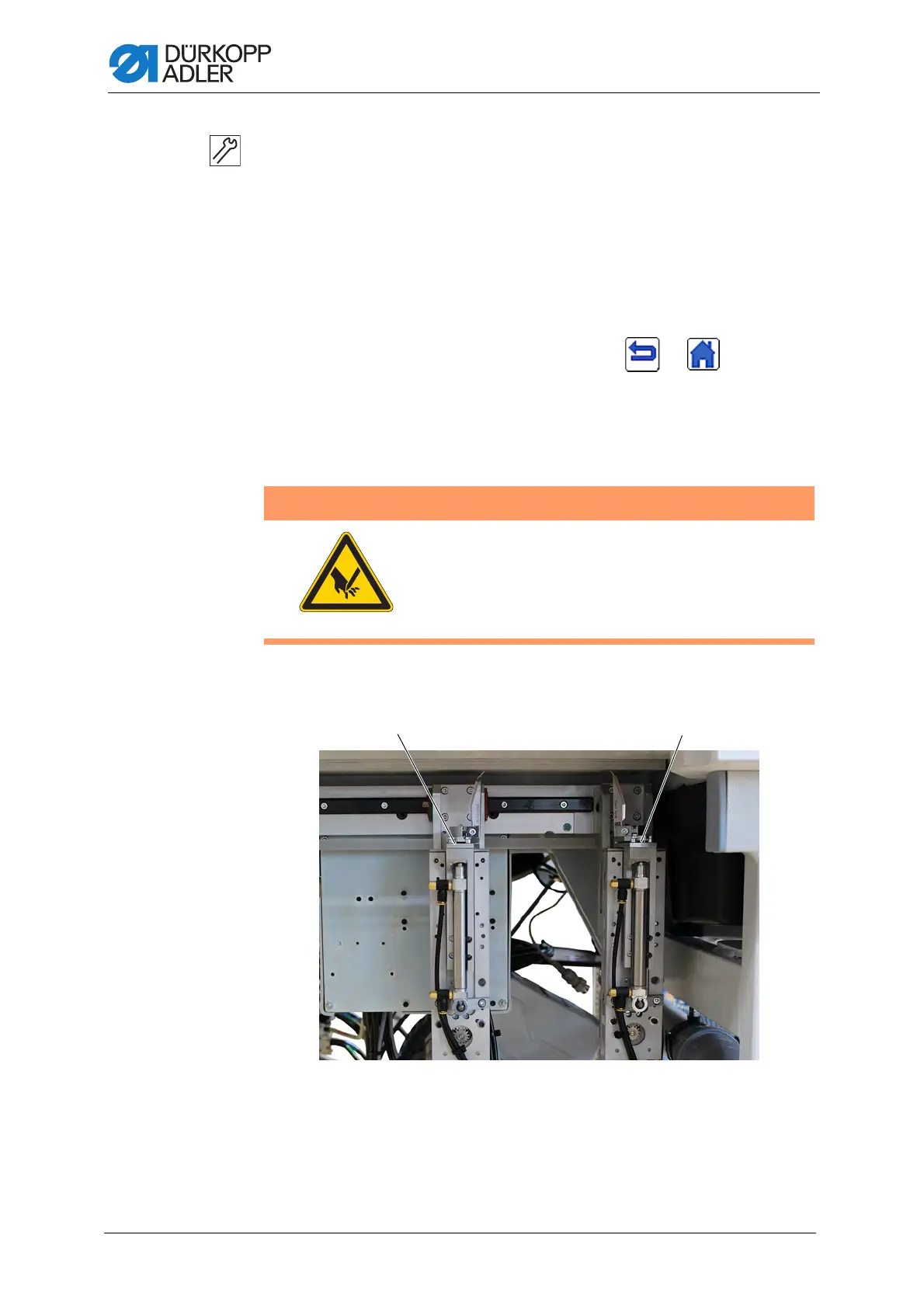

Fig. 83: Checking the corner knife station
WARNING
Risk of injury from sharp parts!
Cutting possible.
Do not reach into the area of the corner knives.
(1) - Corner knife support
(2) - Corner knife
(3) - Corner knife
(4) - Corner knife
(5) - Corner knife
(6) - Corner knife support
