Folder
136 Service Instructions 745-35-10 S/745-35-10 A - 02.0 - 04/2017
12.2 Aligning the folder with the middle of the pocket opening

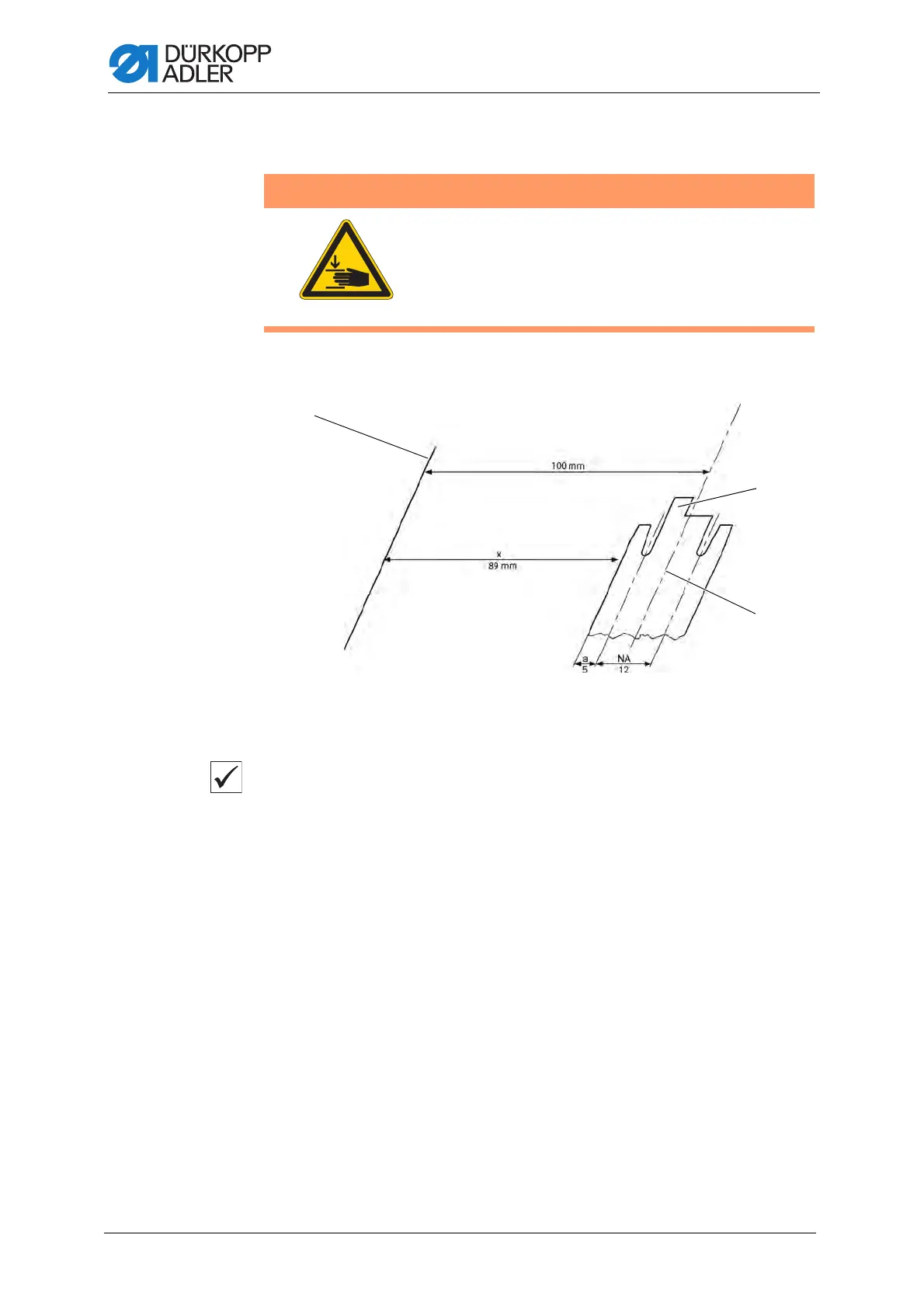

Fig. 117: Aligning the folder (1)
Proper setting
If properly fitted, the folder can be aligned with the middle of the pocket
opening (2) from the edge of the sliding plate (1).
Dimension x can be calculated based on the width of the folder sole (3).
This dimension can be used to align the folder with the middle of the pock-
et opening (2) and parallel to the edge of the sliding plate (1).
Deduct piping width a and half of the needle distance NA from the dimen-
sion 100 mm.
Example (diagram above):
100 mm - a - 1/2 x NA = x
100 mm - 5 mm - 1/2 x 12 mm = 89 mm
Check the distance of the folder sole (3) to the edge of the sliding plate (1).
WARNING
Risk of injury from moving parts!
Crushing possible.
Align the folder with the middle of the pocket
opening only with the sewing unit switched off.
(1) - Edge of the sliding plate (measuring line)
(2) - Middle of the pocket opening
(3) - Folder sole
