8.2.1 Setting the light barriers for automatic slant detection

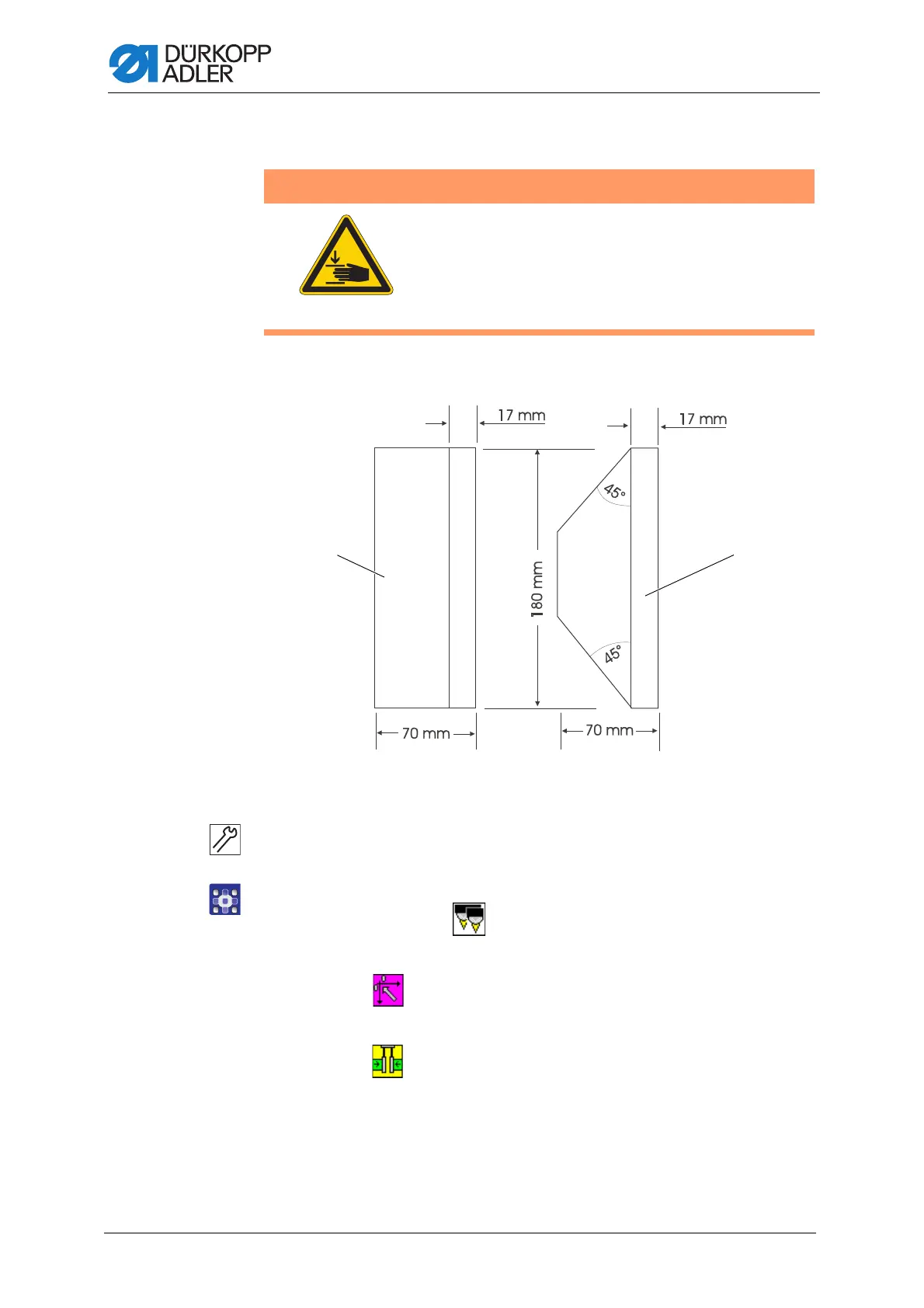

Fig. 102: Setting the light barriers for automatic slant detection (1)
To set the light barriers for automatic slant detection:
1. Insert the sewing material.
2. Open the menu Service > Machine test and press the button
Align light barriers .
3. Swing the folding station out.
4. Press the button.
 Reference run is carried out.
5. Press the
button and select the desired transport clamp position.
 The light barriers must be aligned with the transport clamp position.
WARNING
Risk of injury from moving parts!
Crushing possible.
Do not reach into the travel path of the transport
clamps.
The folding station must be swung out.
(1) - Template for straight pockets (2) - Template for slanted pockets
①②
