Machine head

28 Service Instructions 745-35-10 S/745-35-10 A - 02.0 - 04/2017

3.8 Needle bar linkage

3.8.1 Removing the needle bar linkage

Removing the head cover

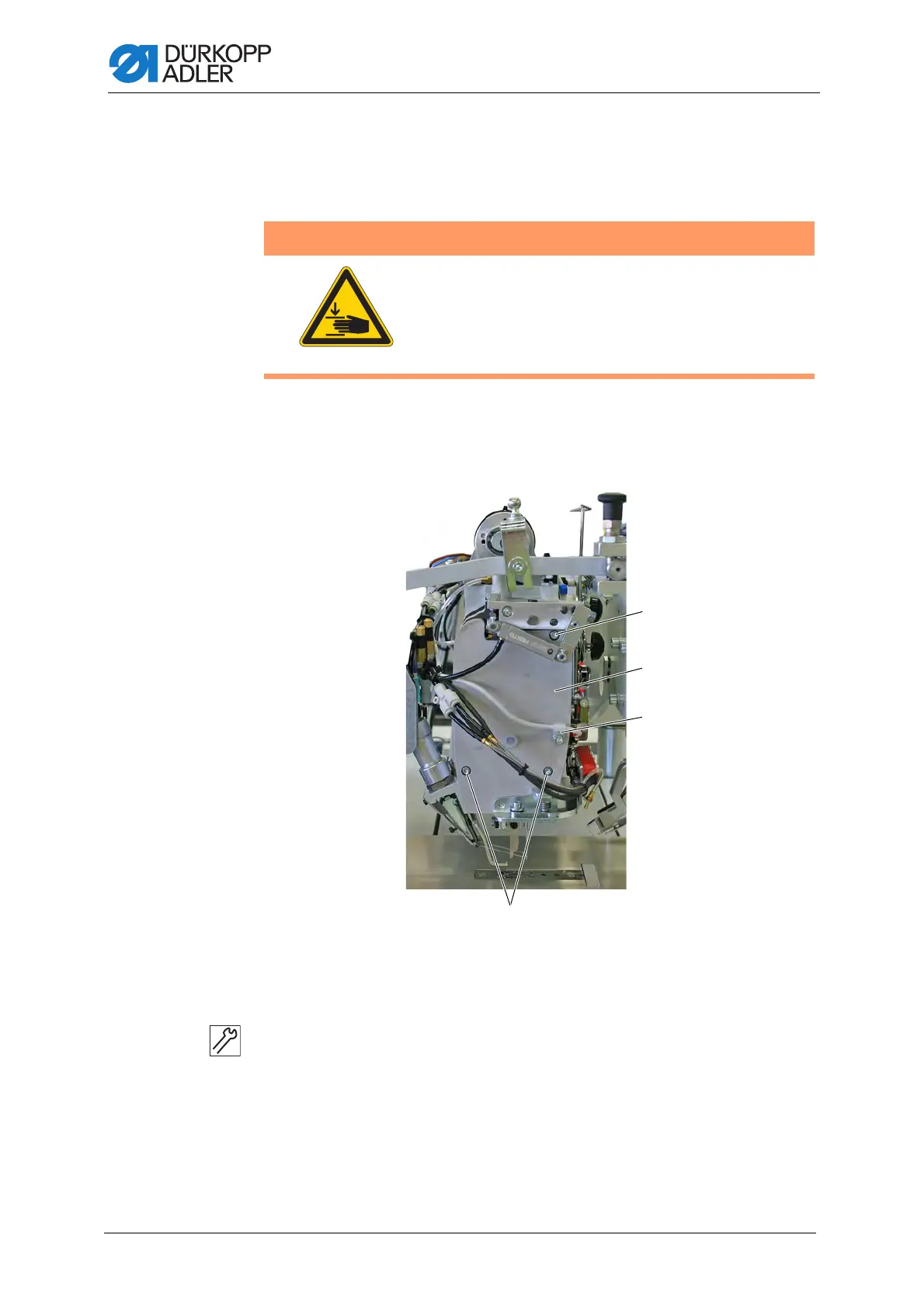

Fig. 16: Removing the head cover

To remove the head cover:

1. Loosen the screw (1).

2. Carefully loosen the clamp for the needle thread monitor (3).

The needle thread monitor may become damaged.

3. Remove the head cover (2).

WARNING

Risk of injury from moving parts!

Crushing possible.

Only remove the needle bar linkage when the

machine is switched off.

(1) - Screws

(2) - Head cover

(3) - Clamp for the needle thread moni-

tor

①

②

①

③
