Folder
Service Instructions 745-35-10 S/745-35-10 A - 02.0 - 04/2017 139

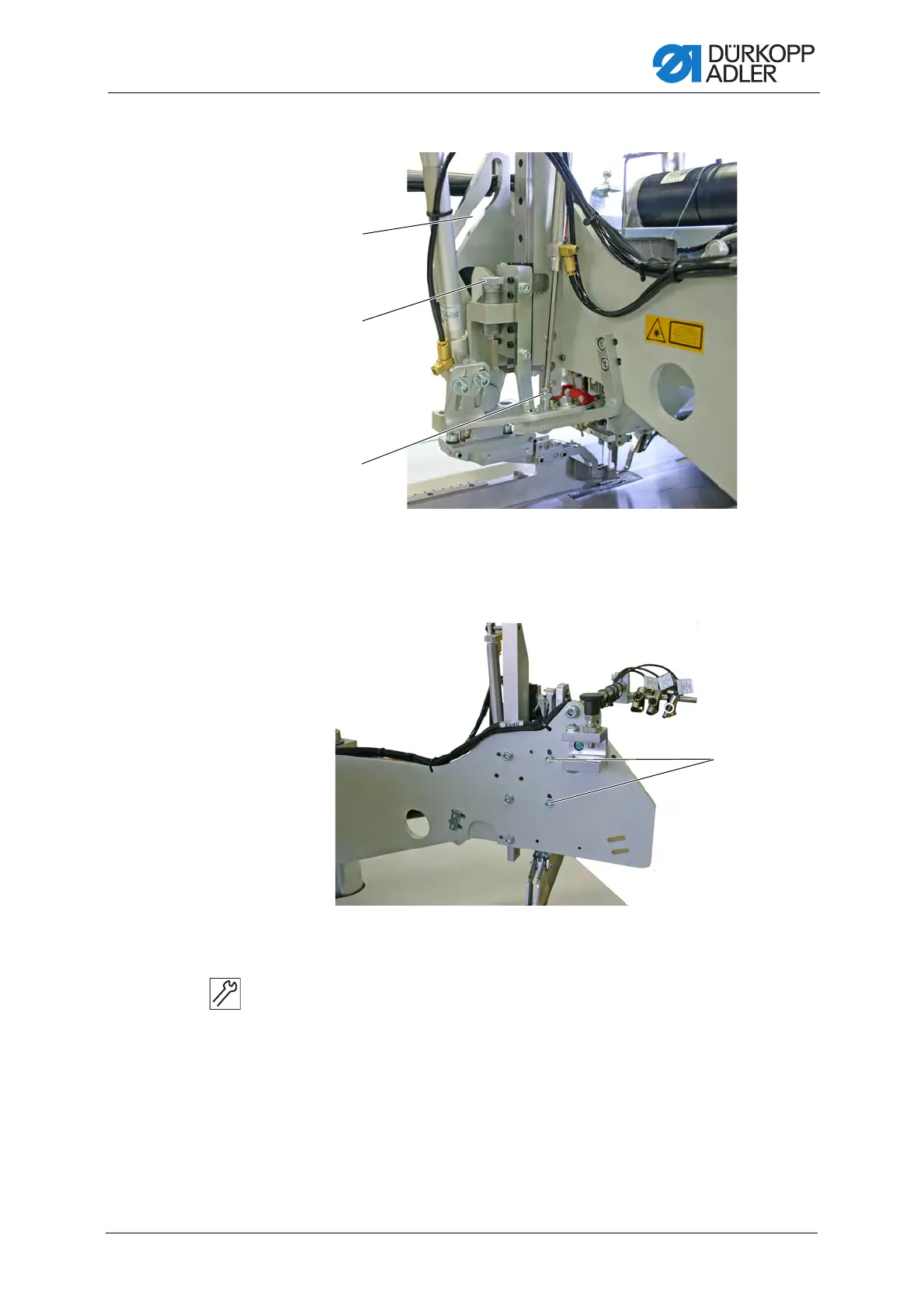

Fig. 120: Setting the stroke movement of the folder (2)
Fig. 121: Setting the stroke movement of the folder (3)
To set the stroke movement for the folder:
1. Loosen the screws (6).
2. Shift the plate cam (2) in the slotted holes.
3. Tighten the screws (6).
4. If necessary, turn the joint head (5) on the piston rod of the cylinder.
If the folder collides with the swivel arm of the reflected light barriers
( p. 115) when swinging out, the plate cam (2) must be readjusted.
(3) - Guide groove
(4) - Screw
(5) - Joint head
(6) - Screws
