Programming

Service Instructions 745-35-10 S/745-35-10 A - 02.0 - 04/2017 227

Programming loading process

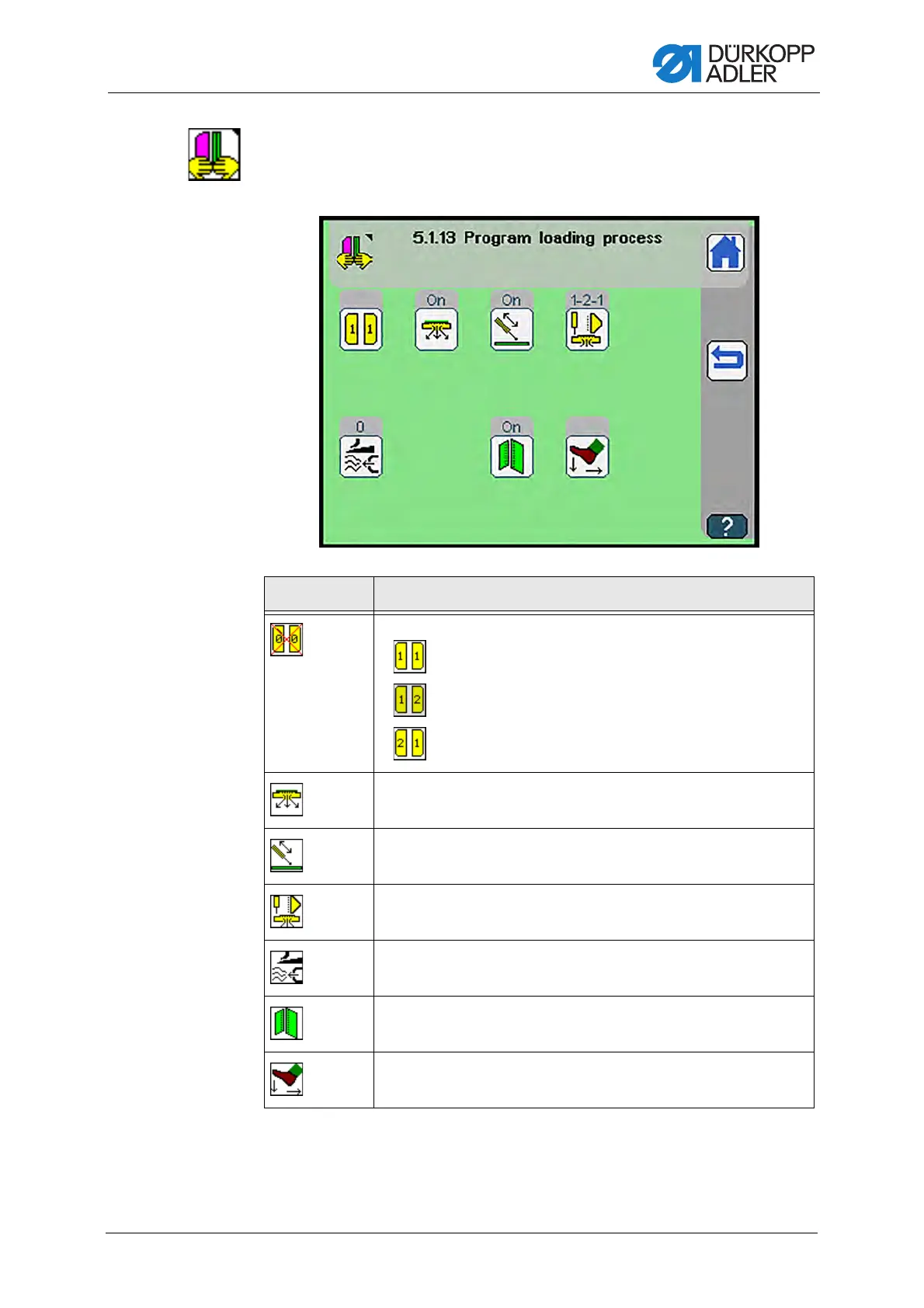

 The display switches to Program loading process.

Fig. 198: Program loading process

Symbols Meaning

Select flap clamps

• Both flap clamps close together

• Left flap clamp closes first

• Right flap clamp closes first

Vacuum On/Off

Downholder On/Off

Select downholder mode (745-35-10 A only)

Select blowing mode (745-35-10 A only)

Breast welt mode On/Off (745-35-10 A only)

Select pedal mode
