Programming

Service Instructions 745-35-10 S/745-35-10 A - 02.0 - 04/2017 241

Selecting needle distance

 The display switches to Select needle distance:

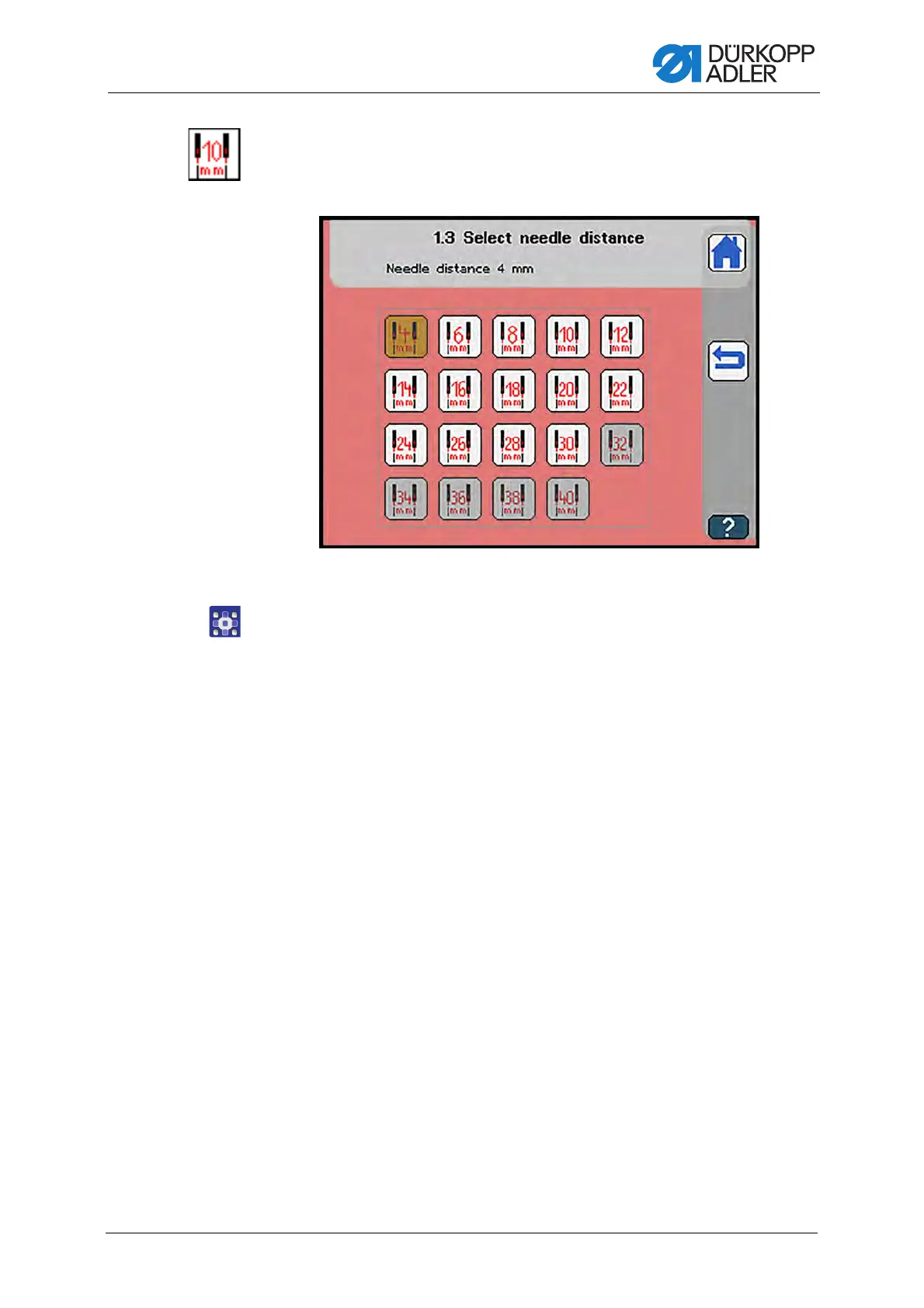

Fig. 206: Select needle distance

To select the needle distance:

1. Select the desired needle distance.
