Programming

Service Instructions 745-35-10 S/745-35-10 A - 02.0 - 04/2017 245

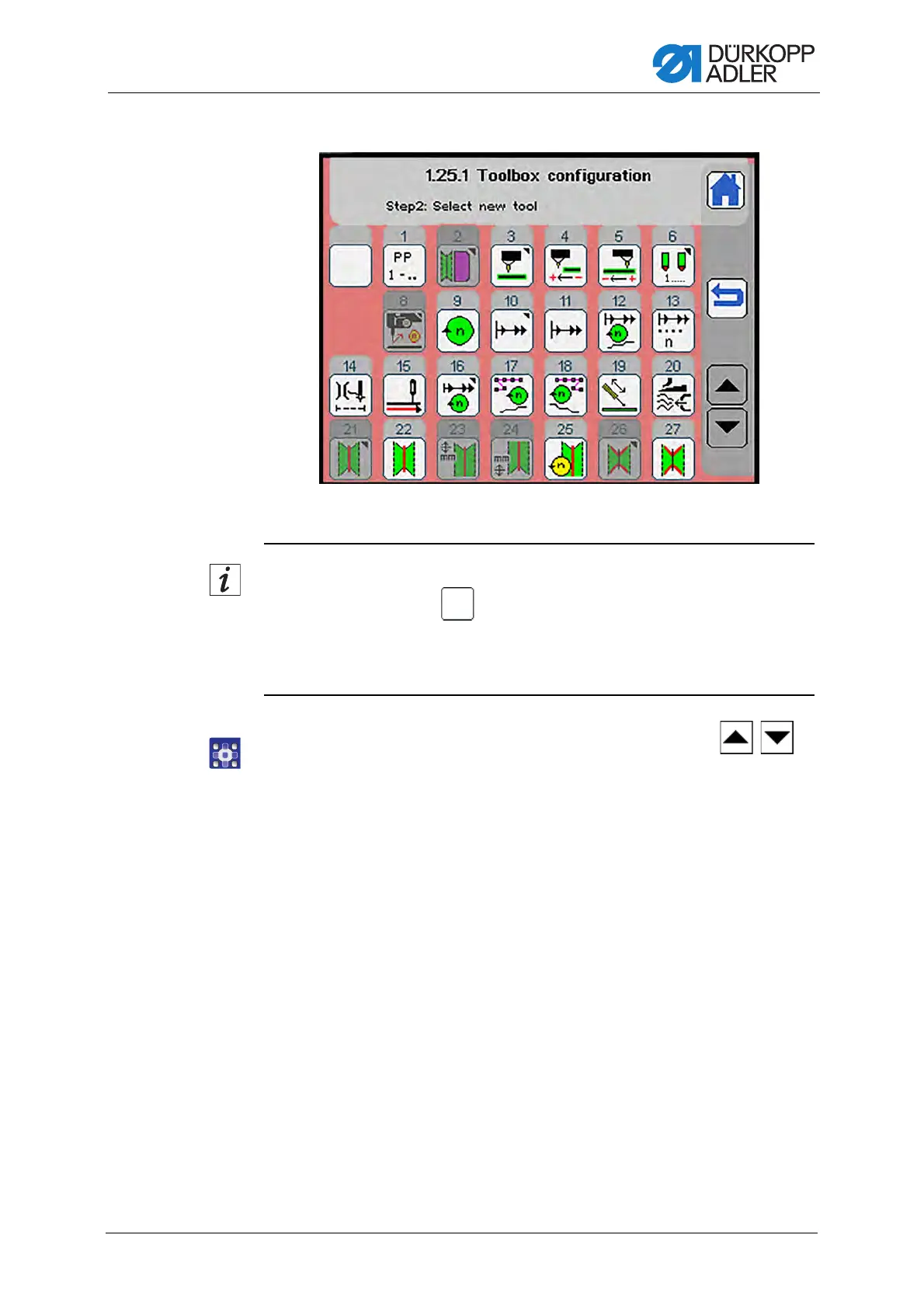

Fig. 210: Toolbox configuration (2)

Information

You can use the button to remove a previously selected tool from the

toolbox again.

Tools already in use are grayed out.

2. To navigate up and down the list, use the arrow buttons .

3. Press the selected tool to select it.

 The display returns to Machine config.
