Edwards GXS Series

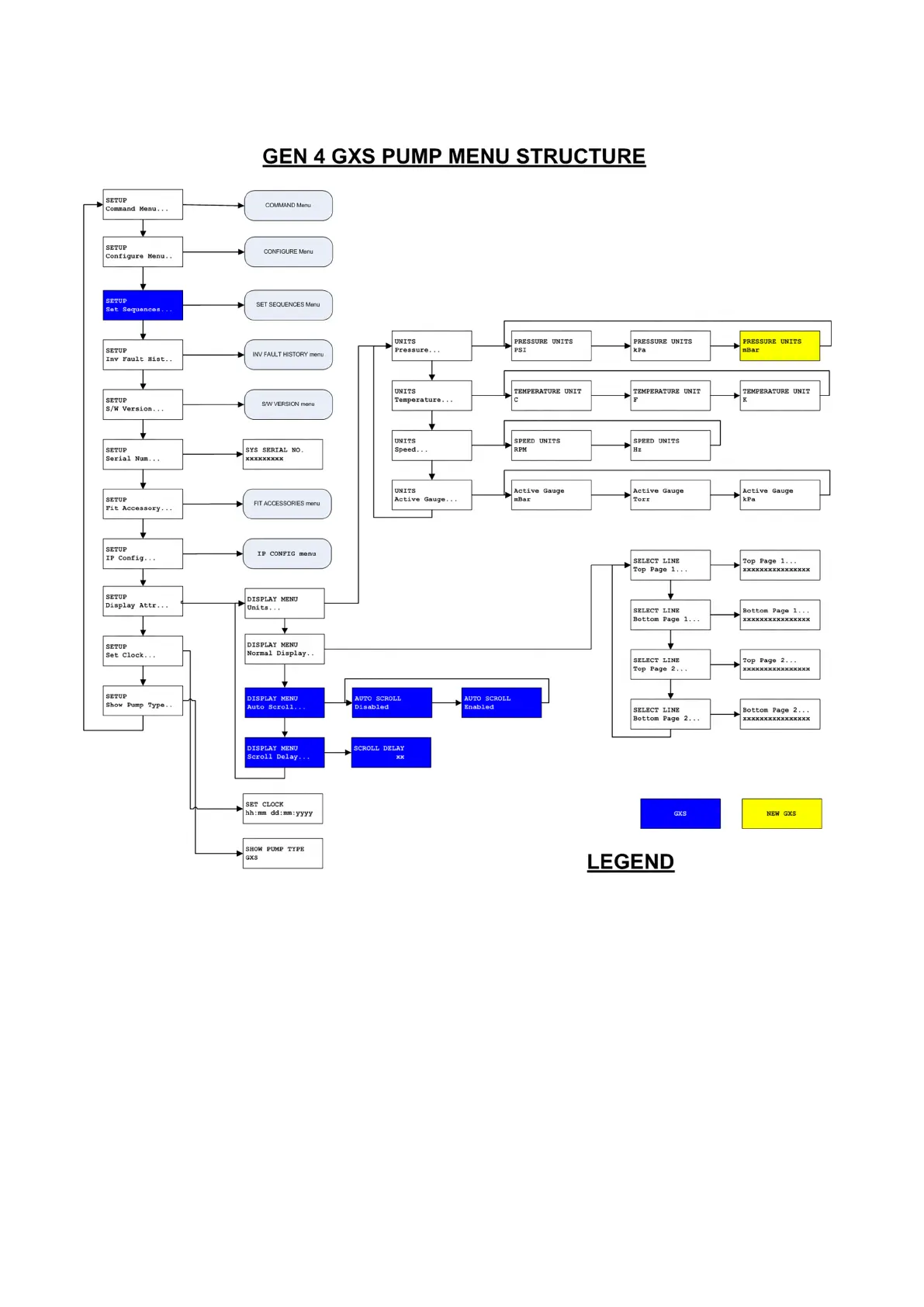

Figure 57 PDT menu items
9.5.1 Seng the status screen to automacally scroll
The status display can be made to automacally scroll through its display items using the
auto scroll menu item. The delay between refreshes is set using the scroll delay menu
item.
9.5.2 Change the normal menu display
The normal display on the PDT can be customised to display any status item. The normal
display consists of two pages each of two lines so there are four congurable lines.
When in the select parameter menu the boom line of the display shows what will be
displayed if that opon was selected.
Page 134
M58800880_H - Pump display terminal
