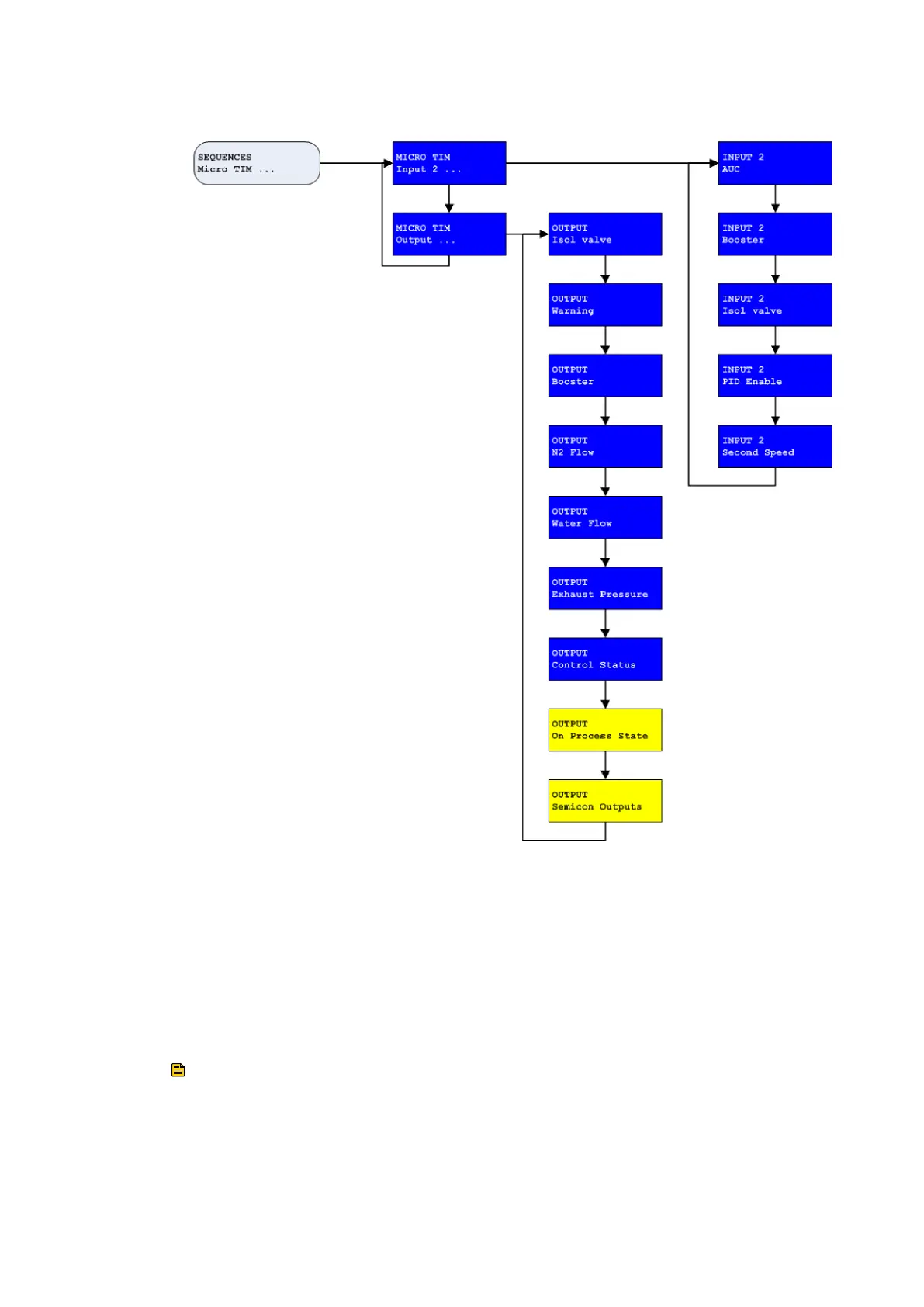

Figure 75 MicroTIM opons menu
9.14.1 Conguring the channel 2 input
By default, the MCM MicroTIM channel 2 input is congured to control the green mode/
standby mode for the system but the user has the opon of seng input 2 to turn the
booster on/o, operate the inlet isolaon valve, enable the PID or enable the second
speed.
From the MicroTIM menu, select Input 2... and then scroll down the menu and press
ENTER to select the input of choice.
Notes:
1. Only one input opon can be acve at a me.
2. If using channel 2 to control the booster, the booster will not start unless the dry pump
is on. This input is ignored if the system does not have a booster.
