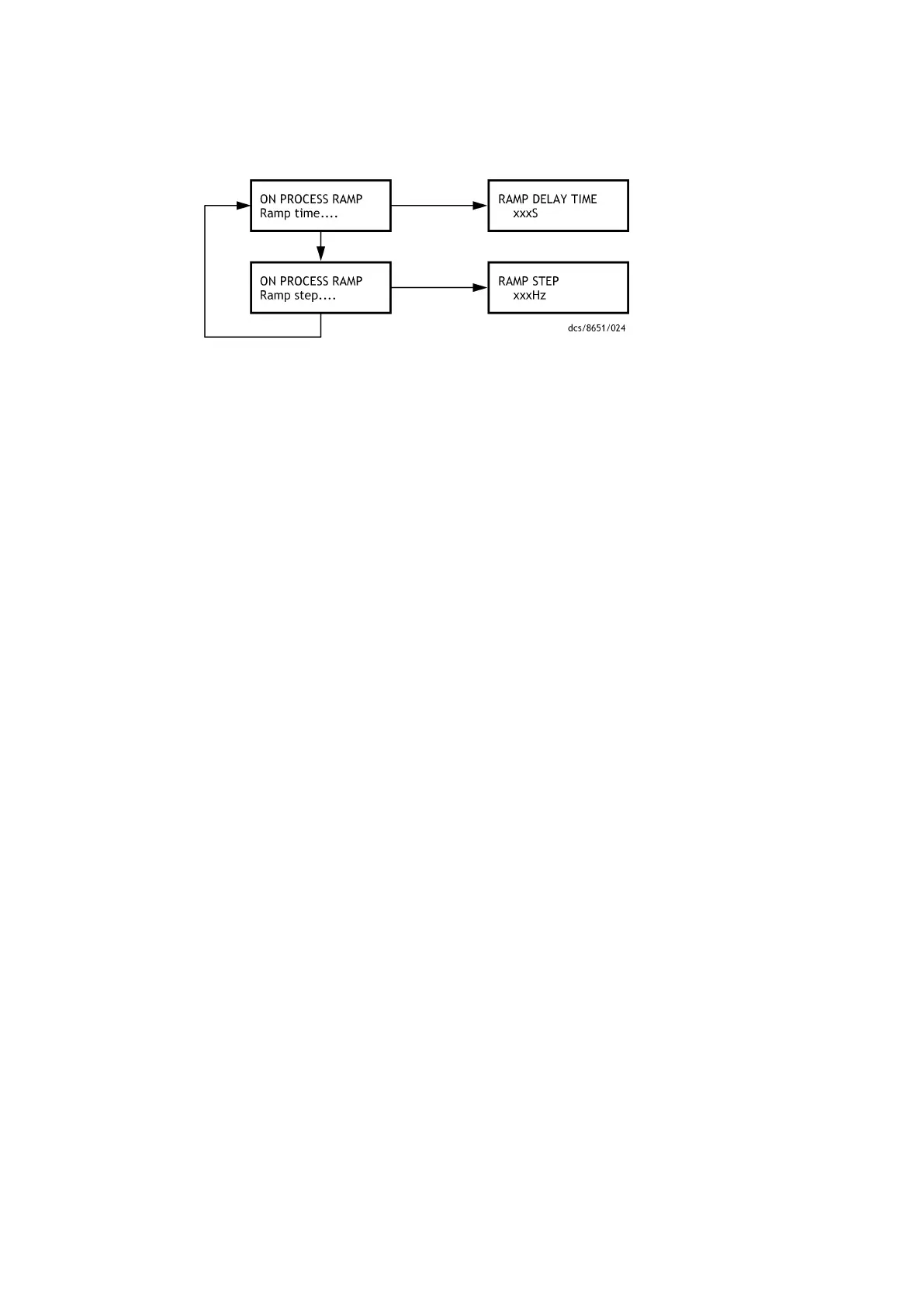

Figure 62 On-process ramp PDT menu conguraon items
On‑process ramp is enabled by seng a ramp delay me greater than zero. This me is
the me delay between the pump speed increases. The ramp step size determines the
size of each step. The pump speed will not exceed the maximum allowed pump speed.
9.9 How to set up the DP clean
The DP clean set sequence can be used to clean the dry pump of systems that are ed
with the high ow purge and solvent ush kit.
Before using DP clean, ensure that the high ow purge and solvent ush kit is set up as
described in High ow purge and solvent ush set up on page 51. Also, refer to Dry pump
clean on page 63.
The DP clean process is run while the dry pump is in Green mode/standby mode. By
default, the DP Clean runs for 20 minutes with the dry pump running at 80 Hz with no
inlet purge.
The following ow chart shows the funconal behaviour of dry pump clean:
Page 141
M58800880_H - Pump display terminal
