EPS-16 PLUS Musician's Manual Section 7 — Voice Parameters

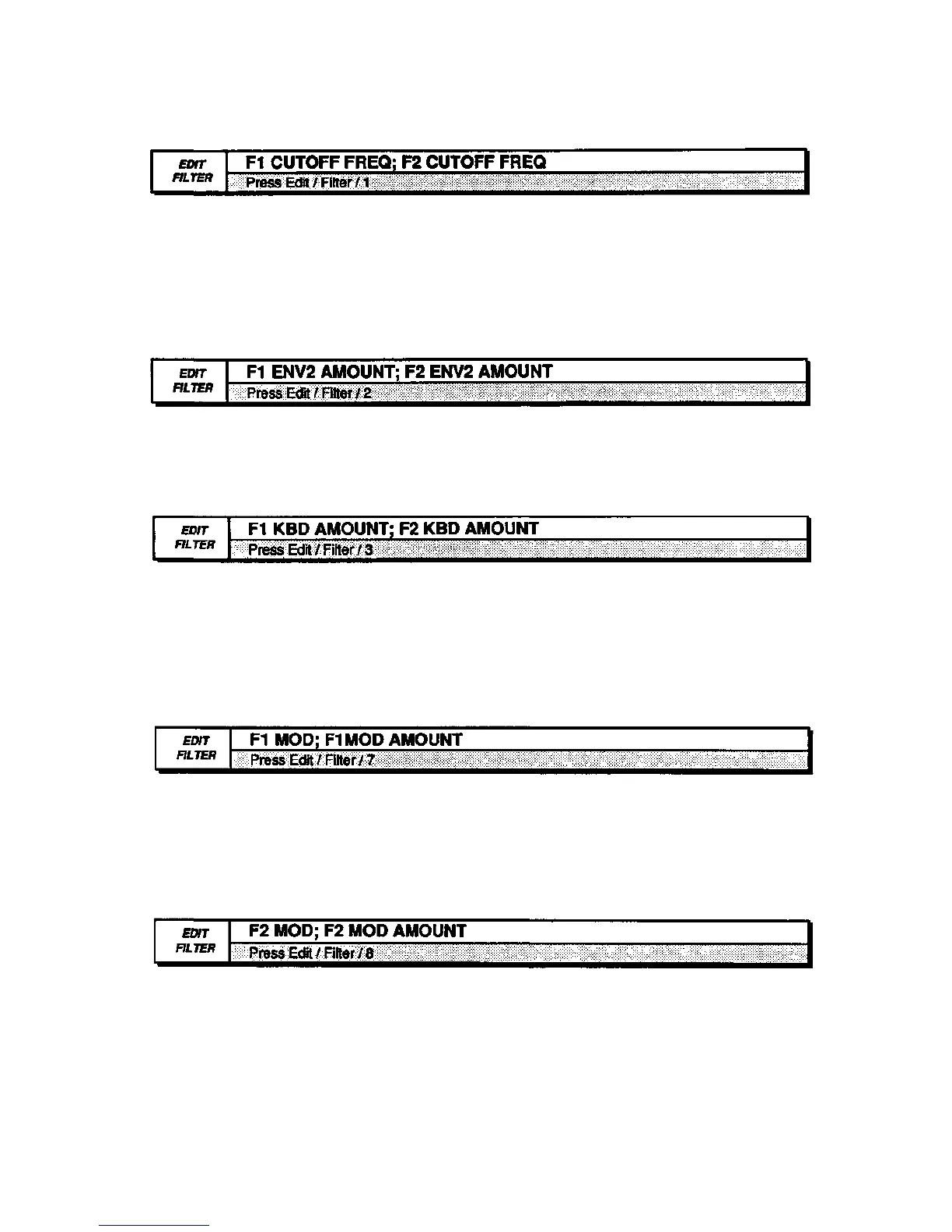

This parameter allows you to set the initial filter cutoff frequency. With a low-
pass filter, a setting of 127 lets all the original signal pass through the filter. With
a high-pass filter, a setting of 0 lets through all of the original signal. This setting
represents the "filter floor." The effect of any selected modulators will be added
to (or subtracted from) this level.
Range: 0 to 127
Use this parameter to set the depth or amount by which Env 2 will modulate the
filters. Modulation amounts can be positive or negative.
Range: -99 to +99
This parameter sets the amount by which the location of a note on the MIDI
keyboard connected to the EPS-16 PLUS will modulate the filter cutoff
frequency (keyboard filter tracking). This allows the relative brightness of a
sound to remain constant over the keyboard. To track the keyboard exactly you
should set KBDAMT to +50.
Range: -99 to +99
Use this page to assign a modulator to the filter one as well as the amount of
effect that modulator will have. Any of the fifteen available modulators can be
applied to modulate the Filter 1 cutoff frequency. Modulation amounts can be
positive or negative.
Range: -99 to +99
This parameter serves the same function as F1 MOD; F1 MOD AMOUNT, but
controls filter two. It operates in an identical fashion. Any of the fifteen available
modulators can be applied to modulate the Filter 2 cutoff frequency.
EDIT/Filter Page
7 - 23
