5. Replacing the Motors Part 2: Maintenance
120

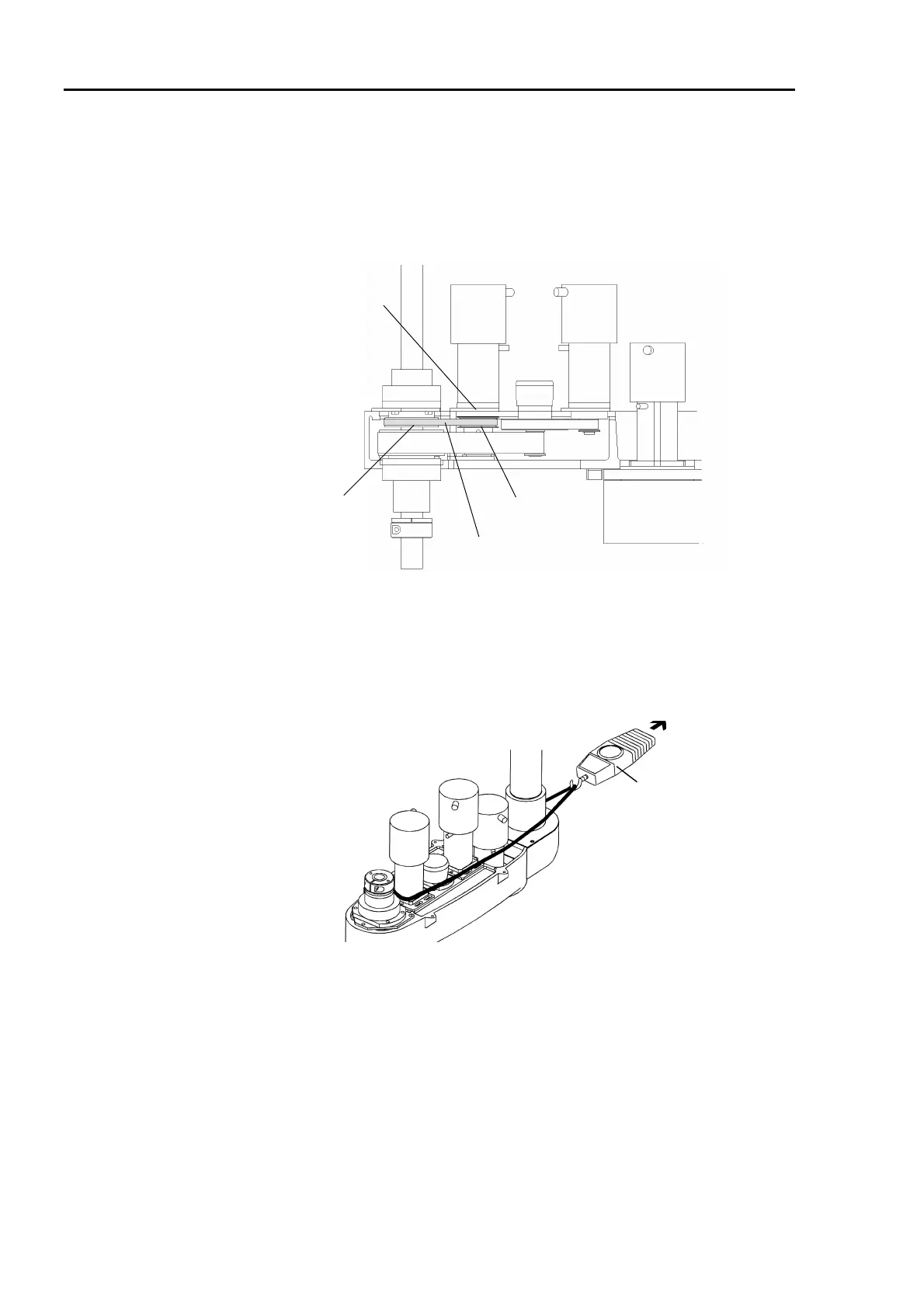

(8) Place the Z belt around the Z1 and Z2 pulleys. Ensure that the gear grooves of the
belt and pulleys engage properly. Be careful not to slip the Z belt from the pulleys
while maintaining proper interval between the pulleys. Fasten the Joint #3 motor plate
for the time being with four bolts (M4
×
10).
Z1 pulley
Z belt
Z2 pulley
Motor plate
(9) Pass a cord or string around the Joint #3 motor near its mounting plate. Loosen the
bolts for the Joint #3 motor plate fastened in the step (8) and pull the cord by a force
gauge or similar tool. Fasten the Joint #3 motor plate securely where the Z belt is
pulled at 29.4N (3kgf). Adjust in the range of 20N - 39N (2kgf - 4kgf).
Force gauge
(10) Connect the connectors, X131, X31 and X32.
(11) Fasten the motor cables with wire ties in their original positions. Do not allow
unnecessary stain on the cables.
To Next Page
