Part 2: Maintenance 5. Replacing the Motors
123

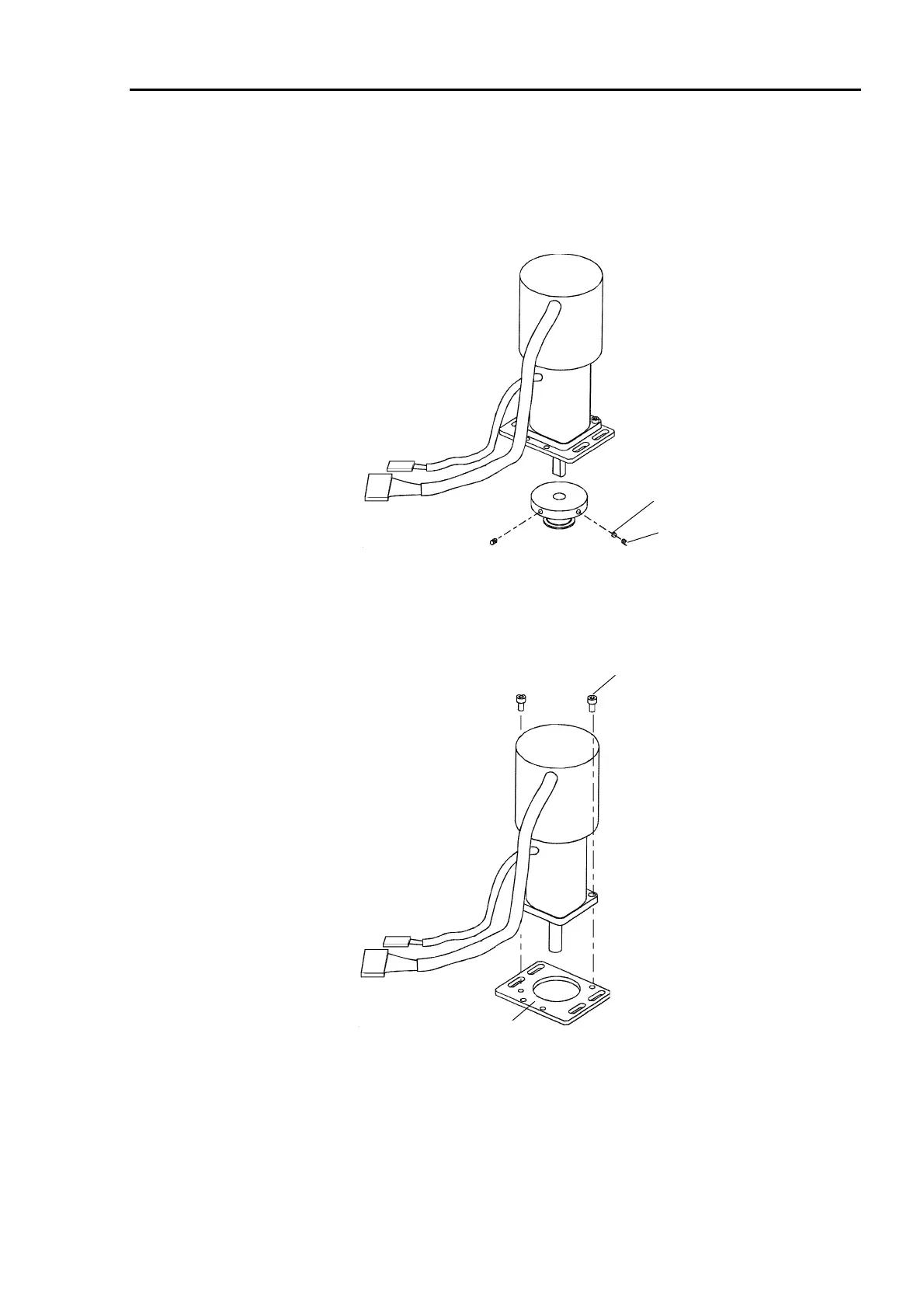

(5) Using a hexagon head wrench in the screw holes of the pulley, remove the two flat
point setscrews (M4×8) that secure the pulley to the motor shaft. Remove the pulley
from the motor. One of the setscrews has a brass bush inside which must not to be
lost.
Bush
M4
×
8 flat point setscrew
(6) Remove the two bolts (M4
×
8) from the motor and remove the motor plate.
M4
×
8
Motor plate
