7. Replacing the Brake Part 2: Maintenance
152

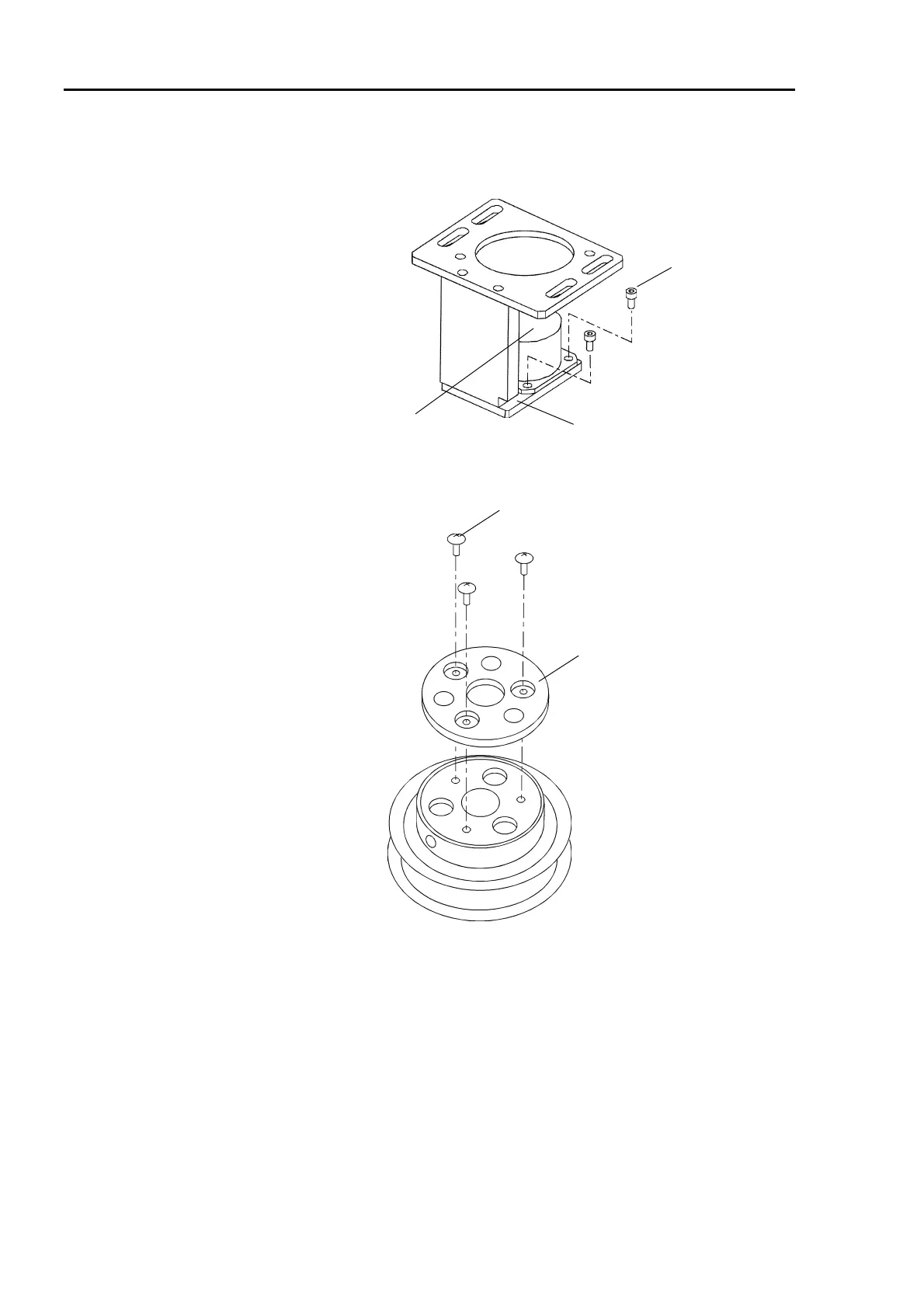

(4) Remove four bolts (M3×5) that fasten the brake to the brake plate, then remove the
brake from the brake plate.
Brake
Brake plate
M3
×
5
(5) Remove the rotor hub from the end of the pulley. (3-M2×3 machine screw)
Rotor hub
M2×3
